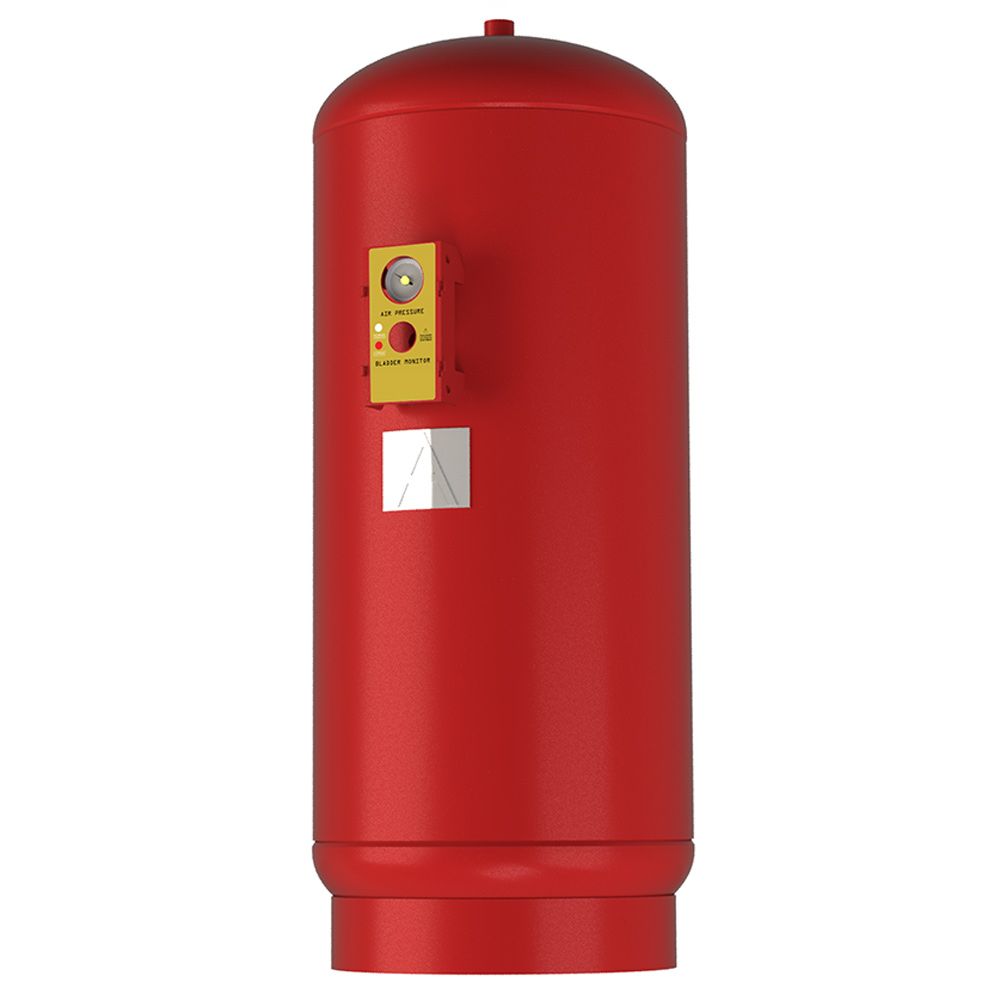

Bell & Gossett 1BN346LF PTA-5 ASME Diaphragm Expansion Tank 3.5 Gallon

Product Description

The Bell & Gossett 1BN346LF model PTA-5 is an ASME-rated diaphragm-type expansion tank designed for effective water pressure management. This tank offers a volume of three point five gallons and an acceptance volume of two point three gallons. The PTA series is engineered to prevent excessive pressure build-up in domestic water systems.

• ASME certification ensures compliance with industry standards.
• Constructed with a robust butyl diaphragm and polypropylene liner.
• Equipped with an integrated bladder integrity monitor for reliability.

Product Highlights

These tanks are perfect for HVAC applications and home water systems, providing reliable pressure relief and protection against pressure fluctuations.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 1BN346LF

Technical Specifications

• Tank Series: Series PTA
• Model: PTA-5
• Tank Type: Diaphragm
• Tank Volume: 3.5 Gallon
• Acceptance Volume: 2.3 Gallon
• Tank Installation Position: Vertical
• Tank Code: ASME
• Construction: Carbon Steel
• Maximum Pressure: 150 PSI
• Weight: 22.00
