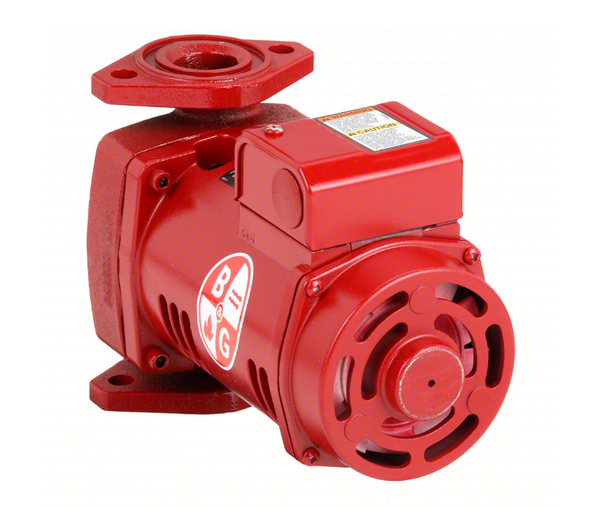

Bell & Gossett 1BL032LF PL-55 Pump 2/5 HP Motor

Product Description

The BELL & GOSSETT 1BL032LF PL-55 Pump with a 2/5 HP motor is designed for hydronic heating and cooling in closed loop systems. This model is permanently lubricated and operates at 3250 RPM with a 115V single phase motor. It is suitable for residential and light commercial heating and potable water systems.

• Dry-motor design delivers exceptional performance
• 25% more efficient than competition
• Precision-machined and balanced alloy steel rotor for superior performance

Product Highlights

Advanced design increases pump life and efficiency, ensuring dependable seasonal start-ups and handling difficult water conditions.

Product Information

Standard Information

• Brand: BELL & GOSSETT
• Manufacturer Part Number: 1BL032LF

Technical Specifications

• Maximum Working Pressure: 150 PSI (10.3 bar)
• Maximum Operating Temperature: 225*F (107*C)
• Model No.: PL-55
• HP: 2/5
• GPM: 0-50
• RPM: 3250
• Volts: 115
• Amps: 4.7
• A: 9-9/16"
• B: 6-3/8"
• C: 7-15/16"
• D: 4-3/16"
• E: 4-3/4"
• Construction: Cast Iron
• Flange Size: 3/4", 1", 1-1/4", 1-1/2" NPT
