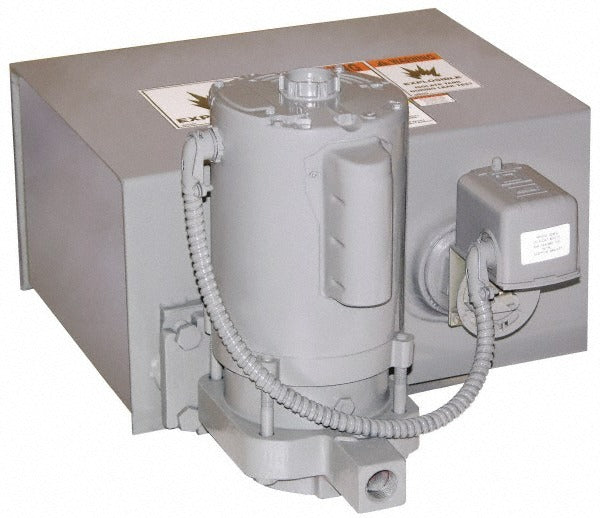

Bell Gossett 160029 Simplex Condensate Pump 6 Gal 9 Gpm

Product Description

The BELL GOSSETT 160029 is a simplex condensate pump designed to collect and discharge condensate in HVAC and steam heating systems. Operating on 115 volts, this unit features a 6-gallon tank capacity and delivers a flow rate of 9 GPM, making it suited for commercial and light industrial condensate return applications. At 145 pounds, the unit is a substantial assembly intended for permanent installation by licensed HVAC or plumbing technicians. It handles the removal of condensate generated by boilers, heat exchangers, air handlers, and similar equipment where gravity drainage is not feasible.

This condensate pump is typically installed in mechanical rooms where condensate from steam or HVAC systems must be pumped to a drain or return line. The simplex configuration uses a single pump assembly, making it appropriate for applications where continuous-duty condensate removal is required but redundancy is not mandatory. The 6-gallon tank provides adequate surge capacity for moderate condensate loads in commercial buildings or larger residential systems.

Key Features

• 6-gallon tank capacity provides surge buffer for moderate condensate volumes
• 9 GPM flow rate supports steady condensate return in commercial applications
• 115-volt operation compatible with standard single-phase power supply
• Simplex design simplifies installation and maintenance in mechanical rooms
• Sized for permanent installation in boiler and air handler condensate return systems

Compatibility

Designed as an OEM-style simplex condensate pump unit for commercial HVAC and steam heating condensate return systems requiring 115-volt single-phase power and a 6-gallon receiver tank.

Installation Notes

Installation should be performed by a licensed HVAC technician or plumber in accordance with local mechanical codes and the applicable sections of the International Mechanical Code. Disconnect and lock out all electrical power and isolate the condensate piping before beginning installation or service work. Ensure the unit is mounted on a level surface capable of supporting the operating weight of the assembly including a full tank of condensate. Do not operate the pump dry or without proper discharge piping connected.
