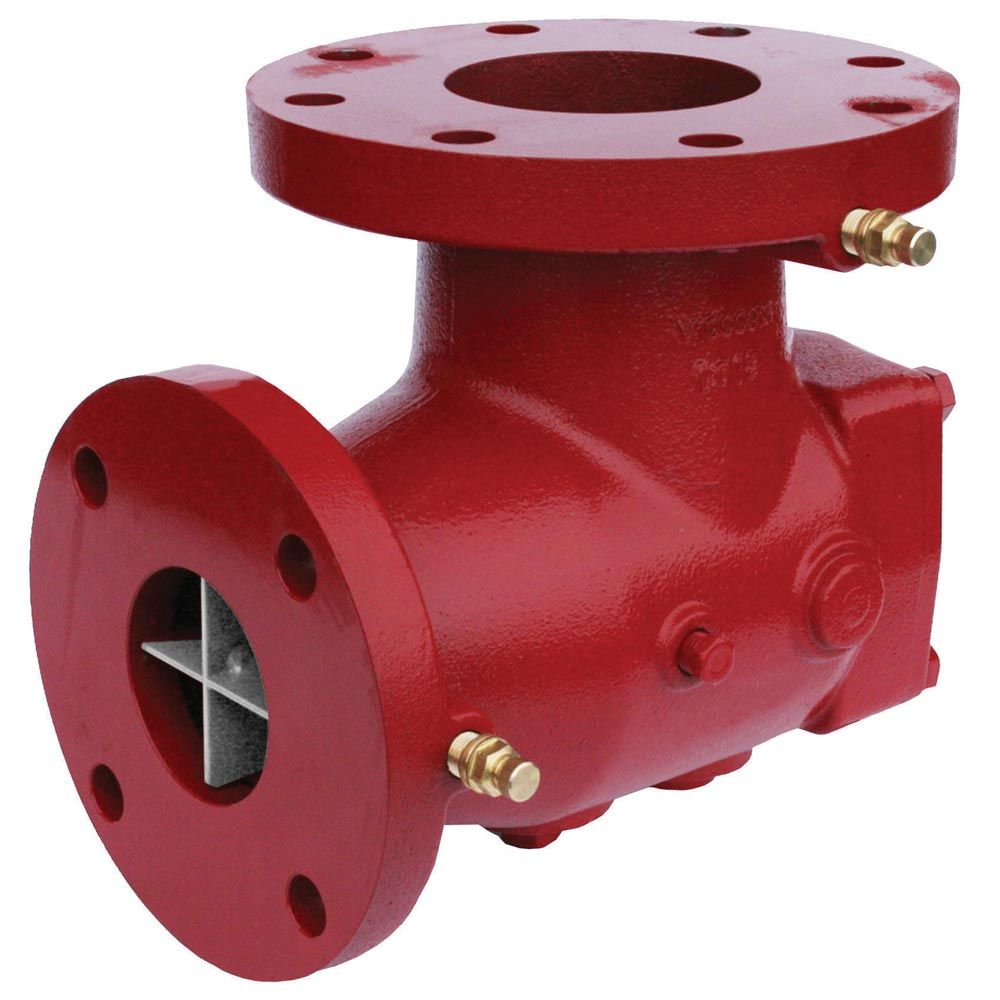

Bell & Gossett 115123 Suction Diffuser 6 x 4 Flanged 115028

Product Description

The Bell & Gossett 115123 is a suction diffuser designed for high performance. This model has a six-inch flanged connection on the system side and a four-inch flanged connection for the pump side. It is made of cast iron and is built to withstand a maximum pressure of one hundred seventy-five psi. With a maximum operating temperature of two hundred fifty degrees Fahrenheit, it is suitable for various heating and cooling applications.

• Connection sizes: six inch and four inch.
• Body material: cast iron.
• Max pressure: one hundred seventy-five psi.

Product Highlights

The Bell & Gossett suction diffuser conditions flow into the pump suction, ensuring high efficiency. It also minimizes the need for straight pipe lengths, thus saving space in installations. Its removable internals simplify field servicing.

Product Information

Standard Information

• Brand: Bell & Gossett
• Manufacturer: Xylem

Technical Specifications

• MPN: 115123
• Model: GE-3X
• Valve Type: Suction Diffuser
• Connection Size: 6 x 4
• Connection Type: Flanged
• Piping Configuration: Angle
• Body Material: Cast Iron
• Max Pressure: 175 psi
• Max Temp: 250°F
• UPC: 683328237596
• Replaces: 115028
• Alias: 115423
• Weight: 105.00
