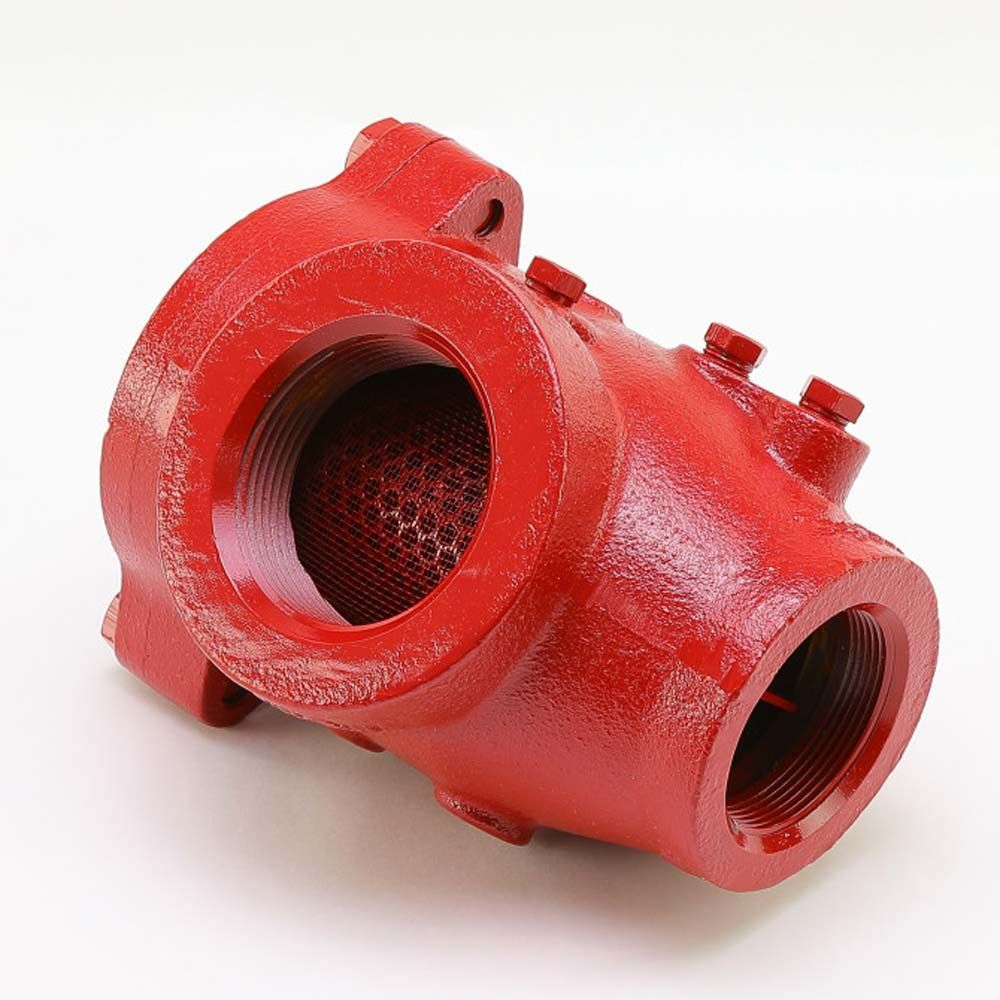

Bell & Gossett 115115 CB-3X Suction Diffuser Plus 2-1/2 x 2 NPT

Product Description

The Bell & Gossett 115115 CB-3X suction diffuser features a two and a half inches by two inches National Pipe Thread (NPT) connection. The device has a cast iron body designed for durability and strength. It is rated for a maximum working pressure of one hundred seventy-five psi and can operate at temperatures up to two hundred fifty degrees Fahrenheit.

• Max working pressure: 175 psi
• Max operating temperature: 250 degrees Fahrenheit
• Connection sizes: 2-1/2 inches x 2 inches NPT

Product Highlights

This suction diffuser optimizes pump performance by conditioning flow into the pump suction. Its design facilitates a compact setup to save space while preventing large debris from entering the pump.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 115115

Technical Specifications

• Model: CB-3X
• Valve Type: Suction Diffuser
• Body Material: Cast Iron
• Piping Configuration: Angle
• Replaces: 115037, 115737
• Weight: 16.00 lbs
