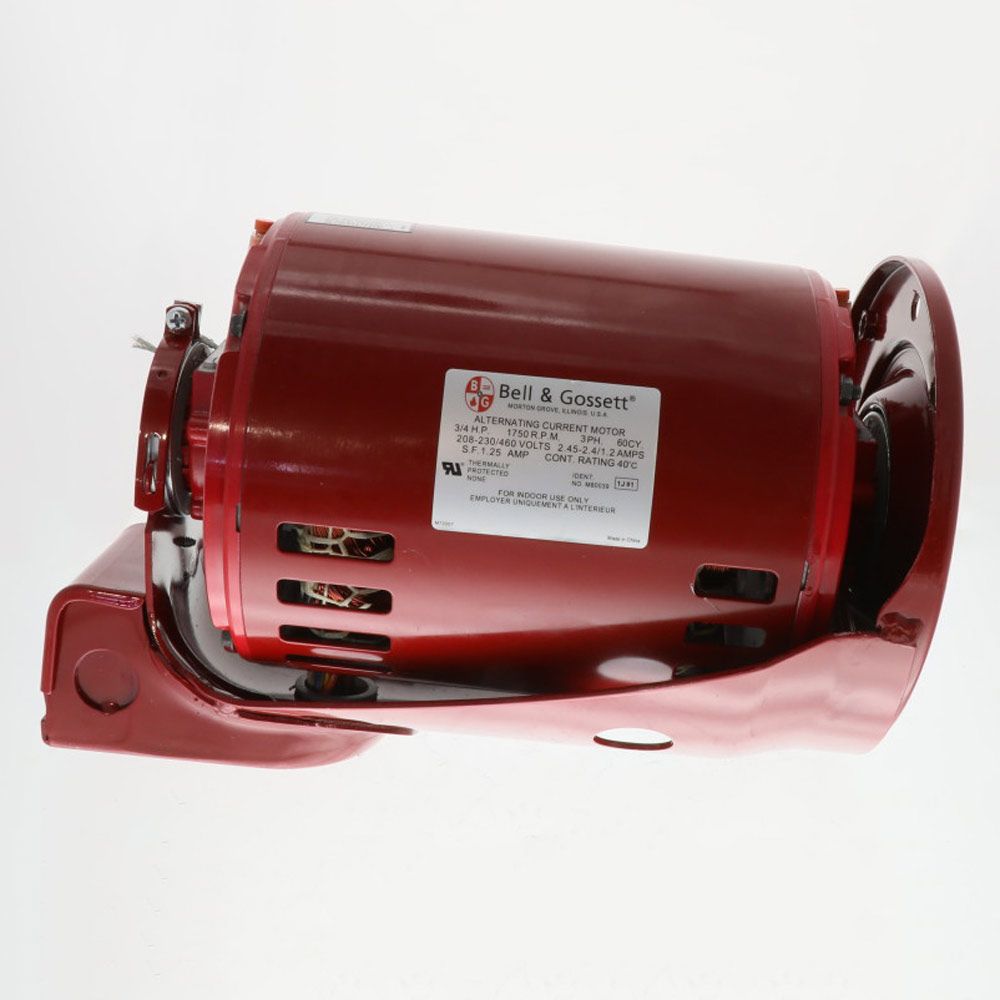

Bell & Gossett 111049 Motor 3/4 HP 208/230/460V 3-Phase

Product Description

The Bell & Gossett 111049 is a high-performance motor rated at 3/4 horsepower, suitable for three-phase operation across 208 to 460 volts AC. Designed for reliable and efficient functioning in demanding industrial applications, this motor is engineered to power a wide range of devices such as pumps, compressors, and HVAC systems. It operates at a maximum speed of 1725 RPM and is enclosed in a resilient open-type casing to ensure durability in harsh conditions.

• Three-phase, high-efficiency motor increases operational reliability.
• Supports voltages from 208 to 460 volts AC, providing versatility in setup.
• Robust construction with a resilient base mount and sleeve bearings for prolonged life.

Product Highlights

This Bell & Gossett motor is optimized for performance across various voltages and features a built-in thermal overload protector to prevent overheating, enhancing safety and efficiency.

Product Information

Standard Information

• Horsepower: 3/4 hp
• Phase: 3

Technical Specifications

• Voltage: 208/230/460V
• Amperage: 2.45 to 2.4/1.2 A
• Enclosure Type: Open
• Motor Speed: 1725 RPM
• Mounting Type: Resilient Base
• Bearing Type: Sleeve
• Frequency: 60 Hz
