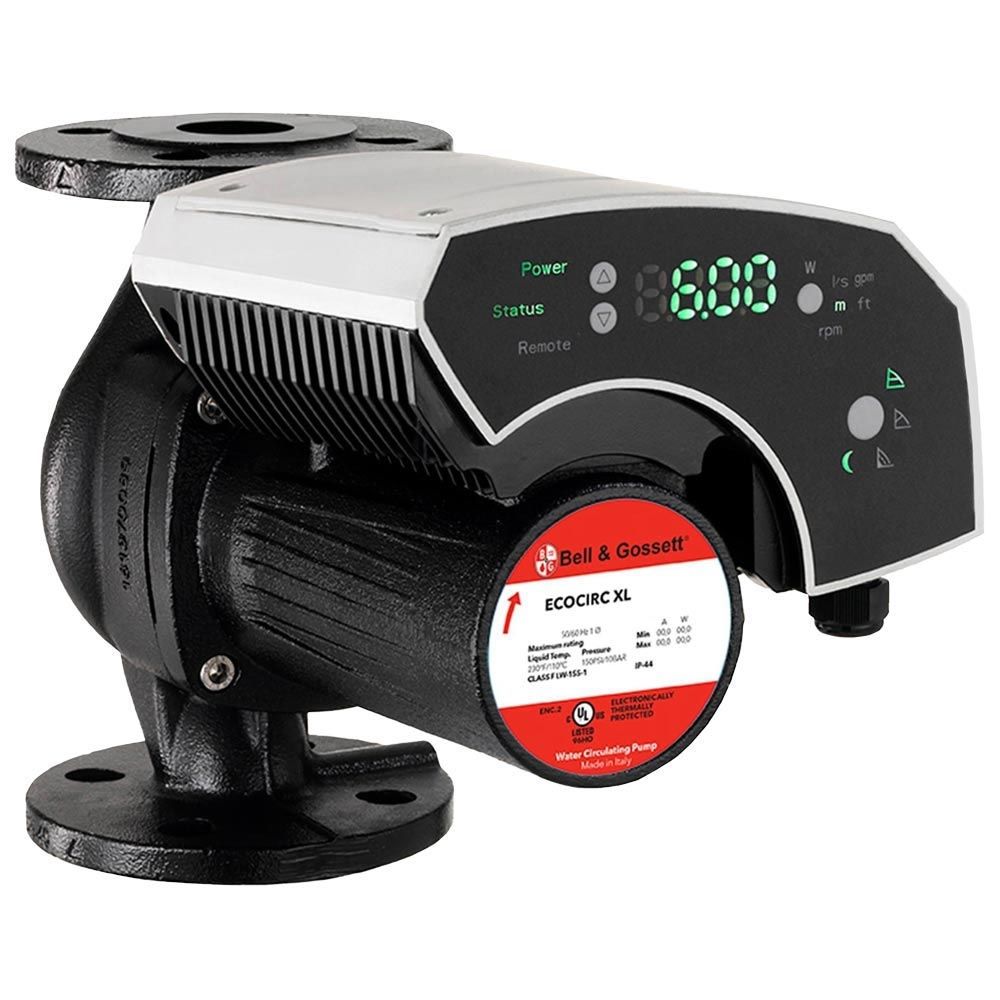

Bell & Gossett 104318 Ecocirc XL 40-275 Cast Iron Circulator, 2 HP, 208-230V

Product Description

Upgrade your commercial HVAC and plumbing systems with the Bell & Gossett 104318 Ecocirc XL 40-275 Cast Iron Circulator. This robust circulator features a 2 HP motor and operates at 208-230 volts, ensuring optimal performance in demanding environments.

• High-efficiency ECM motor minimizes energy consumption.
• Electronically commutated technology enables superior operational control.
• Dual-phase capability accommodates both single and three-phase power supplies.

Product Highlights

The Ecocirc XL circulator is engineered to support both heating and cooling applications, making it a versatile choice for a diverse range of system types. With a flow rate of 275 gallons per minute and a maximum head of 40 feet, it delivers consistent and reliable performance. Its intelligent controls and design geared for high durability and efficiency make it a top choice among professionals.

Product Information

Standard Information

• Manufacturer: Bell & Gossett
• MPN: 104318
• Series: Ecocirc XL

Technical Specifications

• Flow Rate: 275 gpm
• Maximum Head: 40 ft
• Power Rating: 2 HP
• Voltage: 208 to 230 V
• Phase: 1 ph
• Maximum Pressure: 175 psi
• Temperature Rating: 230 deg F
• Enclosure Type: Class 2 IP44/NEMA Type 2
