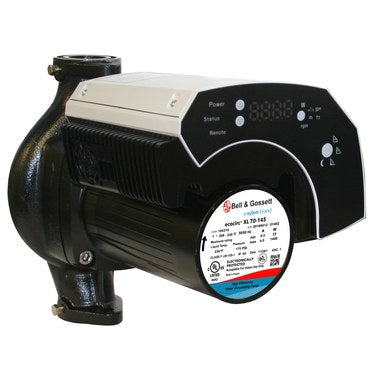

Bell & Gossett 104315 Ecocirc XL 70-145 Cast Iron Circulator Flanged 2 HP 208-230V

Product Description

The Bell & Gossett Ecocirc XL 70-145, part number 104315, is a robust cast iron circulator designed for commercial hydronic systems. Offering advanced motor design and intelligent controls, it is engineered to optimize efficiency and ensure reliable operation across a range of applications.

• Efficient ECM motor reduces operational costs.
• Operates effectively up to 230 degrees Fahrenheit with a maximum pressure of 175 psi.
• Intuitive user interface with multiple control options for easy operation.

Product Highlights

This circulator features state-of-the-art hydraulics and a high-efficiency, large wet rotor design. It's ideal for both HVAC and plumbing applications, particularly in settings requiring up to 145 gallons per minute flow rate. The ecocirc XL’s electronically commutated motor, combined with smart communication capabilities, ensures enhanced performance and durability.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 104315

Technical Specifications

• Model: Ecocirc XL 70-145
• Power: 2 HP
• Voltage: 208 to 230 V
• Amperage: 0.6 to 6 A
• Frequency: 50/60 Hz
• Phase: 1 ph
• Maximum Flow Rate: 145 gpm
• Maximum Head: 70 ft
• Enclosure Type: Class 2 IP44/NEMA Type 2
• Impeller Material: Poly-Phenylene Sulfide/Stainless Steel
