Bell & Gossett 103267 NRF-9F Low Watt (SIZE/QUANTITY/PACK/ANGLE) Replacement MPN

Product Description

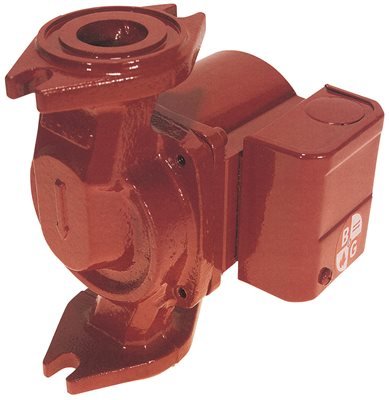

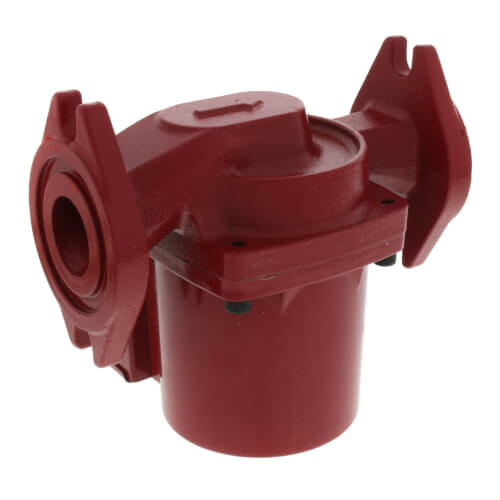

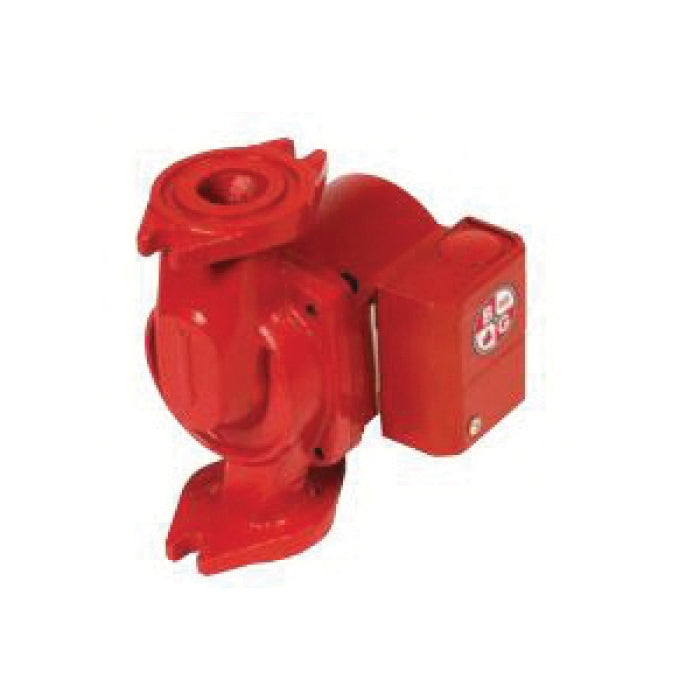

The ITT Bell & Gossett 103267 is a reliable, maintenance-free, in-line, wet rotor circulator pump. It operates on 115 volts AC and is designed for both residential and light commercial heating systems. This model has dimensions of six and three-sixteenths inches in length, five and one-eighth inches in width, and six and three-eighths inches in height. It is suitable for hydronic heating applications where efficient circulation of hot or cold water is required.

• Input supply rating of 0.4 amps at 60 hertz.
• Temperature range of forty to two hundred forty degrees Fahrenheit.
• Features a flanged x flanged end connection for easy installation.

Product Highlights

This circulator pump is built to withstand a maximum pressure of one hundred fifty PSI and operates at a speed of two thousand eight hundred RPM. It features a double sintered carbon bearing system and a closed impeller design for improved efficiency and longevity.

Product Information

Standard Information

• Brand: Bell & Gossett
• MPN: 103267

Technical Specifications

• Power Rating: 41 watts
• Motor Type: Lubricated with built-in thermal protection
• Discharge Size: Available in three-fourths inch, one inch, one and a quarter inch, and one and a half inch
• Casing Material: Cast iron
• Impeller Material: Noryl
• Temperature Rating: 40 to 240 degrees Fahrenheit
• Pressure Rating: 150 PSI
• Warranty: Three years from date of manufacture or eighteen months from date of installation
