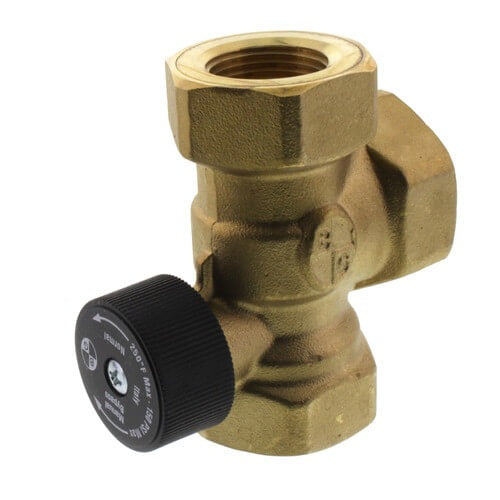

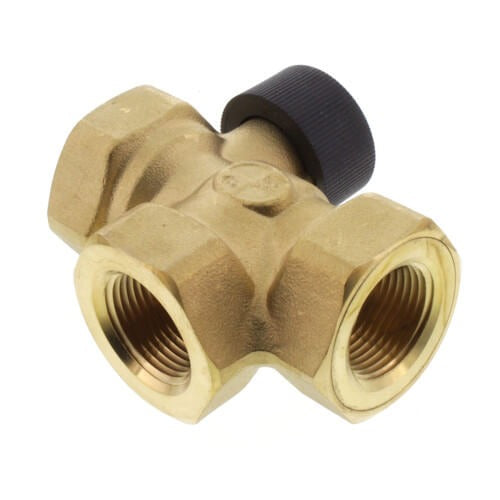

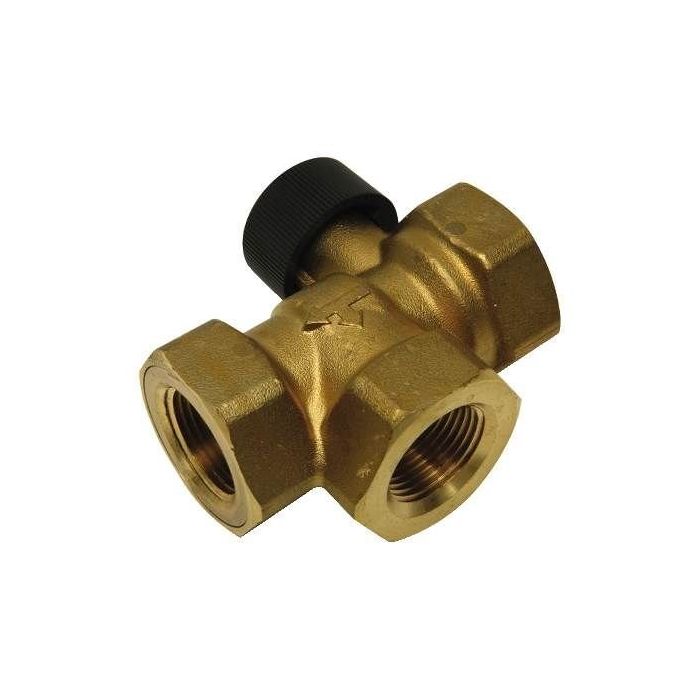

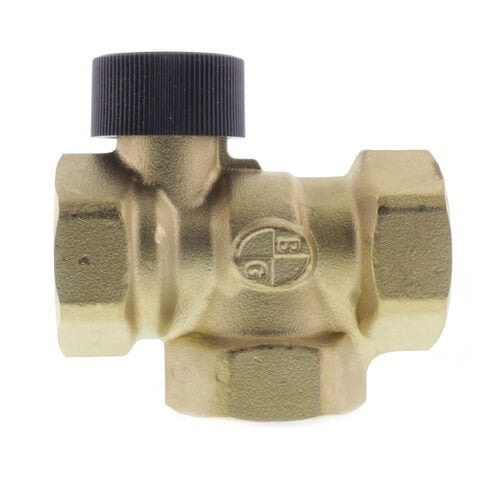

Bell And Gossett 107035 Hydrotrol Flow Control Valve (3/4 inch NPT)

Product Description

Bell and Gossett 107035 is a Hydrotrol flow control valve for hydronic heating systems that prevents gravity circulation and permits summer-winter operation of indirect water heaters. The bronze straight-angle 3/4 inch FNPT x FNPT valve uses an elastomer seal for positive shutoff, includes a plus-turn knob for draining or bypass, and can be installed vertically or horizontally. Maximum working pressure is 150 psi and maximum operating temperature is 250 F (121 C). Not for potable water use.

• 3/4 inch FNPT x FNPT threaded straight-angle bronze body; installs vertical or horizontal
• Maximum working pressure 150 psi (10 bar); maximum operating temperature 250 F (121 C)
• Elastomer seal for positive shutoff; plus-turn knob for manual draining or bypass; prevents gravity circulation

Product Highlights

3/4 inch Hydrotrol flow control valve; bronze body; 150 psi, 250 F; non-potable applications

Product Information

Standard Information

• Brand: BELL AND GOSSETT
• Manufacturer Part Number: 107035
• Country of Origin: United States
