Belimo P5000AGR Feedback Potentiometer 5000 Ohms

Product Description

The Belimo P5000AGR is a feedback potentiometer designed specifically for modulating damper control. This unit is compatible with LM, NM, AM, and GM actuator types and provides a resistive signal that varies with damper position. It is often used to provide feedback for commercial temperature controllers and can also indicate damper position when used with electric or electronic systems. This product is essential for effective damper position management.

• Compatibility with multiple actuator types.
• Provides resistive signals for accurate position feedback.
• Ideal for use with commercial proportional temperature controllers.

Product Highlights

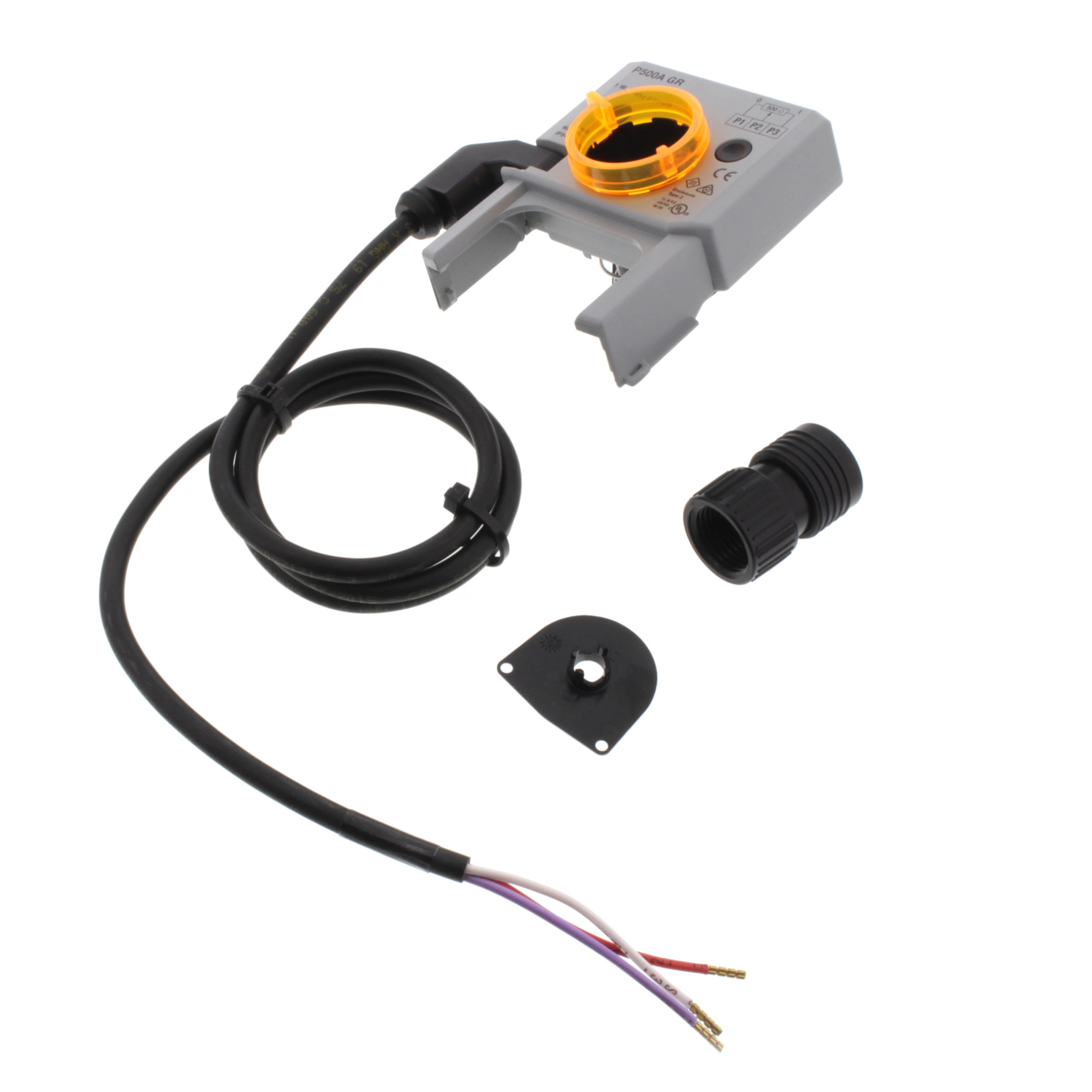

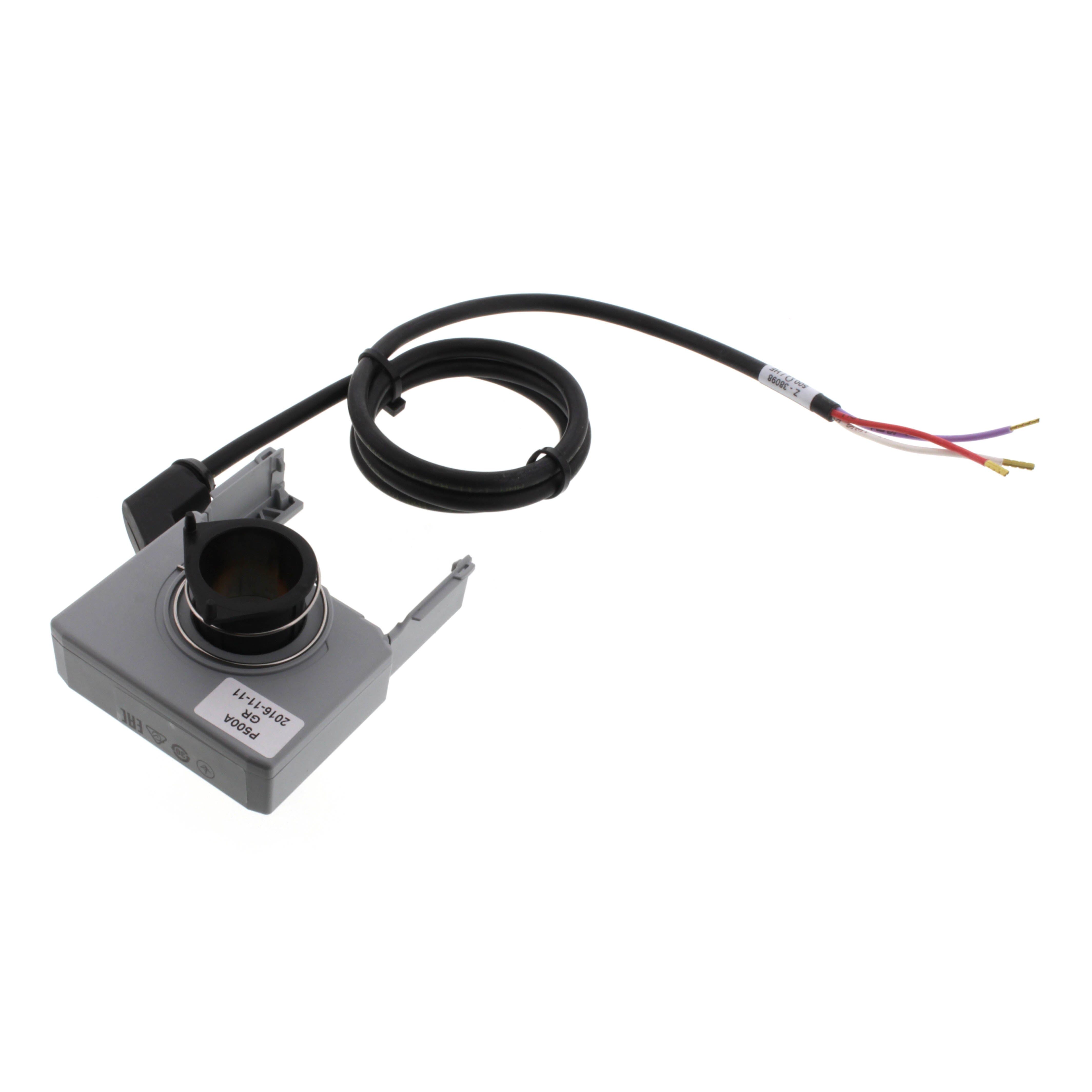

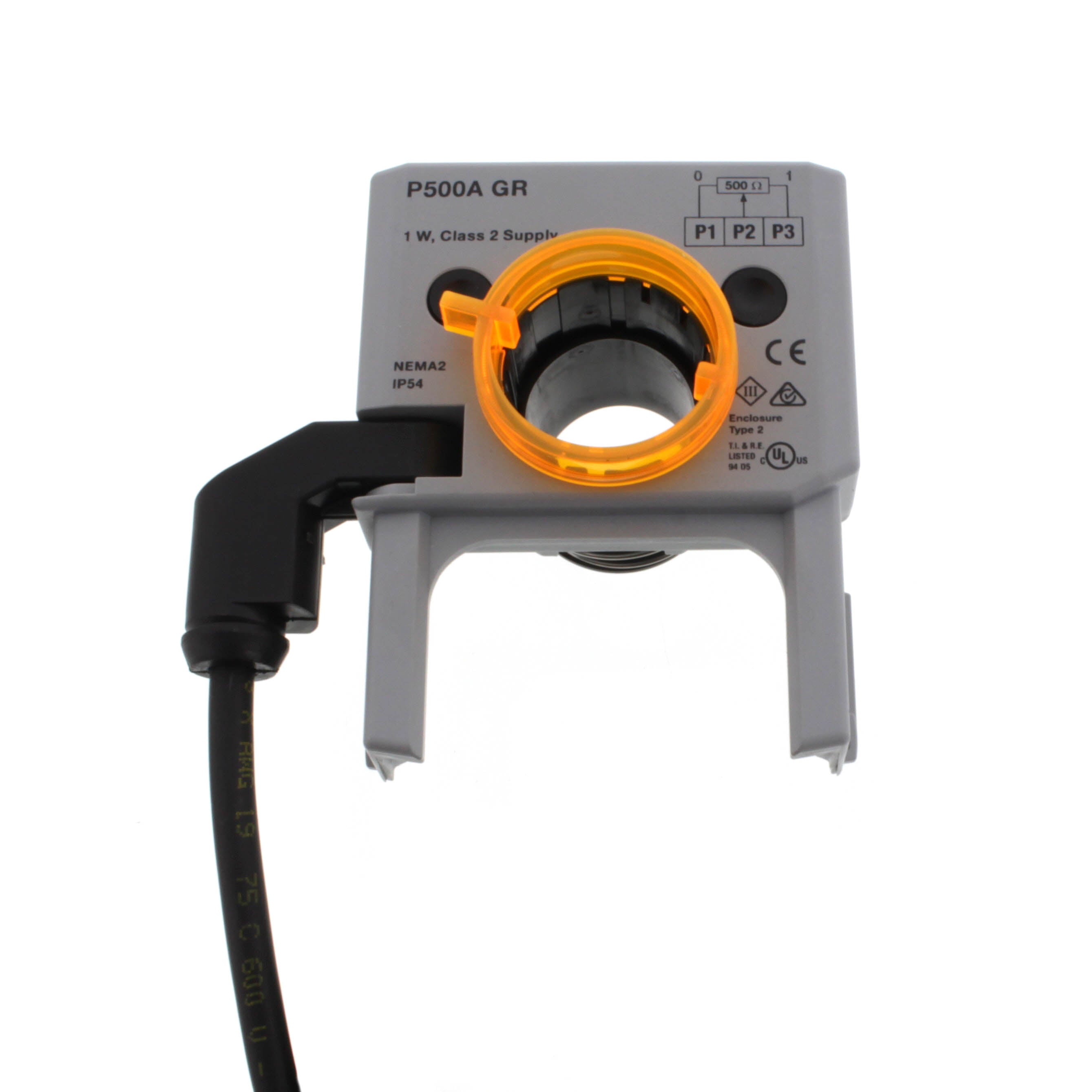

The Belimo P5000AGR offers a compact design that ensures easy mounting onto compatible actuators. The assembly includes a driver disk that directly connects to the actuator's handle, allowing for precise position transmission.

Product Information

Standard Information

• Brand: Belimo
• MPN: P5000AGR

Technical Specifications

• Resistance: 5000 Ohm
• Degree of Protection: IP54
• Electrical Connection: cable
• Ambient Temperature Range: -22°F to +122°F
• Weight: 0.455 lbs
• Shipping Dimensions: 7.35 inches (D) x 5.2 inches (W) x 1.95 inches (H)
