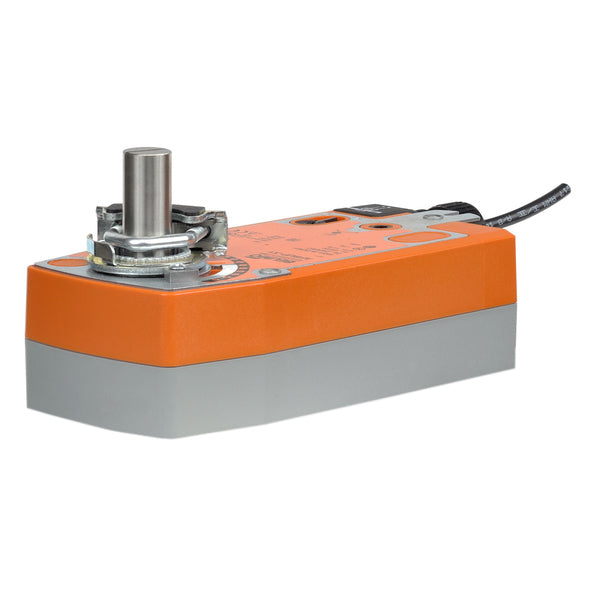

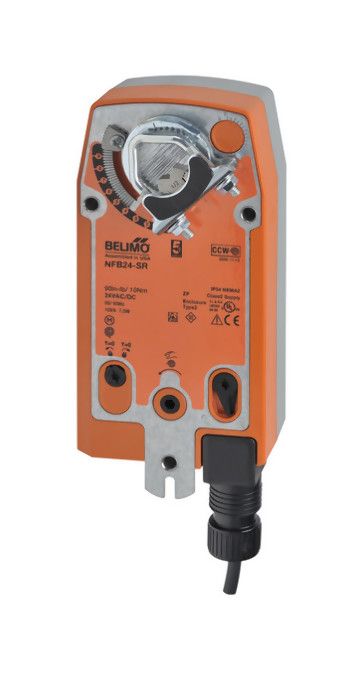

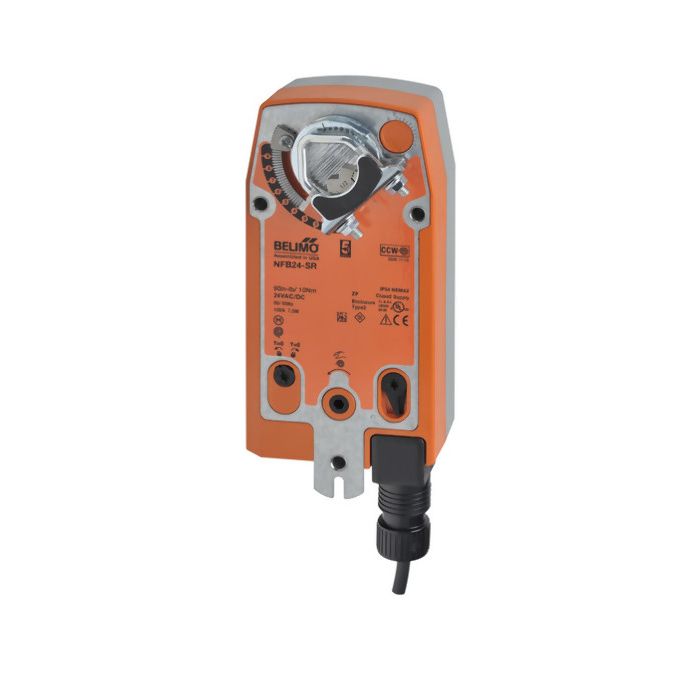

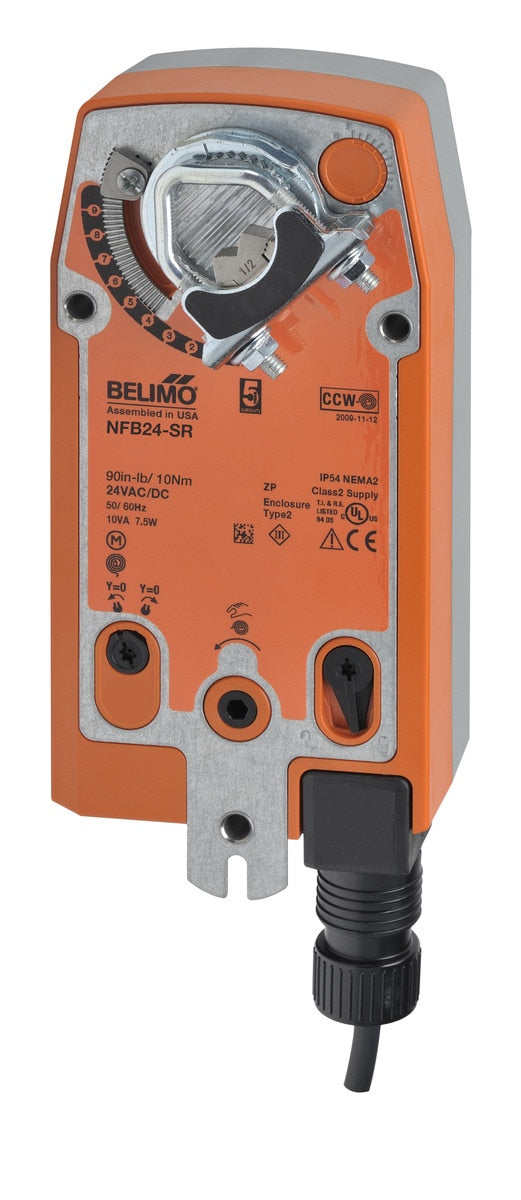

Belimo NFB24-SR-X1 Direct Coupled Actuator 90 in-lb

BELIMO
Brand: BELIMO
SKU: NFB24-SR-X1
Availability: Out Of Stock
$520.85
$520.85
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BELIMO NFB24-SR-X1 is a direct coupled actuator with a spring return, designed for modulating control with 24 VAC/DC power. It accepts a 2 to 10 VDC or 4 to 20 mA control signal. This actuator provides reliable fail-safe operation and positive close-off on airtight dampers. It delivers constant torque to the damper, whether power is applied or not.

  • Provides true spring return operation for reliable failsafe application
  • Provides constant torque to the damper with, and without, power applied to the actuator
  • May be stalled anywhere in its normal rotation without the need of mechanical end switches

Product Highlights

The NFB24-SR-X1 actuator is ideal for valve and damper applications, offering modulating control and fail-safe functionality.

Product Information

Standard Information

  • Brand: BELIMO
  • Manufacturer Part Number: NFB24-SR-X1
Technical Specifications
Housing
NEMA 2, IP54, UL Enclosure Type 2
Power Consumption
3.5 W Running, 2.5 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
18 GA appliance cable, 3 ft [1 m], with 1/2" conduit connector
Angle of Rotation
95
Actuator Type
Spring return
Control Type
DC 2...10 V
Degree of Protection
IP54, NEMA 2, UL Enclosure Type 2
Manual Override
5 mm hex crank (3/16" Allen), supplied
Running Time (Fail-safe)
<20 s
Running Time (Motor)
95 s / 90B0
Voltage AC/DC
AC/DC 24 V
Torque
90 in-lb
Runtime
95 Secs
Version
Basic
Voltage
24vdc
Aux. Switch
None
Spring Return
Spring Return
Communications
None
Maintenance
maintenance free
Torque motor
90 in-lb [10 Nm]
Power consumption in operation
3.5 W
Power consumption in rest position
2.5 W
Transformer sizing
6 VA (class 2 power source)
Ambient humidity
5...95% r.H. non condensing (EN 60730-1)
Housing material
zinc coated metal and plastic casing
Position indication
visual indicator, 0 to 95 (0 is full spring return position)
Ambient Temperature
-22...122 F [-30...50 C]
Non-operating temperature
-40...176 F [-40...80 C]
Control
Modulating
direction of rotation motor
reversible with built-in switch
direction of rotation spring-return
reversible with cw/ccw mounting
Overload Protection
electronic throughout 0 to 95 rotation
Quality Standard
ISO 9001
Nominal voltage
AC/DC 24 V
Power Supply
24 VAC, 20%, 50/60 Hz, 24 VDC, -10% / +20%
Agency Listing
cULus acc. to UL60730-1A/-2-14, CAN/CSA E60730-1:02, CE acc. to 2004/108/EC and 2006/95/EC
Position Feedback
DC 2...10 V, Max. 0.5 mA
Operating Range
DC 2...10 V, 4...20 mA w/ ZG-R01 (500 , 1/4 W resistor)
Emergency control function
Spring Return
Family Series
NF Series
Operating range Y
DC 2...10 V
Control operating range Y note
4...20 mA w/ ZG-R01 (500 , 1/4 W resistor)
Position feedback U
DC 2...10 V
Position feedback U note
Max. 0.5 mA
Noise Level (Fail-Safe)
<62 dB (A)
Running time (Fail-Safe)
<20 seconds
Noise level, motor
<50 dB (A)
Fail-Safe function
Spring return
Connection
cable
Degree of protection IEC/EN
IP54
Degree of protection NEMA/UL
NEMA 2
Enclosure
UL Enclosure Type 2
Power Consumption For Wire Sizing
6 VA
Direction Of Motion Motor
selectable with switch 0/1
Direction of Rotation (Fail-Safe)
Reversible with cw/ccw mounting
Protection category
IP42
Degree Of Protection NEMA
NEMA 2
Enclosure Type
UL Enclosure Type 2
Control Signal
2-10VDC
Auxillary Switch
None
NEMA 4X Enclosure
No
