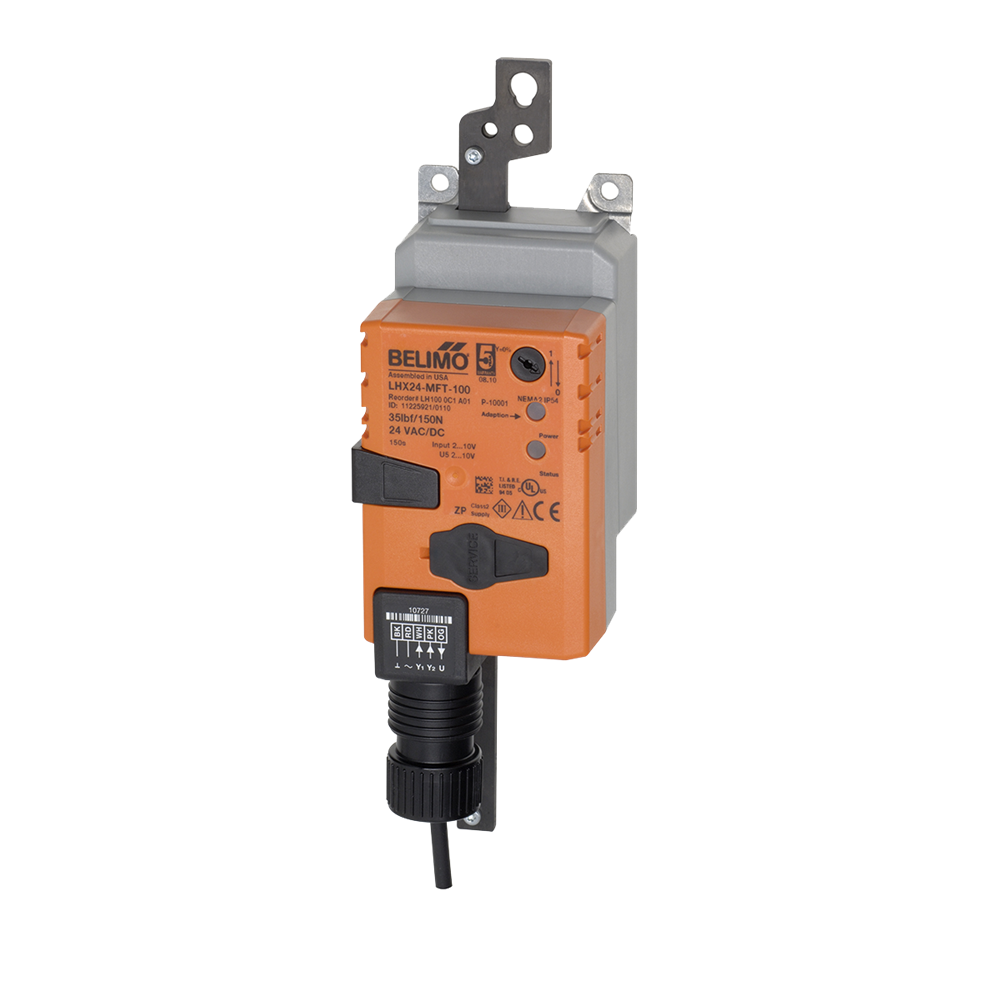

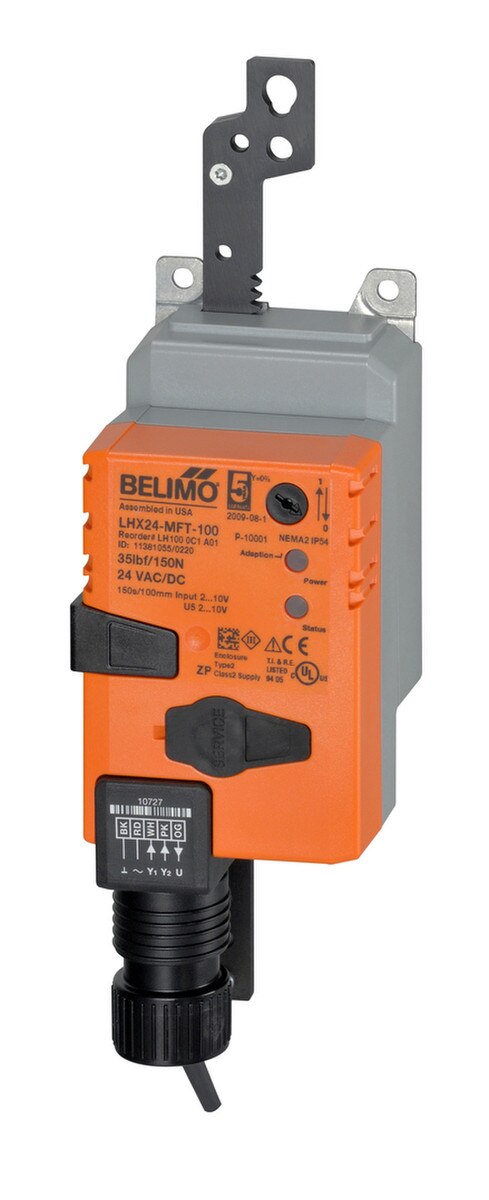

Belimo LHX24-MFT-100 Damper Actuator 34 lbf

Product Description

The BELIMO LHX24-MFT-100 is a damper actuator designed for proportional modulation of dampers in HVAC systems. This non-spring return actuator delivers 34 lbf of force and operates on 24V. It features a programmable control input and feedback signal. Actuator sizing should align with damper manufacturer specifications.

• Suitable for HVAC systems
• Provides 34 lbf of force
• Features a programmable control input

Product Highlights

The BELIMO LHX24-MFT-100 damper actuator is ideal for HVAC systems, offering precise control and reliable performance.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: LHX24-MFT-100
• Country of Origin: United States

Technical Specifications

• Actuator Type: Non fail-safe
• Control Type: MFT/Programmable
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: cable
• Force: 35 lbf
• Manual Override: External push button
• Power Consumption (Holding): 1.2 W
• Power Consumption (Running): 2.5 W
• Running Time (Motor): 150 s / 100 mm
• Running Time range (Motor): 70...270 s / 100 mm
• Safety Function: NO
• Stroke: 4"
• Voltage AC/DC: AC/DC 24 V
• Torque: 34 in-lbs
• Options: None
• Runtime: 150 Secs
• Version: Custom
• Voltage: 24vdc
• Aux. Switch: None
• Nema Rating: Nema 2
• Spring Return: Non-Spring Return
• Communications: None
• Brand: Belimo
• Model: LHX24-MFT-100
• MPN: LHX24-MFT-100
