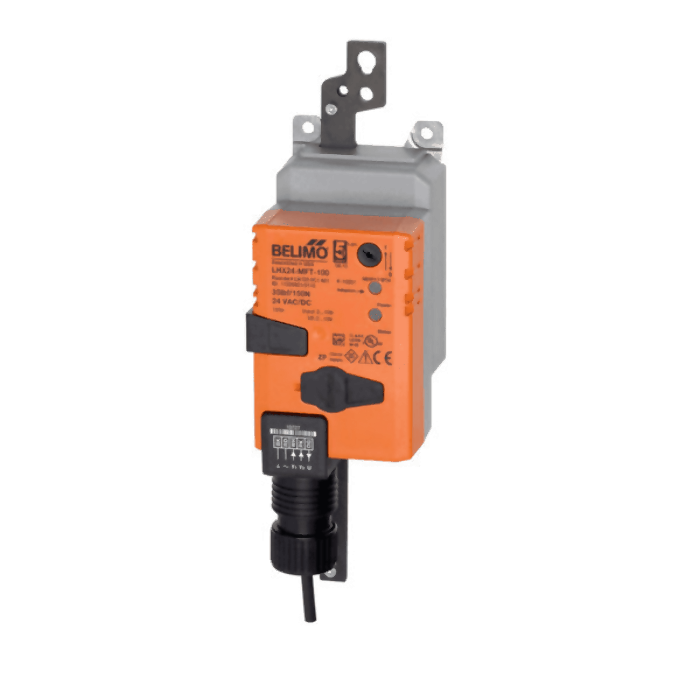

Belimo LHB24-SR-200 Damper Actuator 34 lbf Non-Spg Rtn 24V Modulating

Product Description

The BELIMO LHB24-SR-200 is a damper actuator with 34 lbf of linear force, designed for modulating control and non-spring return operation. It features electronic overload protection and an anti-rotation strap to prevent lateral movement. The stroke of the gear rack can be adjusted in increments of 0.8 in [20 mm]. Power consumption is reduced in holding mode.

• Electronically protected against overload.
• Features a sensorless brushless DC motor controlled by an Application Specific Integrated Circuit (ASIC).
• Equipped with an anti-rotation strap to prevent lateral movement.

Product Highlights

This Belimo damper actuator is designed for modulating control and features electronic overload protection.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: LHB24-SR-200

Technical Specifications

• Actuator Type: Non fail-safe
• Control Type: DC 2...10 V
• Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: cable
• Force: 35 lbf
• Manual Override: External push button
• Power Consumption (Holding): 0.5 W
• Power Consumption (Running): 1.5 W
• Running Time (Motor): 150 s / 100 mm
• Safety Function: NO
• Stroke: 8"[200 mm]
• Voltage AC/DC: AC/DC 24 V
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Housing: NEMA 2, IP54, UL Enclosure Type 2
