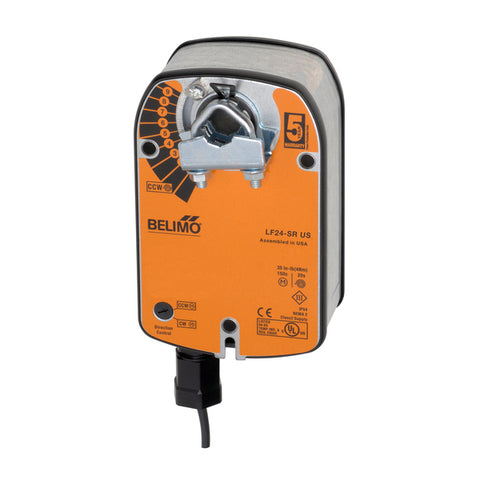

Belimo LF24-SRUS Damper Actuator 35 in-lb Spg Rtn 24V Modulating

Product Description

The Belimo LF24-SRUS is a damper actuator designed for HVAC systems. This actuator operates with a torque of thirty-five inch-pounds and runs on twenty-four volts. It is suitable for fail-safe, modulating control of dampers. The actuator mounts directly to a damper shaft using a universal clamp. It responds to a control input of either two to ten VDC or four to twenty mA, allowing for flexibility in system integration.

• Torque: 35 inch-pounds
• Control Type: DC 2 to 10 V
• Angle of Rotation: 95 degrees

Product Highlights

This actuator features a spring return for reliable and efficient operation, ensuring positive close-off of air tight dampers. With a brushless DC motor and integrated microprocessor, it offers precise control and robust performance in various HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: LF24-SRUS

Technical Specifications

• Actuator Type: Spring return
• Angle of Rotation: 95 degrees
• Control Type: DC 2 to 10 V
• Degree of Protection: IP54 NEMA 2
• Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
• Electrical Connection: Cable
• Power Consumption (Holding): 1 W
• Power Consumption (Running): 2.5 W
