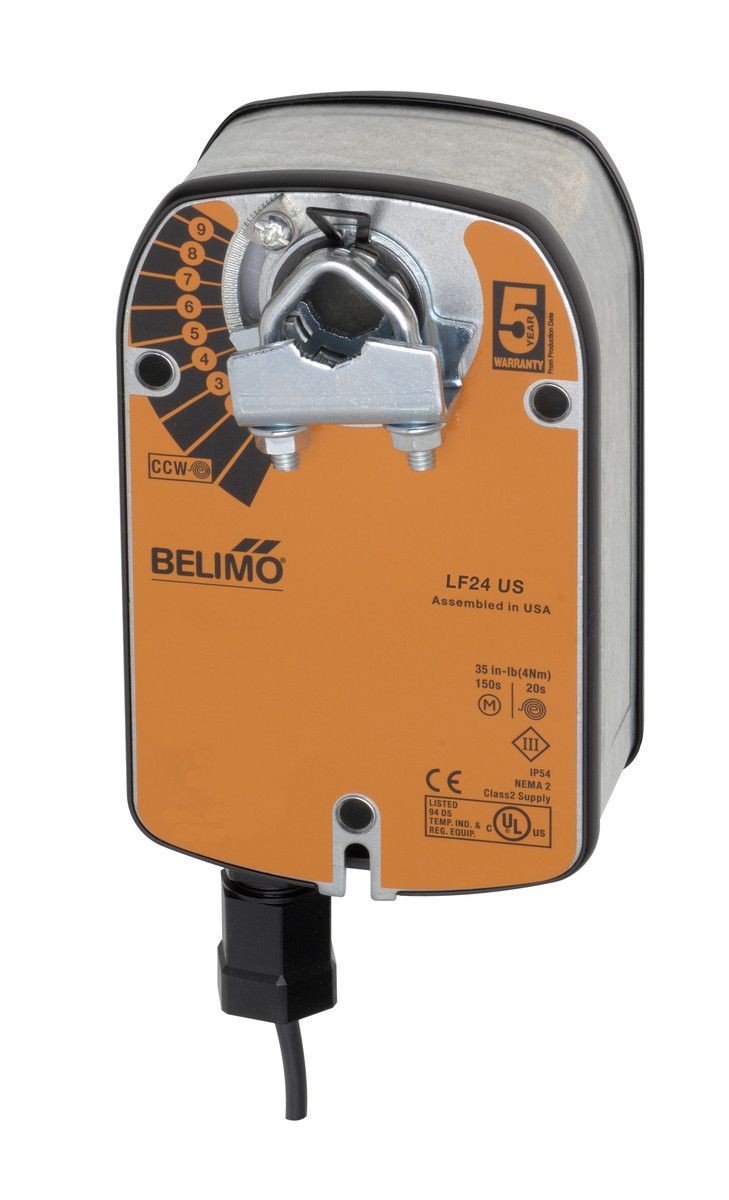

Belimo LF24-3 US Direct Coupled Actuator 35 in-lb

Product Description

The Belimo LF24-3 US is a direct coupled actuator designed to provide performance in HVAC applications. This actuator delivers a torque of thirty-five in-lbs and operates on 24 VAC. It is suitable for on/off and floating point control systems.

• Spring return operation ensures reliable fail-safe performance.
• Provides consistent torque to the damper with or without power.
• Can be stalled at any point in normal rotation without mechanical end switches.

Product Highlights

This actuator is ideal for controlling dampers in HVAC systems. It can be mounted directly on damper shafts and supports various connection methods.

Product Information

Standard Information

• Brand: Belimo
• Part Number: LF24-3 US

Technical Specifications

• Torque: 35 in-lb (4 Nm)
• Power Consumption: 2.5 W running, 1 W holding
• Angle of Rotation: 90 degrees
• Control Type: Floating/3-point
• Degree of Protection: NEMA 2, IP54
• Electrical Connection: 3 ft. 18 GA plenum cable
• Operating Conditions: -22 F to 122 F (-30 C to 50 C)
• End Fitting: Internal thread
• Valve Size: 0.75 in (20 mm)
• Fluid: Potable water
