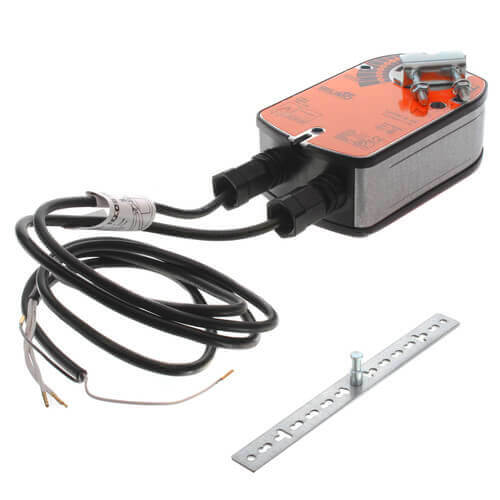

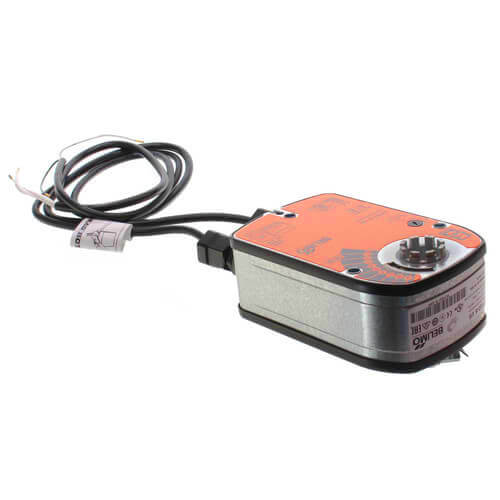

Belimo LF230-S Spring Return Fail-Safe On/Off Damper Control Actuator Direct Coupled 230 VAC

Product Description

Discover the efficiency and reliability of the Belimo LF230-S, a spring return fail-safe damper control actuator specifically engineered for HVAC systems. This actuator, operating at 230 VAC, is designed for direct coupling, ensuring a seamless installation process lasting around ten minutes.

• True mechanical spring return guarantees a fail-safe operation, maintaining reliability even in power failure situations.
• Equipped with a reversible function, allowing for clockwise or counterclockwise installation to match system requirements.
• Embedded microprocessor-controlled brushless DC motor enhances durability and consistent performance, extending the actuator's lifespan.

Product Highlights

Featuring a rugged metal housing, the LF230-S withstands tough handling and environmental conditions within mechanical rooms. Its compact size with dimensions of 9.01 inches in height, 8.01 inches in width, and 8.01 inches in length makes it versatile for various duct sizes.

Product Information

Standard Information

• Torque: 35 lb-in
• Fail Safe Mode: Spring Return

Technical Specifications

• Power Supply: 230 VAC
• Running Time: < 40 to 75 Seconds (motor), < 25 Seconds @ 4°F to 122°F (spring), < 60 Seconds @ -22°F (spring)
• Auxiliary Switch: 1 SPDT
• Ambient Temperature: -22°F to +122°F
• Control Input: On/Off
• Direction of Rotation: Reversible w/ cw/ccw mounting
