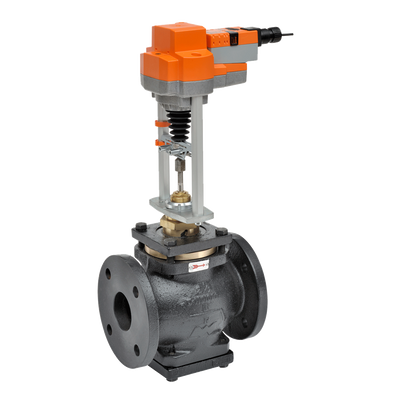

BELIMO G680C+EVB24-SR Globe Valve 90 Cv Non-Spring Return Actuator 24V

Product Description

The Belimo G680C+EVB24-SR valve is designed for substantial fluid control applications, suitable for large air handling units in heating or cooling setups. Manufactured with high-grade bronze trim, this valve offers reliable performance in both hydronic systems with variable flow and for steam applications, depending on the actuator and close-off combination. This 3-inch, 2-way globe valve is equipped with a non-fail safe actuator, operates on a 24V AC/DC power supply, and features a manual override mechanism.

• Optimal for high-demand HVAC systems.
• Constructed with bronze trim for enhanced durability.
• Features a non-fail safe actuator with manual override functionality.

Product Highlights

Equipped with a robust motor that requires only 5 watts during operation and 1.5 watts for holding. It provides precise controllability with an adjustable stem, ensuring widened application suitability.

Product Information

Standard Information

• Brand: Belimo
• Category: HVAC Valves

Technical Specifications

• Cv: 90
• Trim: Bronze
• Fluid Compatibility: Chilled or hot water, up to 60% glycol, steam
• Force: 2500N [560lbf]
• Stroke: 2 inches [50mm]
• Valve Size: 3 inches [80]
• Actuator Type: Non fail-safe
• Voltage: AC/DC 24V
• Manual Override: 5 mm hex crank (3/16 inch Allen) supplied
• Protection Degree: IP54 NEMA 2 UL Enclosure Type 2
• Electrical Connection: Cable
• Running Time (Motor): 90 seconds
