Belimo G350B-N+SVB24-SR Globe Valve Assembly 2 in.

Product Description

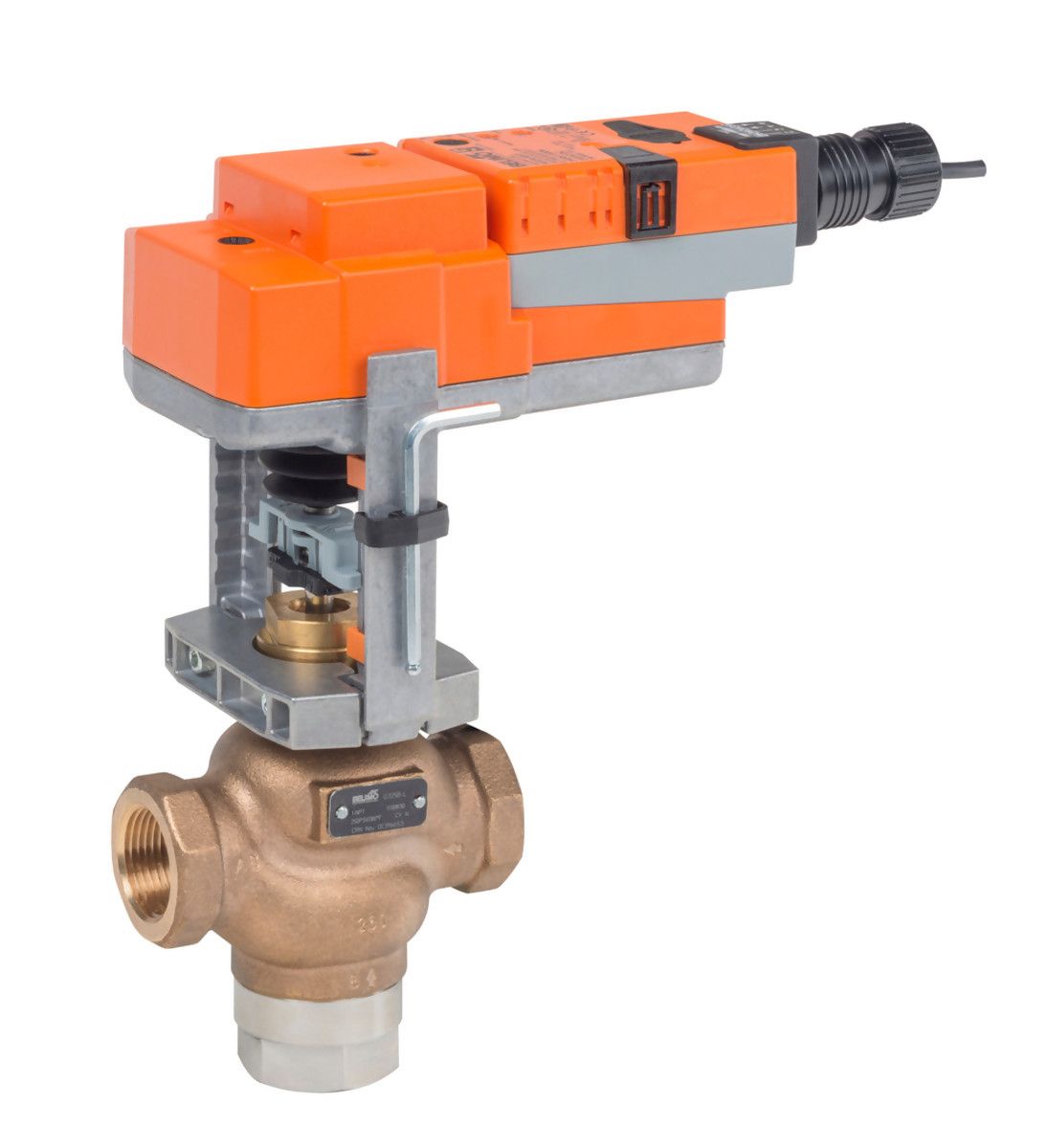

The BELIMO G350B-N+SVB24-SR is a globe valve assembly with a 3-way, 2-inch configuration. It features an NPT, 40 Cv, bronze body and seat, and a stainless steel stem. The direct-coupled actuator delivers 340 ft.-lb linear force and modulating, non-spring return operation with 24 VAC for 2 to 10 VDC or 4 to 20 mA control signal.

• Greater Force And Flexibility
• For Use With Water And Low To High Pressure Steam Control, 15-100 psi Inlet
• New Soft Seat Design Providing ANSI Class VI Leakage Rating

Product Highlights

This globe valve assembly is designed for use in HVAC systems with hot or chilled water and up to 60% glycol.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: G350B-N+SVB24-SR
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP42, UL Enclosure Type 2
• Service: Chilled Or Hot Water, Up To 60% Glycol
• Power Consumption: 1.5 W Running, 2 W Holding
• Flow Characteristic: Modified Equal Percentage, Linear B To AB
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connections: 3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2
• ANSI Class: 250
• Controllable Flow Range: Stem up - open B b AB
• Cv: 41
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 2" [50]
• Actuator Type: Non fail-safe
• Force: 1500 N [340 Lbf]
• Manual Override: 4 mm hex crank (shipped w/actuator)
• Power Consumption (Holding): 2 W
• Power Consumption (Running): 1.5 W
• Running Time (Motor): 90 s /
• Stroke: 0.75" [19 mm]
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Sec
• Actuator: SVB24-SR
• Assembly: Assembly
• Feedback: 2-10vdc
• Fail-Safe: Non-Spring Return
• Pipe Size: 2 in
• Connection: NPT
• Valve Type: 3-Way
• Nema Rating: Nema 2
• Flow Pattern: Mixing/Diverting
• Power Supply: Electric
• Valve Number: G350B-N
• Close Off Pressure: Mix: 86 PSI,Divert: 29 PSI
• Body Pressure Rating: ANSI Class 250, up to 400 psi below 150 F
• Power Consumption For Wire Sizing: 4 VA
• Control Type: DC 2...10 V
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
• Size: 2 in
• Supply Voltage (Nominal): 24 VAC
• Trim Material: Bronze
