Belimo G320B-K+SVB24-3 Globe Valve Assembly 24 VAC

Product Description

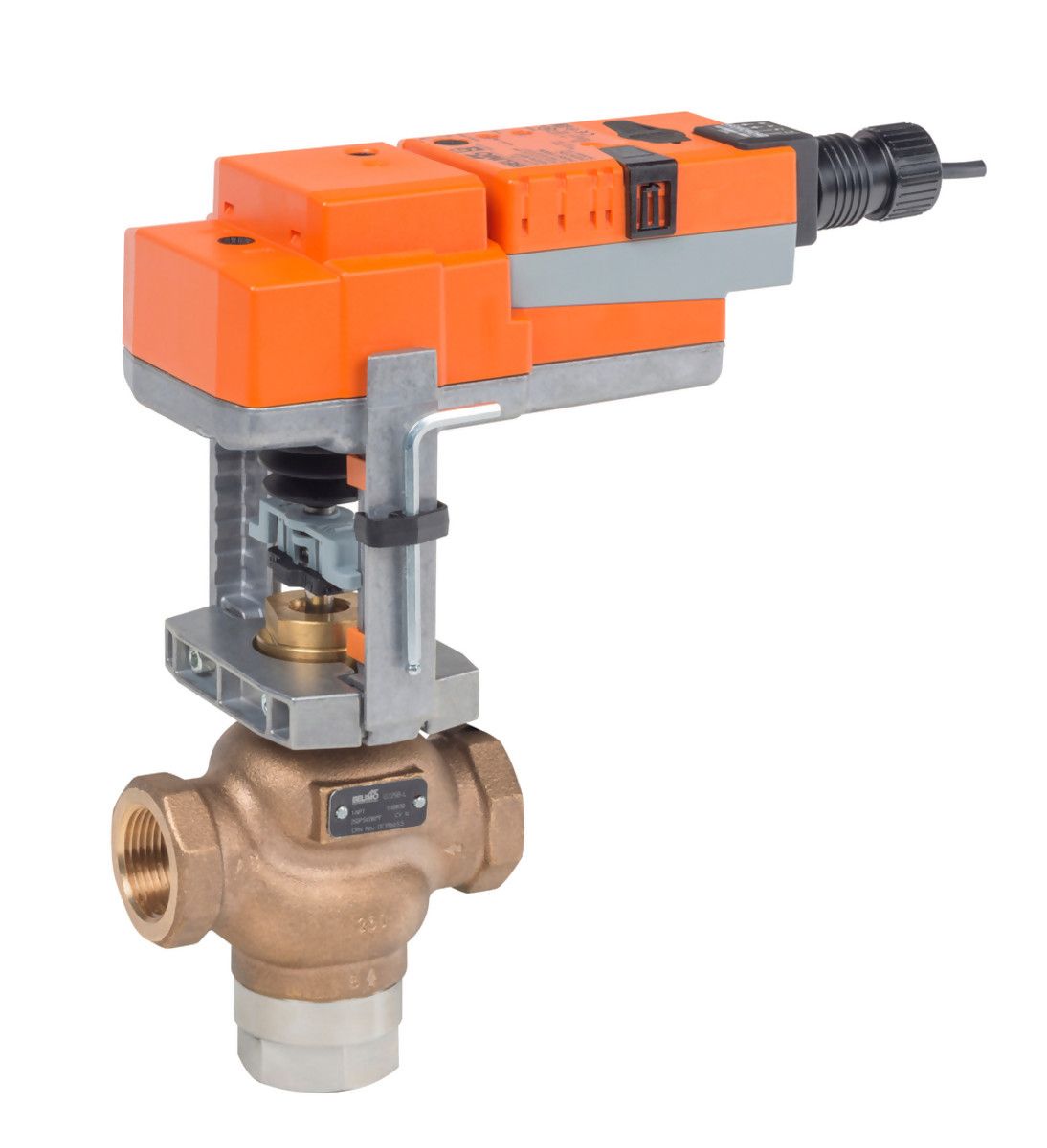

The BELIMO G320B-K+SVB24-3 is a globe valve assembly with a 3/4 inch NPT, 6.75 Cv, bronze body, bronze seat, and stainless steel stem. It features direct coupling, non-spring return, and 337 lbf linear force, operating at 24 VAC with on/off, floating point control. Designed for use with water and low to high-pressure steam control.

• Greater Force And Flexibility
• For Use With Water And Low To High Pressure Steam Control, 15-100 psi Inlet
• New Soft Seat Design Providing ANSI Class VI Leakage Rating

Product Highlights

This globe valve assembly is ideal for controlling water and steam in various applications, offering flexibility and a tight seal.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: G320B-K+SVB24-3
• Country of Origin: United States

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled Or Hot Water, Up To 60% Glycol, Steam
• Power Consumption: 2 W Running, 1.5 W Holding
• Flow Characteristic: Modified Equal Percentage, Linear B To AB
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connections: 3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2
• ANSI Class: 250
• Controllable Flow Range: Stem up - open B b AB
• Cv: 6.75
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: NO
• Trim: Bronze
• Valve Size: 0.75" [20]
• Actuator Type: Non fail-safe
• Force: 1500 N [340 lbf]
• Manual Override: 4 mm hex crank (shipped w/actuator)
• Running Time (Motor): 90 s /
• Stroke: 0.75" [19 mm]
• Voltage AC/DC: AC/DC 24 V
• Runtime: 90 Sec
• Actuator: SVB24-3
• Assembly: Assembly
• Fail-Safe: Non-Spring Return
• Pipe Size: 0.75 in
• Connection: NPT
• Valve Type: 3-Way
• Nema Rating: Nema 2
• Flow Pattern: Mixing/Diverting
• Power Supply: Electric
• Valve Number: G320B-K
• Control Signal: On/Off, Floating
• Close Off Pressure: Mix: 250 PSI,Divert: 182 PSI
• Body Pressure Rating: ANSI Class 250, up to 400 psi below 150 F
• Power Consumption For Wire Sizing: 3.5 VA
• Control Type: Floating/3-point
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 2
• Enclosure Type: UL Enclosure Type 2
