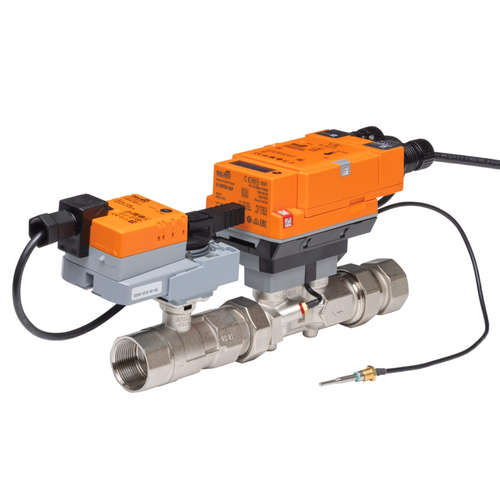

Belimo EV200H+ARX-E Energy Valve 2 inches 100 GPM

Product Description

The BELIMO EV200H+ARX-E is an electrically actuated 2-way pressure independent characterized control valve. It measures energy using its built-in electronic flow sensor and supply and return temperature sensors. It controls power with its Power Control logic, providing linear heat transfer regardless of temperature and pressure variations. The Energy Valve manages Delta T.

• Measures Energy: using its built-in electronic flow sensor and supply and return temperature sensors.
• Controls Power: with its Power Control logic, providing linear heat transfer regardless of temperature and pressure variations.
• Manages Delta T: The Energy Valve solves Low Delta T Syndrome.

Product Highlights

The BELIMO EV200H+ARX-E reduces pumping costs while increasing chiller/boiler efficiency by optimizing coil efficiency.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: EV200H+ARX-E

Technical Specifications

• Angle of Rotation: 90
• End Fitting: Internal thread
• Flow: 100
• Fluid: Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
• Pattern: 2-way
• PI-Technology: Electronic
• Pressure Independent: YES
• Sensor Technology: Ultrasonic with glycol and temperature compensation
• Trim: Stainless steel
• Valve Size: 2" [50]
• Actuator Type: Electric
• Control Type: BACnet IP
• Degree of Protection: IP54 NEMA1 ULEnclosureType1
• Electrical Connection: cable
• Manual Override: External push button
• Power Consumption (Running): 5 W
• Running Time (Motor): 90s
• Voltage AC/DC: AC/DC24V
• Connection: NPT
• Fail-Safe: Non-Spring Return
• Supply Voltage (Nominal): 24 VAC
• Size: 2 in
• GPM: 100 GPM
• Control Signal: Analog
• Body Pressure Rating: 360 psi
• Power Consumption For Wire Sizing: 8 VA
• Connection Ethernet: RJ45 socket
• Valve Pattern: 2-Way
• Voltage: 24VAC/DC
• Protection category: IP54
• Degree Of Protection NEMA: NEMA 1
• Enclosure Type: UL Enclosure Type 1
