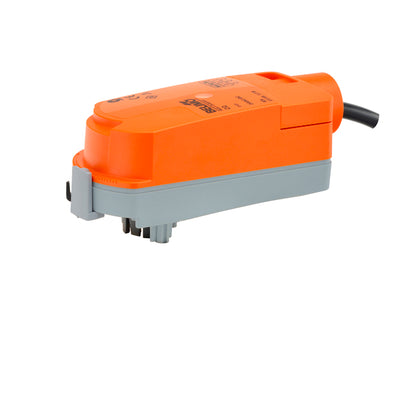

Belimo CQB24-3 Actuator 24V Non-Spring Return

Product Description

Belimo CQB24-3 is a robust 24V actuator designed for smooth operation in HVAC systems. This non-spring return unit ensures reliable control of dampers and valves in heating, ventilation, and air conditioning applications.

• Compact design enhances installation flexibility.
• Non-spring return mechanism for reliable service.
• 24V AC/DC power requirement for versatile use.

Product Highlights

Achieve precise control with the Belimo CQB24-3 Actuator. It's engineered for straightforward operation, offering a 90-degree angle of rotation and a floating/3-point control type, suitable for a wide range of HVAC settings.

Technical Specifications

• Actuator Type: Non fail-safe
• Angle of Rotation: 90 degrees
• Control Type: Floating/3-point
• Product Type: Combo
• Fluid Type: Potable water
• End Fitting: Internal thread
• Valve Size: 0.5 inches
• Voltage: AC/DC 24V
• Protection Class: IP40, NEMA2
• Power Consumption (Running): 0.3 W
• Power Consumption (Holding): 0.2 W
• Running Time (Motor): 75s for 90 degrees
