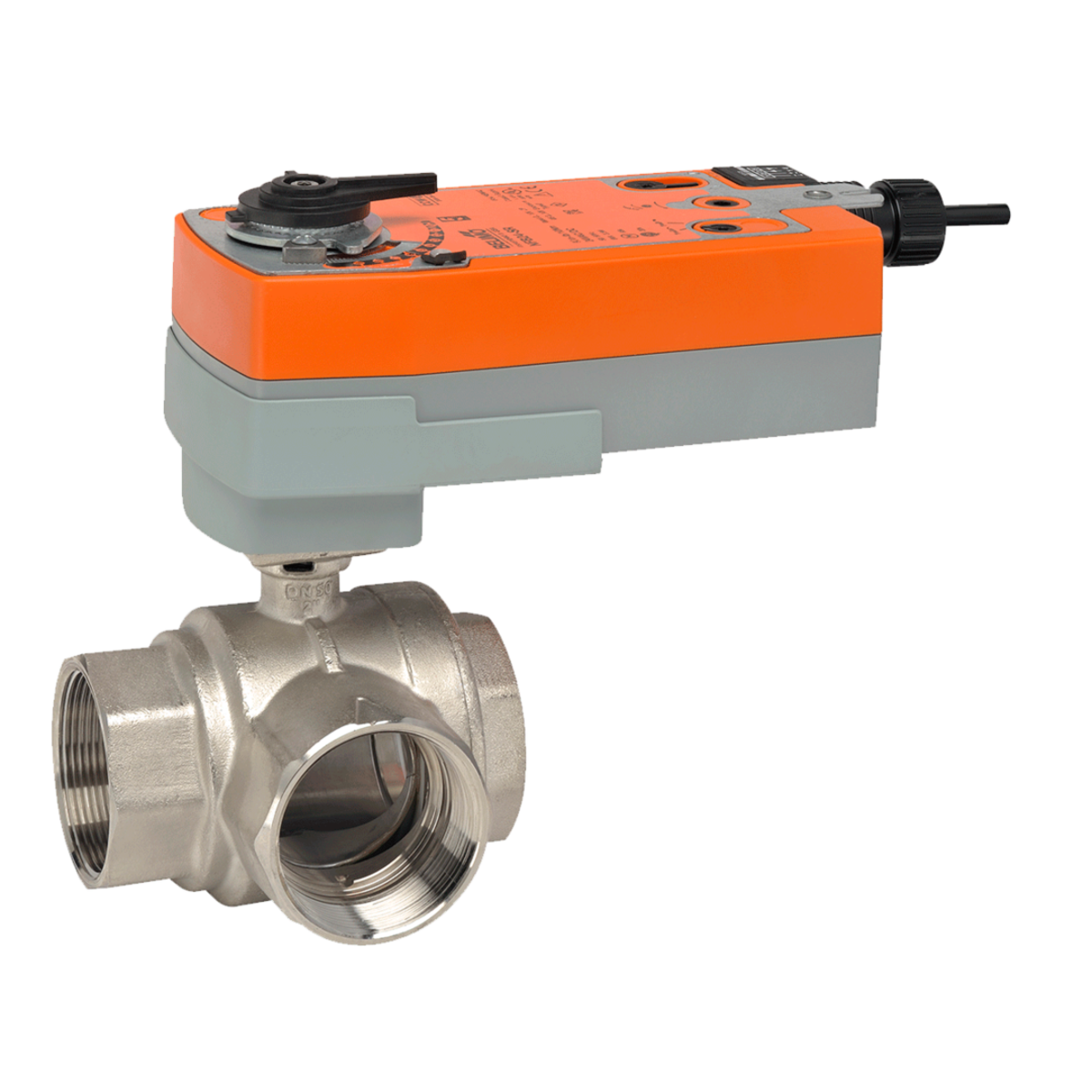

Belimo B351+AFRB24-SR CCV Assembly 3 Way 2 in NPT 68 Cv

Product Description

The Belimo B351+AFRB24-SR is a CCV assembly designed for precise control in HVAC applications. This 3-way valve is fitted with a two-inch NPT connection and a flow coefficient of sixty-eight, ideal for managing chilled or hot water in various heating and cooling systems.

• Versatile use in air handling units and fan coil systems.
• Features a durable forged brass construction with a nickel-plated body.
• Spring return actuator for reliable performance.

Product Highlights

This valve supports modulating control with 24 VAC power supply, adapting easily to a 2 to 10 VDC or 4 to 20 mA control signal, ensuring optimal efficiency in HVAC operations.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B351+AFRB24-SR

Technical Specifications

• Housing: NEMA 2, IP54, UL Enclosure Type 2
• Service: Chilled, Hot Water, Up To 60% Glycol
• Power Consumption: 5.5 W Running, 3 W Holding
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-Port Equal Percentage, B-Port Modified For Constant Common Port Flow
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: 3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
