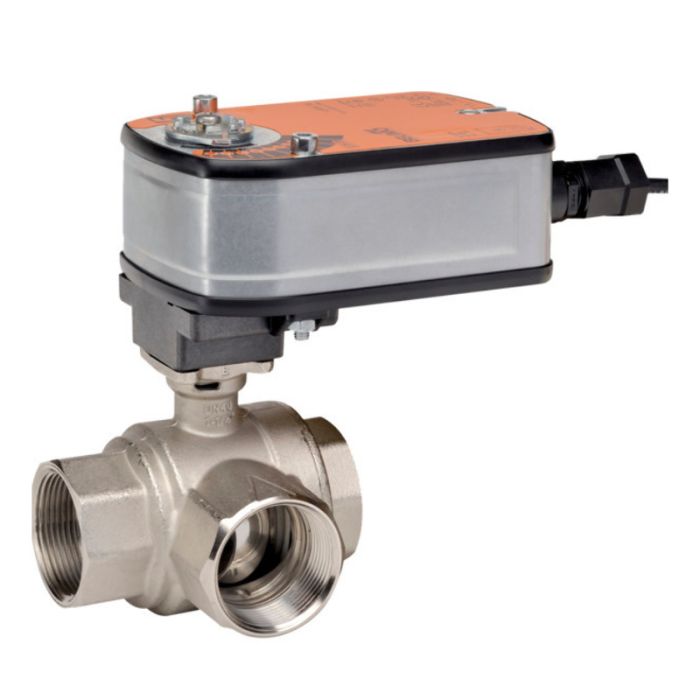

Belimo B318+LF24US CCV Assembly 3 Way 3/4 in NPT 7.4 Cv

Product Description

The Belimo B318+LF24US is a characterized control valve with a forged brass body. This valve is used in various HVAC applications to control fluid flow in heating and cooling systems. Its direct coupled actuator operates at twenty-four volts AC/DC with a torque rating of thirty-five inch-pounds. The valve effectively regulates chilled or hot water flow, suitable for hydronic systems with variable or constant flow.

• Valve design offers self-cleaning and zero leakage.
• Rated for water temperatures up to two hundred fifty degrees Fahrenheit.
• Perfect for air handling units and fan coil units.

Product Highlights

Direct coupled actuator with on/off operation and spring return feature for reliable service in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Part #: B318+LF24US

Technical Specifications

• MPN: B318+LF24US
• Housing: NEMA 2, IP54
• Service: Chilled and hot water, up to 60% glycol
• Close-Off Pressure: 200 psi
• Operating Conditions: -22 F to 122 F
• Electrical Connection: Three-foot eighteen-gauge appliance cable with half-inch conduit connector
• Flow Characteristic: A-port equal percentage, B-port modified for constant common port flow
• Power Consumption: 5 W running, 2.5 W holding
