Belimo B318 CCV 3 Way 3/4 in NPT 7.4 Cv

Product Description

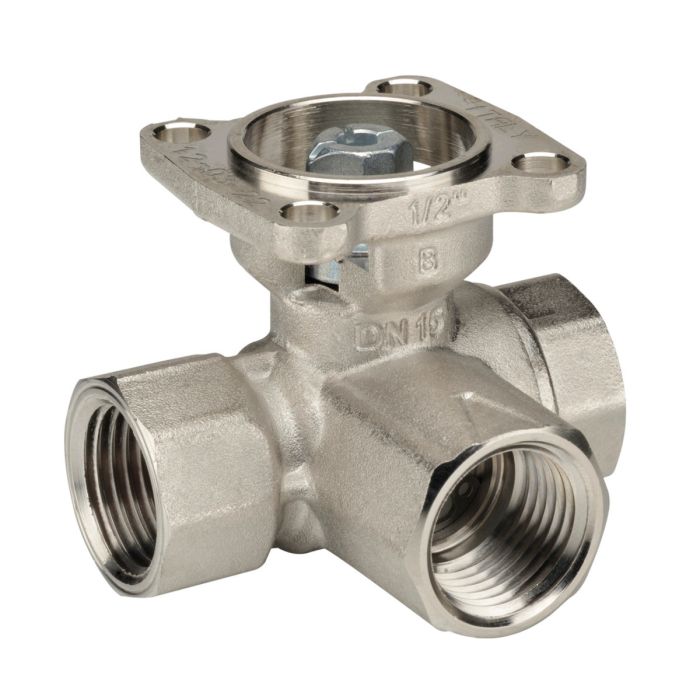

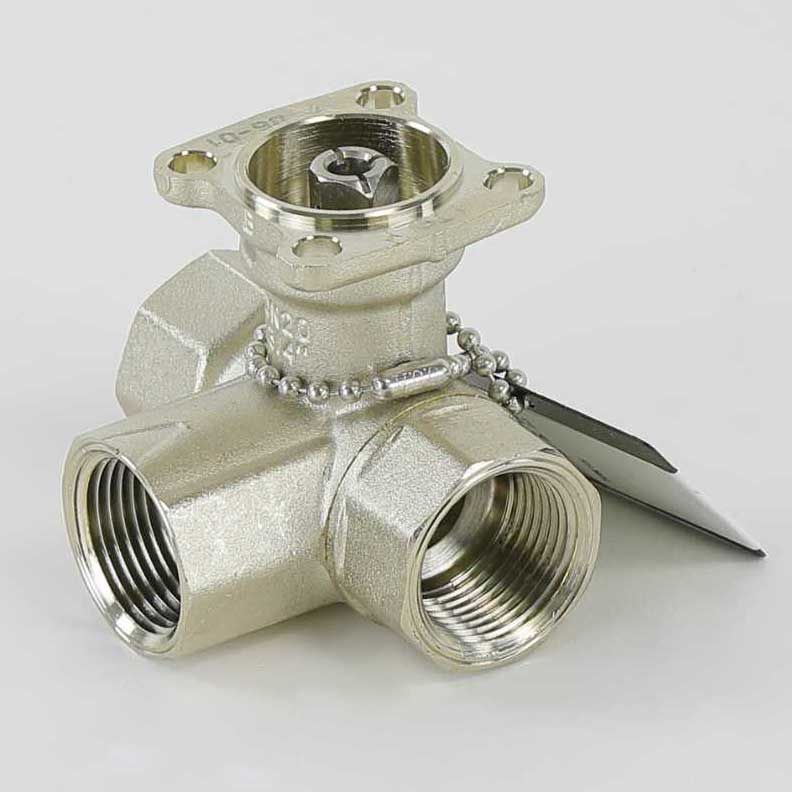

The Belimo B318 is a characterized control valve with a three-way design, ideal for air handling units and fan coil units. This valve connects with three quarter inch NPT piping and has a flow coefficient of 7.4 Cv. It features a nickel-plated forged brass body, stainless steel ball, and stem for enhanced durability. It is suitable for hydronic systems and can handle both chilled and hot water applications with maximum temperatures of two hundred fifty degrees Fahrenheit.

• Valve suitable for both heating and cooling applications
• Ball valve design enables self-cleaning with zero leakage
• Rated for water temperatures up to 250 F

Product Highlights

This valve is essential for maintaining efficient flow control in HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• MPN: B318

Technical Specifications

• Service: Chilled, hot water, up to 60% glycol
• Close-Off Pressure: 200 psi
• Flow Characteristic: A-port equal percentage, B-port modified for constant common port flow
• Operating Conditions: 0 F to 250 F (-18 C to 120 C)
• Weight: 0.90 lbs
