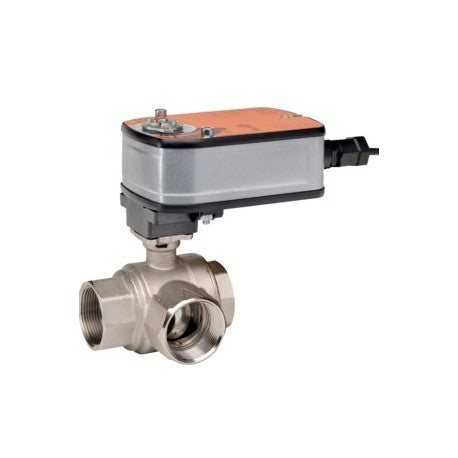

Belimo B315+LF24 CCV 0.5 3 Way 10 Cv w/ Spg Rtn 24V On/Off

Product Description

The Belimo B315+LF24 is a control valve designed for HVAC systems. This valve has a size of half an inch and utilizes a three-way pattern. It operates with a power supply of twenty-four volts and features a spring return actuator. The valve is suitable for both chilled and hot water systems up to sixty percent glycol.

• Three-way valve operation
• Spring return actuator type
• Compatible with chilled or hot water

Product Highlights

The Belimo B315+LF24 is essential for efficient flow control in HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B315+LF24

Technical Specifications

• Cv: 10
• Valve Size: 0.5 inches
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Angle of Rotation: 90 degrees
• End Fitting: Internal thread
• Pressure Independent: No
• Trim: Stainless steel
• Actuator Type: Spring return
• Degree of Protection: IP54 NEMA 2
• Electrical Connection: cable
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Running Time (Fail-safe): less than 25 seconds
• Running Time (Motor): 75 seconds at 90 degrees
• Voltage AC/DC: AC/DC 24 V
