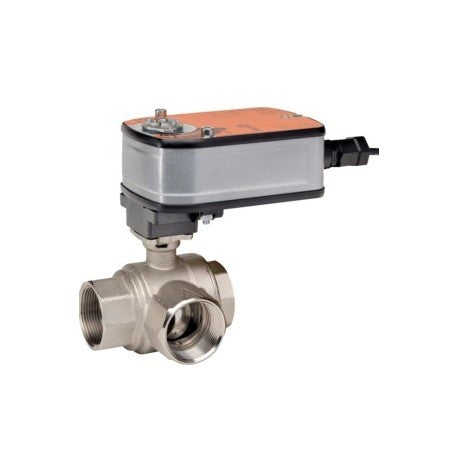

Belimo B315+LF120-S | CCV | 0.5 | 3 Way | 10 Cv | w/ Spg Rtn | 120V | On/Off | SW

Product Description

The Belimo B315+LF120-S is a three-way control valve designed for efficient fluid management. This model features a half-inch valve size and operates at a voltage of one hundred twenty volts. It is suitable for chilled or hot water applications, accommodating fluid containing up to sixty percent glycol. The spring return actuator ensures reliable operation.

• Three-way valve configuration
• Spring return actuator with auxiliary switch
• Suitable for various fluid types

Product Highlights

This valve is ideal for HVAC applications requiring reliable flow control.

Product Information

Standard Information

• Brand: Belimo
• MPN: B315+LF120-S

Technical Specifications

• Angle of Rotation: 90 degrees
• Controllable Flow Range: 75B0
• Cv: 10
• End Fitting: Internal thread
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Pressure Independent: No
• Trim: Stainless steel
• Valve Size: 0.5 inches
• Actuator Type: Spring return
• Auxiliary Switches: 1 x SPDT
• Degree of Protection: IP54 NEMA2
• Electrical Connection: Cable
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Fail-safe): Less than 25 seconds
• Running Time (Motor): 75 seconds / 90 degrees
• Voltage AC/DC: AC 120 V
