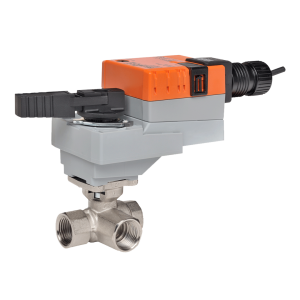

Belimo B311B+LRB24-SR-T CCV Assembly, 3 Way, 1/2 in. NPT, 1.9 Cv

Product Description

The Belimo B311B+LRB24-SR-T is a characterized control valve designed for efficient operation in HVAC systems. This three-way valve facilitates the regulation of chilled or hot water and supports a variety of control signals. It features a direct-coupled actuator suitable for 24 VAC/DC power sources.

• Modulating valve suitable for variable or constant flow systems.
• Chrome plated brass construction for durability.
• Designed for applications in air handling units, fan coil units, and hydronic systems.

Product Highlights

The B311B+LRB24-SR-T valve is ideal for use in heating or cooling coils, allowing for precise control and flexibility in various environments.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B311B+LRB24-SR-T

Technical Specifications

• Valve Size: 0.5 inches (15 mm)
• Cv: 1.9
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• Pattern: 3-way
• Control Type: DC 2...10 V
• Voltage: AC/DC 24 V
• Electrical Connection: Terminals
