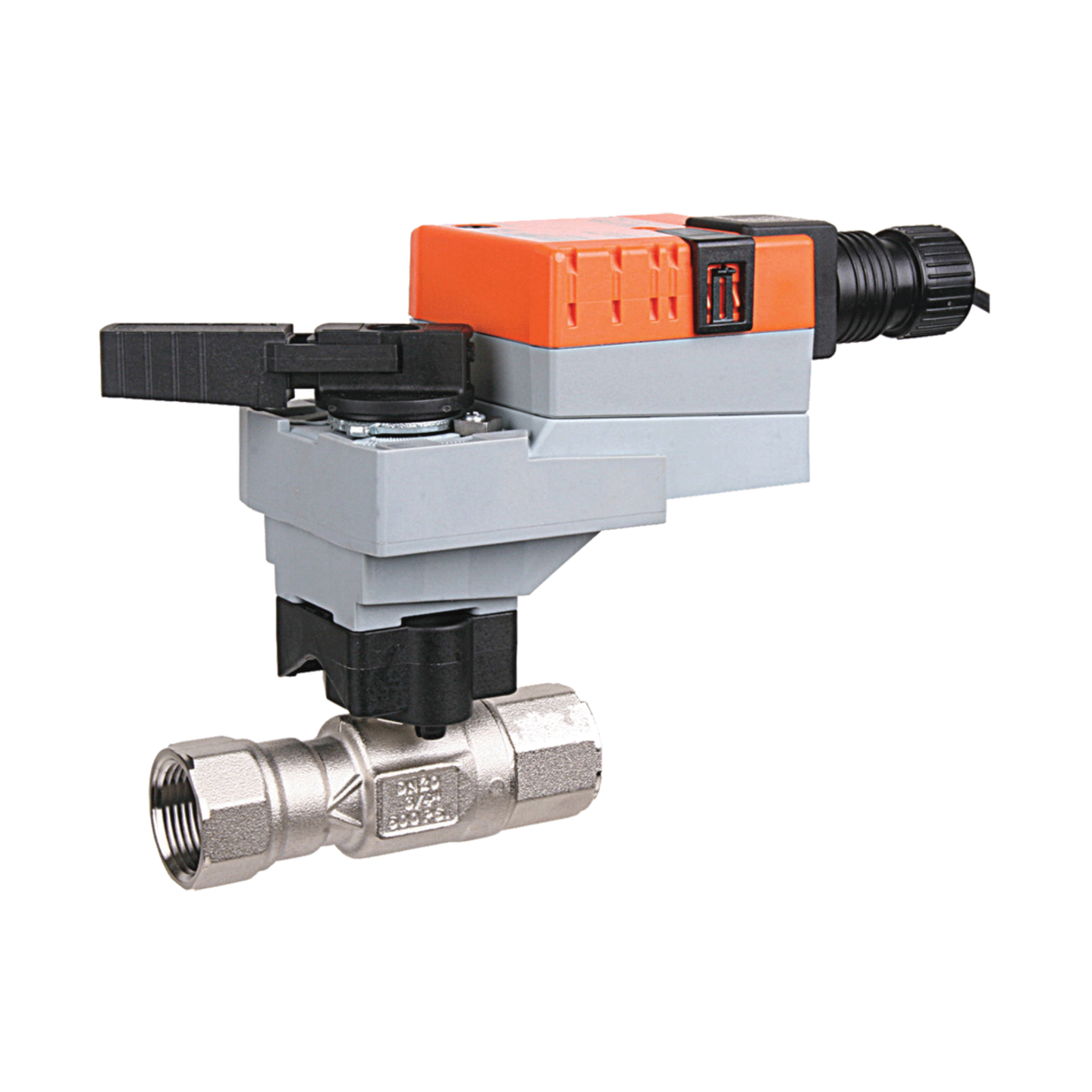

Belimo B225HT2800+LRB24-3 HTCCV Assembly 2 Way 28 Cv

Product Description

The Belimo B225HT2800+LRB24-3 is a 2-way control valve ideal for high-temperature applications. This valve features a nickel-plated brass body and stainless steel ball stem, ensuring durability and performance. The actuator operates on 24 VAC/DC and has a non-fail-safe mechanism, making it suitable for various HVAC systems.

• 28 Cv rating for enhanced flow control
• Direct coupled actuator with external manual override
• Compatible with high temperature hot water and low pressure steam

Product Highlights

This valve operates effectively in both heating and cooling applications, providing reliable temperature control.

Product Information

Standard Information

• Brand: Belimo
• Part Number: B225HT2800+LRB24-3

Technical Specifications

• Cv: 28
• Valve Size: 1 inch
• Fluid Compatibility: High temperature hot water/low pressure steam
• Actuator Type: Non fail-safe
• Control Type: Floating/3-point
• Angle of Rotation: 90 degrees
• Voltage AC/DC: 24 V
• Degree of Protection: IP54
