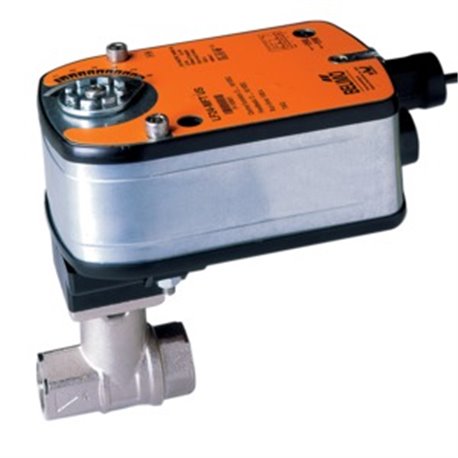

Belimo B217+LF24-S CCV 0.75 2 Way 4.7 Cv w/ Spg Rtn 24V On/Off SW

Product Description

The Belimo B217+LF24-S is a two-way control valve designed for various heating and cooling applications. It features a voltage of twenty-four volts with a spring-return actuator for effective control. Its compact size of 0.75 inches allows for easy installation in tight spaces.

• Two-way valve for efficient flow control
• Spring return actuator for reliable operation
• Compatible with chilled or hot water applications

Product Highlights

This valve is built to offer reliable performance, ensuring that your system operates efficiently. Its design includes stainless steel trim and internal thread fittings, making it suitable for both chilled and hot water systems, thus providing flexibility in various environments.

Product Information

Standard Information

• Brand: Belimo
• MPN: B217+LF24-S

Technical Specifications

• Valve Size: 0.75 inches
• Cv: 4.7
• Angle of Rotation: 90 degrees
• Fluid: Chilled or hot water up to 60% glycol
• Actuator Type: Spring return
• Voltage AC/DC: AC/DC 24 V
• Power Consumption (Holding): 2.5 W
• Power Consumption (Running): 5 W
• Degree of Protection: IP54 NEMA 2
