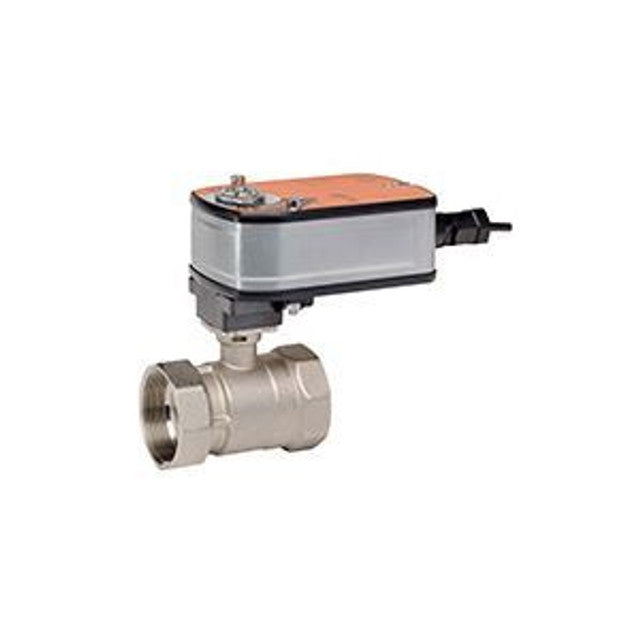

Belimo B213+LF120 CCV 0.5 2 Way 4.7 Cv w/ Spg Rtn 120V On/Off

Product Description

The Belimo B213+LF120 is a two-way control valve designed for heating and cooling applications. This valve features a size of half an inch and has a flow coefficient (Cv) of four point seven, making it suitable for various hydronic systems. The actuator has a spring return function, ensuring efficient operation. It's a reliable choice for air handling units, fan coil units, unit ventilators, and VAV box re-heat coils.

• Half-inch valve with a 4.7 Cv rating.
• Operates at 120 volts with an on/off function.
• Suitable for chilled or hot water applications.

Product Highlights

This valve is used in systems with variable flow, ensuring optimal performance in HVAC applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: B213+LF120

Technical Specifications

• Valve Size: 0.5 [15]
• Cv: 4.7
• End Fitting: Internal thread
• Fluid Compatibility: Chilled or hot water up to 60% glycol
• Pattern: 2-way
• Angle of Rotation: 90 degrees
• Actuator Type: Spring return
• Voltage: AC 120V
• Power Consumption (Holding): 3.5 W
• Power Consumption (Running): 5.5 W
• Running Time (Motor): 75 seconds / 90 degrees
• Degree of Protection: IP54 NEMA 2
