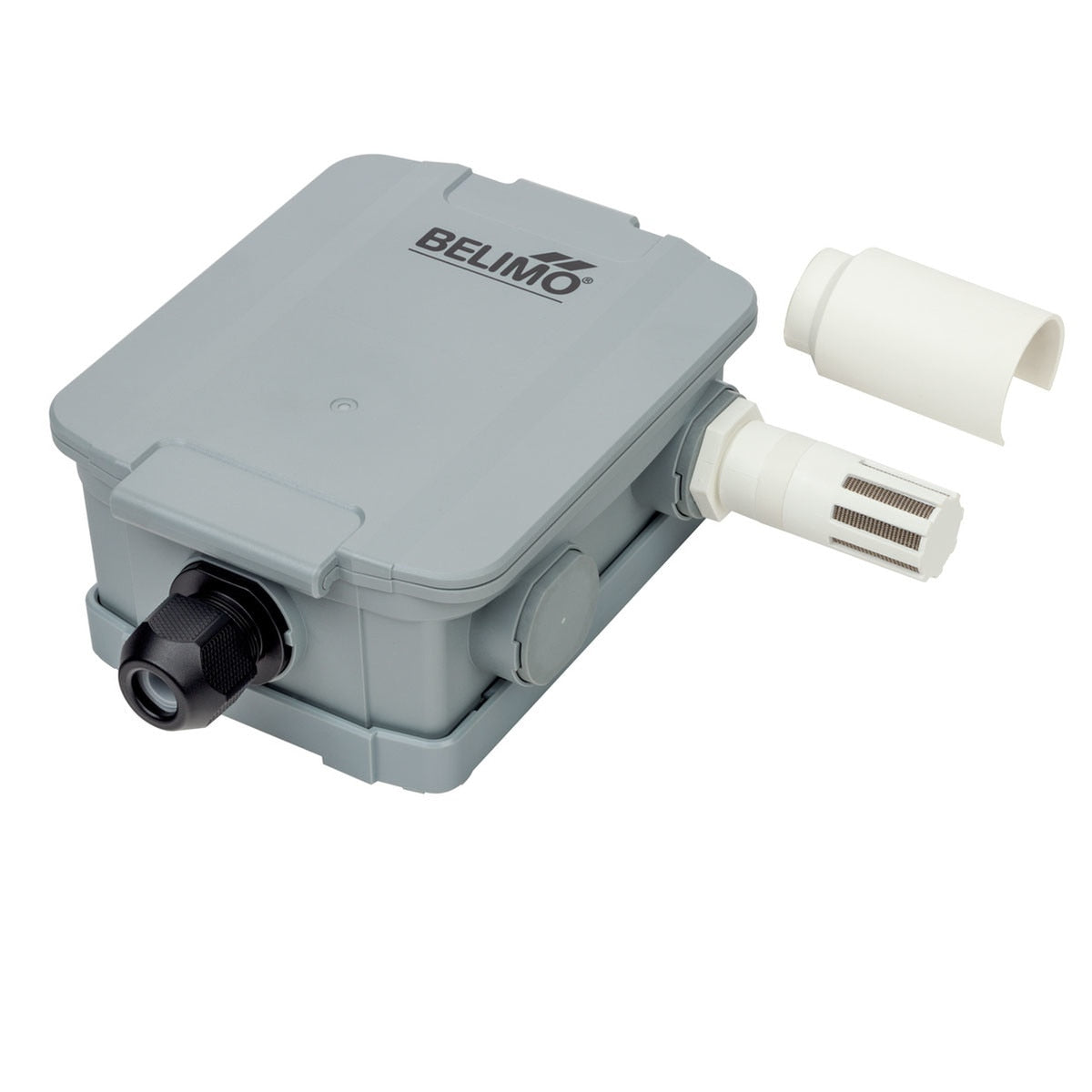

Belimo 22UTH-530X Outdoor Humidity And Temperature Sensor

Product Description

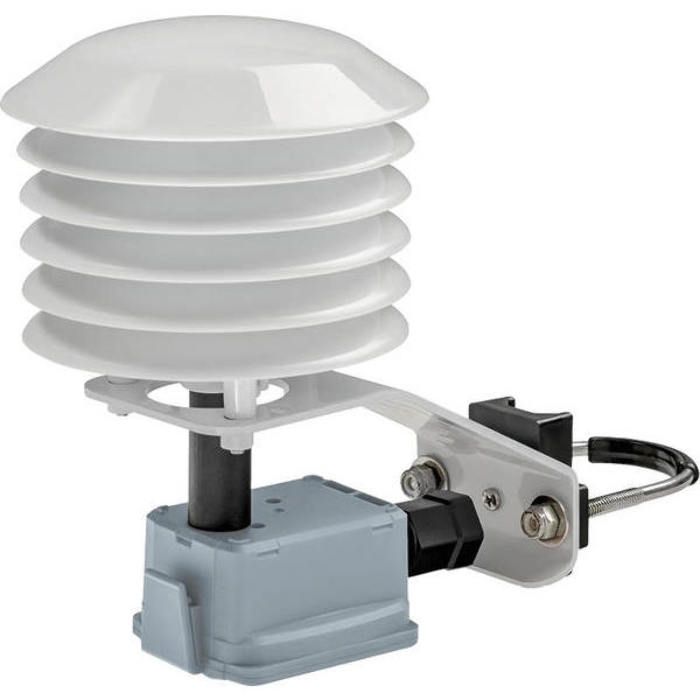

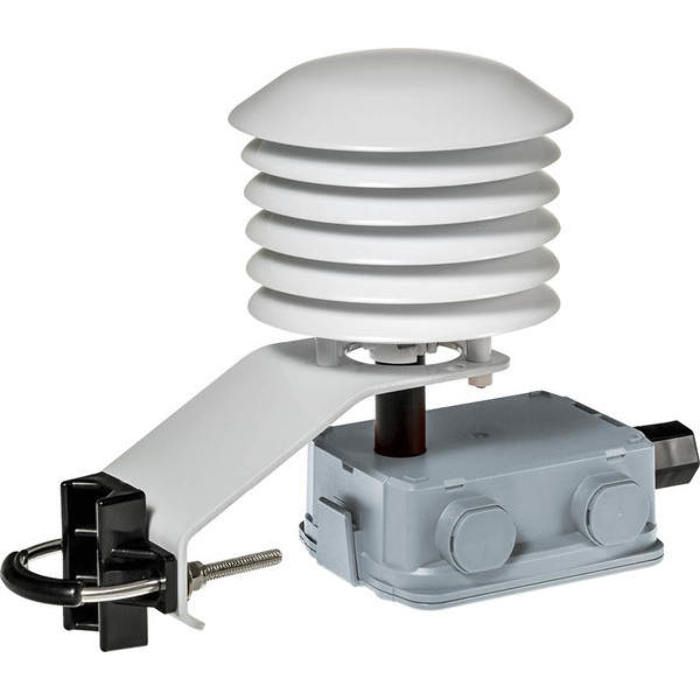

The BELIMO 22UTH-530X is an active humidity and temperature sensor designed for outside applications. The radiation shield protects the sensors from rain and radiated heat, while the curved shape and color of the plates allow airflow to move across the sensors. It features a NEMA 4X enclosure and provides a 4 to 20 mA output signal.

• Active Humidity And Temperature Sensor For Outside Applications.
• The Radiation Shield Protects The Outside Sensors From Rain And Radiated Heat.
• NEMA 4X/IP65 rated enclosure

Product Highlights

Outdoor humidity and temperature sensor with weather shield, ideal for economizer control, psychrometric calculations, and wash down applications.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: 22UTH-530X

Technical Specifications

• Mounting: Wall Mount
• Enclosure: NEMA 4X/ IP65
• Configuration: Outdoor
• Sensors Application: Humidity, Temperature
• Output Voltage Signal Range: 4 To 20 mA
• Degree of Protection: IP65 NEMA 4X
• Electrical Connection: terminals
• Measured Values: Temperature Humidity
• Measuring Range Humidity: 0...100% RH non-condensing
• Measuring Range Velocity: Max. 40 ft/s [12 m/s]
• Output Signal: 4...20 mA
• Product Type: Sensor
• Sensor Type: Humidity
• Voltage AC/DC: DC 24 V
• Type: Outdoor
• Accuracy: Humidity ±2% between 10 to 90% RH @ 70°F [21°C]
• Signal Type: 4-20mA
• Sensor Element: 10K Type 2 Thermistor
• Output: 4 - 20 mA
• Power Requirements: 24 VAC,24 VDC
• Application: Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
• Mount: OSA
• Measuring Range: Temperature Active sensor: range selectable
• Temperature: ±0.9°F @ 77°F [±0.5°C @ 25°C]
• Sensing Technology: Polymer capacitive sensor with stainless steel wire mesh
• Operating Humidity: 0 to 100% RH non-condensing
• Operating Temperature: -30°F to 120°F [-35°C to 50°C]
• Dimensions: 6.14"x 5.32"x 2.27"
• Approvals: ISO 9001, UL 2043, UL 50
• Weight: 0.21 lbs
• Warranty: 5 years
• Category: Outdoor
• Description: Active humidity and temperature sensor (4...20 mA) for outside applications. The radiation shield protects the outside sensors from rain and radiated heat. With the curved shape and color of the plates air flow is able to move across the sensors to keep radiated temperatures from rooftops and surrounding surfaces from affecting humidity readings.
