Description

Product Description

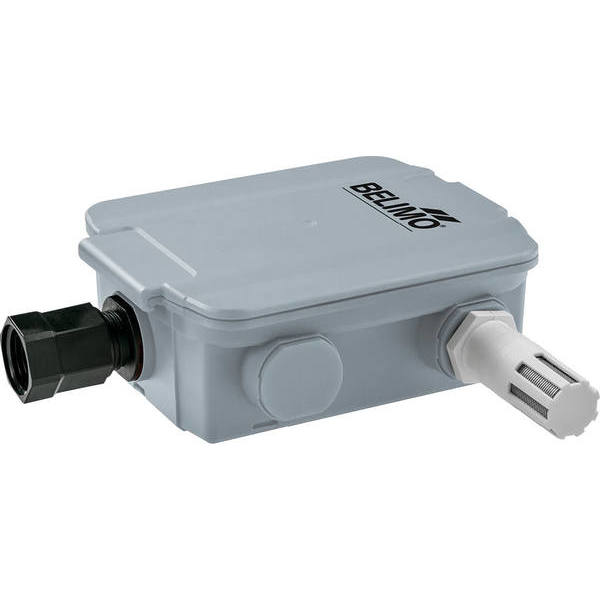

The Belimo 22UTH-510M is a genuine OEM replacement part. It is an outdoor sensor designed to measure humidity and temperature. The sensor features a polymer capacitive sensor with stainless steel wire mesh, ensuring accurate readings. It operates at AC/DC 24 V power supply and comes with a pluggable spring-loaded terminal block for electrical connections.

  • Outdoor sensor with a weather shield
  • Measures relative or absolute humidity and temperature
  • Polymer capacitive sensor with stainless steel wire mesh

Product Highlights

This Belimo outdoor sensor accurately measures humidity and temperature, featuring multiple voltage outputs and a durable NEMA 4X / IP65 rated housing.

Product Information

Standard Information

  • Brand: BELIMO
  • Manufacturer Part Number: 22UTH-510M
Technical Specifications
Voltage AC/DC
AC/DC 24 V
Electrical Connection
Terminals
Measured Values
Temperature, Humidity
Output Signal
0...5 V, 0...10 V, NTC10k3 (Precon)
Measuring Range Humidity
0...100% RH non-condensing
Output Voltage [Range]
1 x 0...5 V, 0...10 V, min. resistance 10 kΩ
Output signal passive temperature
Pt1000|Ni1000 (JCI)|NTC10k2|NTC10k3|NTC20k
Output signal active note
output 0...5/10 V with jumper adjustable
Measuring Range Temperature
-30...120°F [-35...50°C]
Sensor Type
Outside Air
Humidity Element
2%
Humidity Ouput
0-5 VDC, or 0-10 VDC
Temperature Element
10K Type III
Display
No Display
Enclosure
NEMA 4X Enclosure
Accuracy
2%
Housing Material
Poly
Sensor Element
10K Type 3 Thermistor
Output
0 - 5 VDC
Power Requirements
24 VAC/VDC
Application
Outdoor Air Humidity,Economizer Control,Psychrometric Calculations,Enthalpy,Dew Point,Wash Down Applications
Mount
OSA
Measuring range temperature active note
Active sensor: range selectable|Attention: max. measuring temperature is restricted by max. medium temperature (see Safety data)
Jumper setting note
the adjustment of the measuring ranges is made by changing the bonding jumpers|the output value in the new measuring range is available after 2 seconds
Accuracy temperature active
±0.9°F @ 77°F [±0.5°C @ 25°C]
Accuracy temperature passive
passive sensors depending on used type Ni.. = ±0.7°F @ 32°F [±0.4°C @ 0°C] NTC.. = ±0.3°F @ 77°F [±0.2°C @ 25°C]
Accuracy humidity
±2% between 10 to 90% r.H. @ 70°F [21°C]
Sensor Technology
polymer capacitive sensor with stainless steel wire mesh
Cable gland
PA6, black
Medium temperature
-30...120°F [-35...50°C]
Ambient temperature
-30...120°F [-35...50°C]
Output signal active humidity
DC 0...5 V|DC 0...10 V
Power supply DC
15...24 V
Power supply tolerance DC
±10%
Power consumption DC
0.3 W
Power supply AC
24 V
Power supply tolerance AC
±10%
Power consumption AC
0.5 VA
Build-up of self-heating remark
Remark: Occurring draft leads to a better carrying-off of dissipative power at the sensor. Thus temporally limited fluctuations might occur upon temperature measurement.
Measuring range enthalpy
0...85 kJ/kg
Measuring range dew point
adjustable at the transducer:|40...140°F [0...50°C] (default setting)|0...200°F [-20...80°C]
Measuring range absolute humidity
adjustable at the transducer:|0...50 g/m³ (default setting)|0...80 g/m³
Measuring values
temperature|relative humidity|dew point|enthalpy|absolute humidity
Sensor type
humidity
Housing type
Outdoor
Sensor powertype
active
Cable entry
Cable gland with strain relief Ø6...8 mm (1/2" NPT conduit adapter included)
Electrical connection note
Removable spring loaded terminal block max. 2.5 mm²
Ambient humidity
max. 95% r.H. non-condensing
Degree of protection IEC/EN
IP65
Degree of Protection
IP65,
Certification IEC/EN
IEC/EN 60730-1
Certification UL
cULus acc. to UL60730-1A/-2-9/-2-13, CAN/CSA E60730-1:02/-2-9
Protection class IEC/EN
III safety extra-low voltage (selv)
Protection class UL
UL Class 2 Supply
Quality Standard
ISO 9001
Material short text
Outdoor Temp+Hum Sensor NTC10kP V
Output signal
DC 0...5 V DC 0...10 V
Housing
cover: lexan, gray|base: lexan, gray|seal: 0467 NBR70, black
Connection
terminals
Product family
Sensor
CAD data 3D
Belimo_22UTH-5.._3D.stp
Measuring range temperature passive note
passive sensor:
Application notice humidity sensors
Refrain from touching the sensitive humidity sensor/element. Touching the sensitive surface will void warranty.
Build-up of self-heating
Temperature sensors with electronic components always have a dissipative power which affects the temperature measurement of the ambient air.
