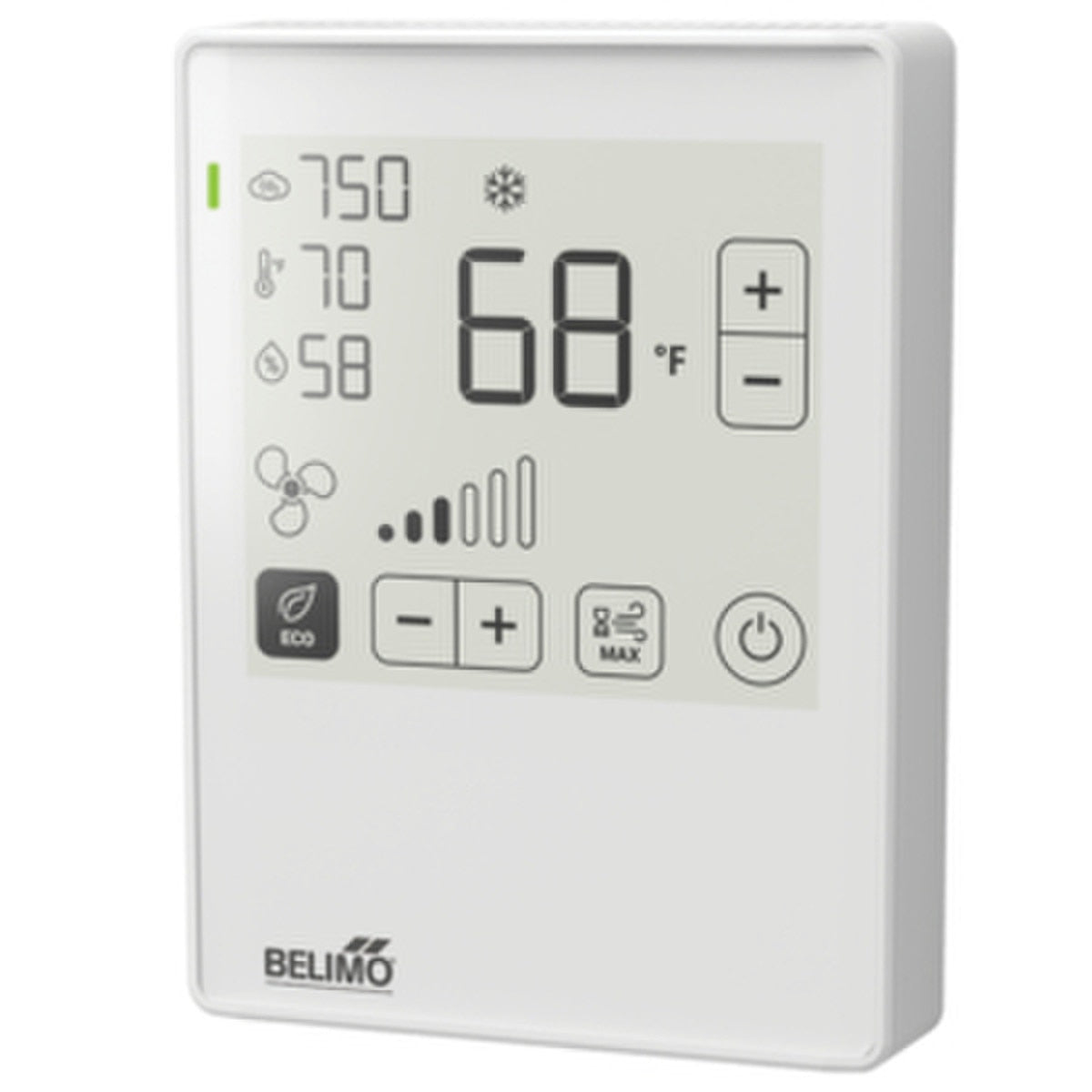

Belimo 22RT-5900D Room Sensor Temperature Active 24V AC/DC

Product Description

The BELIMO 22RT-5900D is an active room sensor designed for measuring temperature, humidity, and CO₂ in a room. It features NFC, MP-Bus communication, and an ePaper touch display with LED. This sensor provides multiple output signals including 0-5 V, 0-10 V, and 2-10 V, allowing seamless integration with third-party controllers. Commissioning and parameterization are facilitated via the Belimo Assistant App. The high-contrast ePaper display ensures clear readability and intuitive operation, suitable for various applications. It operates on AC/DC 24 V.

• Measures temperature, humidity, and CO₂ in the room for regulation and ventilation.
• Features NFC for convenient commissioning and parameterization via Belimo Assistant App.
• ePaper touch display and LED provides intuitive operation and clear readability with MP-Bus communication and integrated analog outputs.

Product Highlights

Active room sensor with NFC, MP-Bus, and ePaper touch display for temperature, humidity, and CO₂ measurement.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: 22RT-5900D

Technical Specifications

• Unit Type: Room sensor with setpoint
• Application: Room
• Sensor Type: Air quality
• Display Type: ePaper touch display and LED
• Product Type: Sensor
• Mounting Type: Room
• Output Signal: 0-5 V, 0-10 V, 2-10 V, MP-Bus
• Input Voltage: AC/DC 24 V
• Measured Values: Temperature
• Communication: NFC, MP-Bus
• Protection Rating: IP30, NEMA 1
• Electrical Connection: terminals
• Temperature Measuring Range: 32-122°F [0-50°C]
• Housing Material: PC
• Temperature Accuracy: ±0.3°C @ 25°C [±0.5°F @ 77°F]
• Setpoint Adjustment: Yes (via Display App or ePaper touch)
• Input Voltage Range: 19.2-28.8 V (AC or DC)
• Power Consumption: 1 VA AC / 0.5 W DC
• Cable Entry: Back, top, and bottom side
• Ambient Temperature Range: 32-122°F [0-50°C]
• Ambient Humidity: Max 95% RH, non-condensing
• Storage Temperature Range: -40-160°F [-40-70°C]
• Display Size: 2.72 x 2.44 in [69 x 62 mm]
• Certifications: UL/cULus per UL60730-1, IEC/EN 60730-1, CE, ISO 9001
• Temperature Element: Transmitter
• Humidity Element: None
• CO2 Element: None
• Override Function: No Override
• Color: White (RAL 9003)
