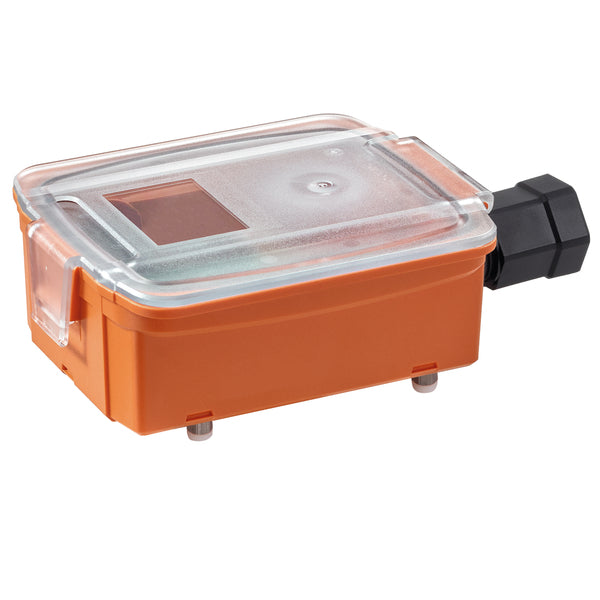

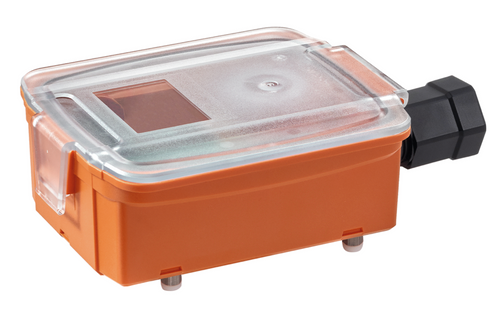

Belimo 22HL-502 Leakage Switch Active, Auto Reset, LED

Product Description

The BELIMO 22HL-502 is a leakage switch that is active and features an auto reset and LED indicator. It is designed for alarm, control and monitoring applications of containers, false floors, suspended ceilings or rooms to prevent unintended leakage. Parts included: cable tie, dowels, screws.

• For detection of liquid leakage
• Changeover relay contact for control of control and display systems
• Provision takes place automatically after drying off of the contacts

Product Highlights

The BELIMO 22HL-502 leakage switch is designed to prevent unintended leakage with alarm, control, and monitoring applications.

Product Information

Standard Information

• Brand: BELIMO
• Manufacturer Part Number: 22HL-502

Technical Specifications

• Voltage AC/DC: AC/DC 24 V
• Electrical Connection: Terminals
• Measured Values: Leakage detection
• Output Signal: Switch
• Output signal leakage detector switch note: 2x SPDT, dry contact
• Max. switching current: 3 A @ 24 V
• Min. switching current: 3 mA @ 10 V

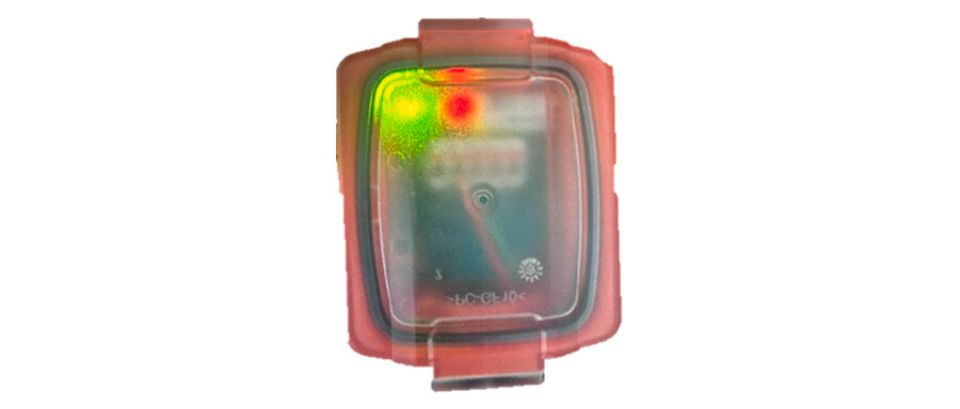

• Display Type: LED
• Probe Sensor: Attached Sensor
• Item Number: 22HL-502
• Brand: Belimo
