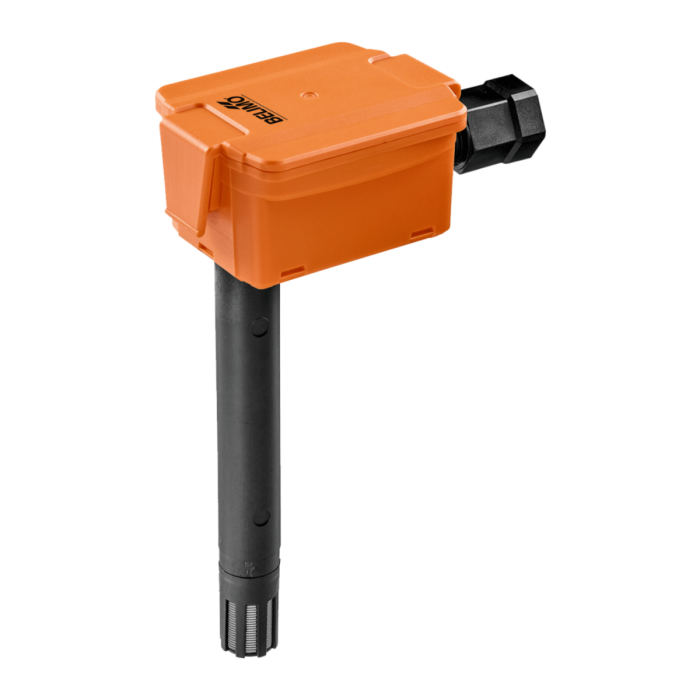

Belimo 22DTH-51MQ Duct Humidity And Temperature Sensor

Product Description

The Belimo 22DTH-51MQ is a duct humidity and temperature sensor designed for measuring both relative humidity and temperature in HVAC duct applications. This sensor provides accurate readings and is suitable for various measurement needs. It features an output signal that can be selected based on the application, ensuring flexibility.

• Suitable for measuring humidity and temperature in duct systems
• Offers options for enthalpy or dew point signal output
• Durable NEMA 4X enclosure for added protection

Product Highlights

This sensor is built for performance in HVAC settings, emphasizing reliability and ease of use.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 22DTH-51MQ

Technical Specifications

• Application: Duct
• Sensor Type: Humidity, Temperature
• Mounting Type: Duct Mount
• Output Voltage Signal Range: 0 To 5 V, 0 To 10 V
• Probe Length: 5.5 inches (140 mm)
• Enclosure: NEMA 4X
• Measuring Range Humidity: 0 To 100% RH non-condensing
• Measuring Range Temperature: -30 To 160 °F (-35 To 70 °C)
