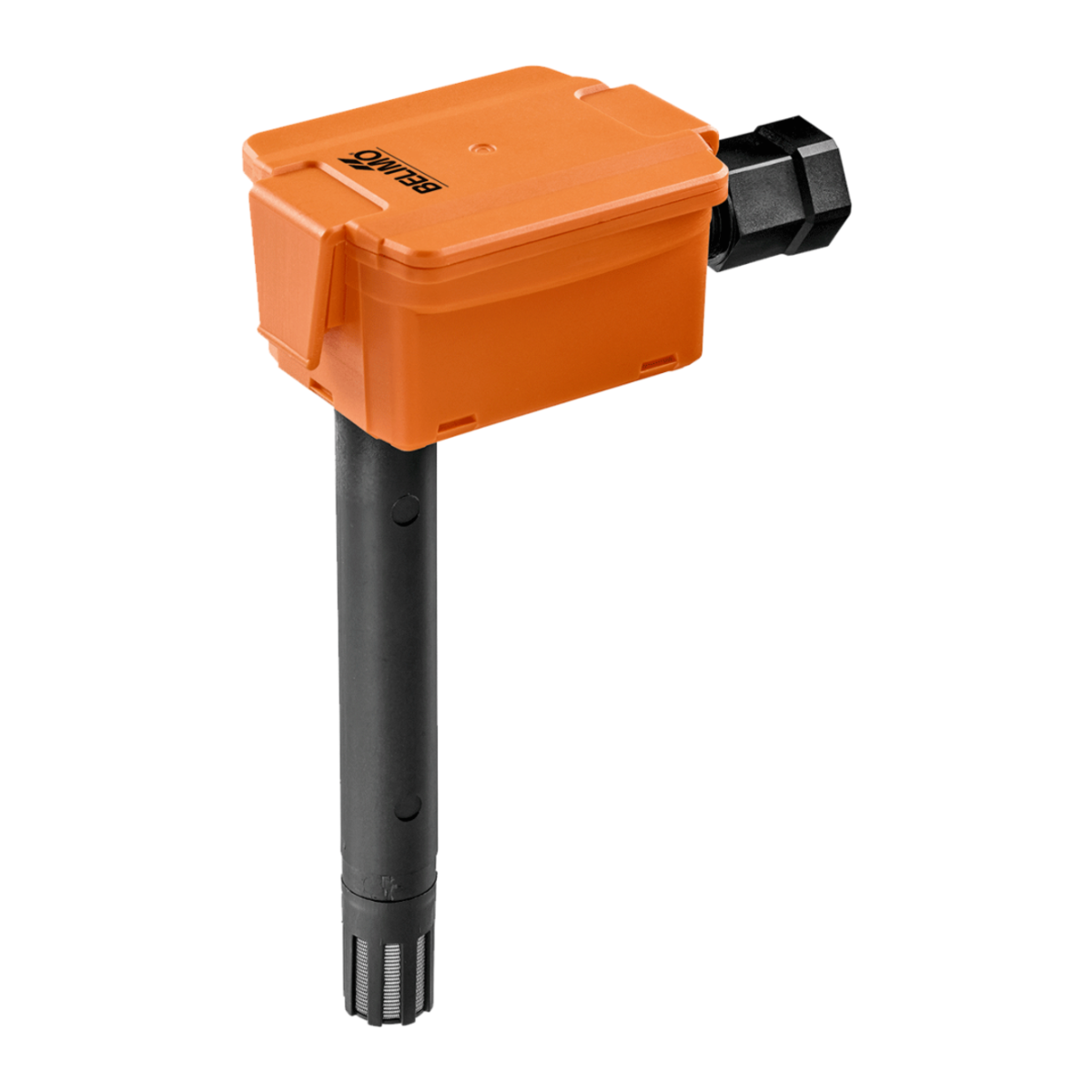

Belimo 22DTH-51ME Duct Humidity And Temperature Sensor

Product Description

The Belimo 22DTH-51ME is a duct humidity and temperature sensor designed for use in HVAC systems. This sensor measures relative and absolute humidity as well as temperature in duct applications. It features a passive temperature output signal using Ni1000 technology and offers both 0 to 5 VDC and 0 to 10 VDC active humidity output signals. The sensor is enclosed in a NEMA 4X rating for protection against harsh conditions.

• Compatible with various mounting configurations
• Provides accurate readings in a wide temperature range
• Field-selectable output signals

Product Highlights

The Belimo 22DTH-51ME features durability, flexibility, and reliable performance for HVAC systems.

Product Information

Standard Information

• Brand: Belimo
• Part Number: 22DTH-51ME

Technical Specifications

• Mounting: Duct Mount
• Enclosure: NEMA 4X
• Probe Length: 5.5 inches (140 mm)
• Configuration: Duct
• Sensors Application: Humidity, Temperature
• Temperature Sensor Type: 1K Nickel
• Output Voltage Signal Range: 0 to 5 V, 0 to 10 V
