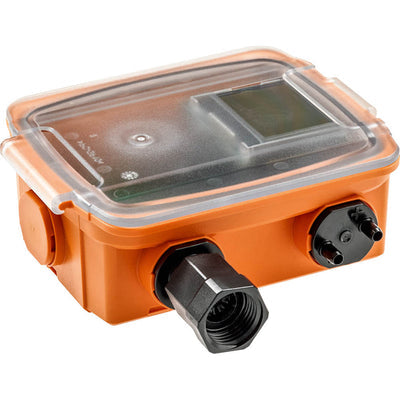

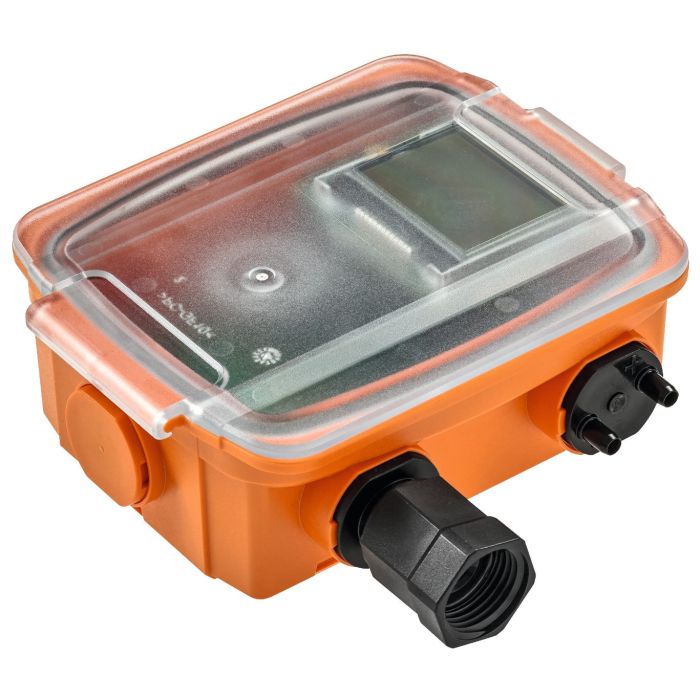

Belimo 22ADP-58QB Differential Pressure Sensor 28 in. WC 250 LCD MULT AZ

Product Description

The Belimo 22ADP-58QB is a differential pressure sensor designed for HVAC systems. It measures differential pressure of air and other non-flammable gases, making it suitable for various applications.

• 28 inches WC measurement range
• Output options: 0 to 5 VDC, 0 to 10 VDC, 4 to 20 mA
• Includes an LCD display and auto-zero feature

Product Highlights

This sensor is essential for monitoring air filters, fans, and control of air dampers. It fits in NEMA 4X rated enclosures and provides reliable readings in challenging environments.

Product Information

Standard Information

• Brand: Belimo
• Part #: 22ADP-58QB

Technical Specifications

• Measured Values: Differential pressure
• Measuring Range Pressure: -0.6 to 1 inch WC
• Output Signal: 0 to 5 V, 0 to 10 V, 4 to 20 mA
• Voltage AC/DC: AC/DC 24 V
• Display Type: LCD
• Degree of Protection: IP65 NEMA 4X
• Electrical Connection: Terminals
• Mounting Type: Single Point
