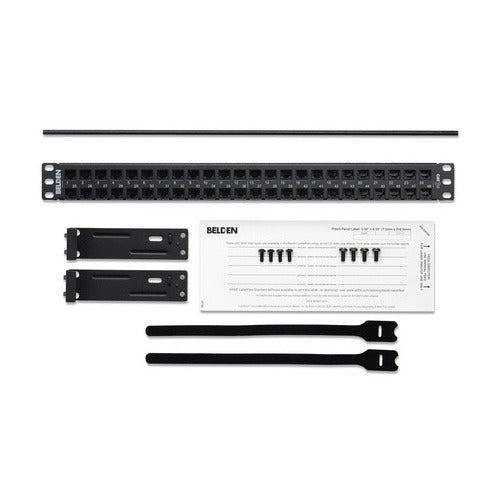

Belden Inc. AX104591 Keystone Patch Panel 48-port 1U

Product Description

The BELDEN INC. AX104591 is a 48-port, 1U keystone patch panel designed for structured cabling installations in network distribution frames and equipment racks. It accepts standard keystone jacks, allowing technicians to configure the panel for Cat5e, Cat6, Cat6A, or fiber applications depending on the jacks installed. The black finish provides a clean, professional appearance in open-frame and enclosed rack environments. Network technicians and low-voltage cabling contractors install this panel as a central termination point for horizontal runs in data rooms, server closets, and telecommunications rooms.

This patch panel is suited for commercial and enterprise network infrastructure where a high port-density, 1U solution is required. The 48-port layout maximizes rack space efficiency, making it a practical choice for densely populated patch fields. It is sold as a blank panel without keystone jacks, so field technicians select and populate jacks to match the specific cabling standard and connector type required for each installation.

Key Features

• 48 keystone jack slots in a single 1U rack form factor for high-density termination
• Tool-free keystone jack installation — jacks snap in without additional hardware
• Blank panel design allows mixed-media configurations across ports
• Black finish suits standard rack and enclosure aesthetics
• Compatible with all standard 19-inch EIA rack systems

Compatibility

Designed as an OEM-style replacement or new-install patch panel for standard 19-inch EIA equipment racks and two-post or four-post open-frame rack systems accepting 1U accessories.

Installation Notes

Installation is typically performed by a licensed low-voltage cabling contractor or network technician. Power down or disconnect active equipment in the rack before routing cables to avoid accidental disconnection of live circuits. Secure the panel to the rack using the appropriate cage nuts and screws for the rack type before populating keystone jacks. Labeling each port at the time of jack installation is strongly recommended to support ongoing moves, adds, and changes.
