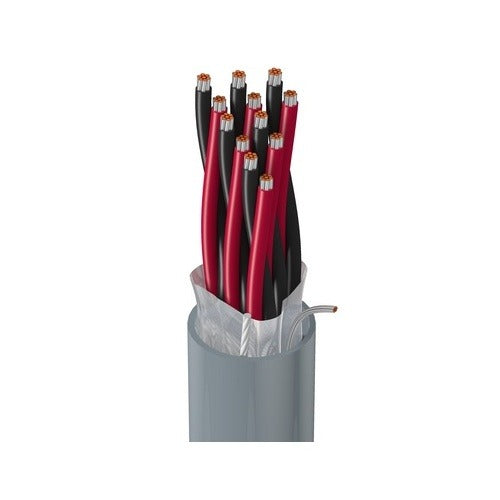

Belden Inc. 9516 060500 Multimedia Cable 22 Awg 6 Pair

Product Description

The BELDEN INC. 9516 060500 is a 6-pair, 22 AWG multimedia cable constructed with PVC insulation and a foil shield (FS) outer jacket. Designed for low-voltage signal and control wiring applications, this cable delivers reliable noise rejection and signal integrity in environments where electromagnetic interference is a concern. The foil shield provides continuous 100 percent coverage, making it well suited for instrumentation, audio, data, and intercom runs in commercial and light industrial settings. Licensed electricians and low-voltage systems technicians are the primary installers of this cable type.

This cable is commonly used in commercial buildings, industrial facilities, and institutional environments for structured wiring, intercom systems, security systems, and building automation control circuits. The 6-pair configuration supports multiple signal channels within a single cable run, reducing conduit fill and simplifying termination. The PVC jacket holds up in standard indoor dry or damp locations where mechanical abuse is not a primary concern.

Key Features

• 6 twisted pairs at 22 AWG for multi-channel low-voltage signal transmission
• Foil shield construction for continuous EMI and RFI noise rejection
• PVC insulation and PVC outer jacket rated for standard indoor environments
• Sold as individual unit (each) per supplier unit of measure

Compatibility

Designed as an OEM-style multipair shielded cable for use in low-voltage control, instrumentation, intercom, and multimedia wiring applications in commercial and light industrial installations.

Installation Notes

Installation should be performed by a licensed electrician or certified low-voltage technician in accordance with applicable NEC requirements for the intended circuit class. Maintain minimum bend radius during routing to avoid damaging the foil shield or conductor pairs. Terminate the drain wire to a proper earth ground at one end only to prevent ground loops in signal circuits. De-energize all associated control circuits before splicing or terminating this cable.
