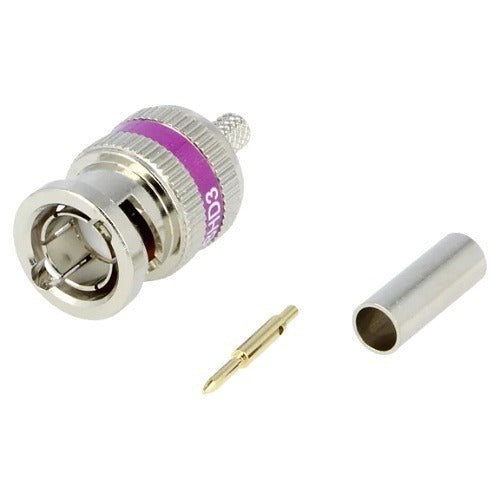

Belden Inc. 1855ABHD3 Mini RG-59 Hd Bnc 6 Ghz

Product Description

The BELDEN INC. 1855ABHD3 is a mini RG-59 HD BNC connector rated for signals up to 6 GHz. It is designed for use with miniature RG-59 coaxial cable and provides a reliable, low-loss termination point in high-definition video signal chains. The BNC-style interface delivers a secure twist-lock connection that resists accidental disconnection during installation and service. This connector is suited for AV integrators, broadcast technicians, and low-voltage installers working on professional video distribution systems.

This connector is used in residential and commercial AV installations where miniature coaxial cable carries HD-SDI, 4K, or other high-definition video signals. Typical applications include patch bays, production environments, security camera runs, and structured media installations where compact connector profiles are required. It is sold and installed as a single unit.

Key Features

• Rated to 6 GHz for compatibility with HD and ultra-HD video signal formats
• Mini RG-59 form factor keeps connector footprint compact in dense wiring environments
• BNC twist-lock interface provides a secure, tool-free mating connection
• Designed for use in AV modular connector and insert applications
• Sold individually, one connector per unit

Compatibility

Designed as an OEM-style termination connector for mini RG-59 coaxial cable in professional AV and broadcast video distribution systems.

Installation Notes

Installation should be performed by a qualified low-voltage technician or AV integrator familiar with coaxial cable preparation and BNC termination procedures. Proper cable stripping dimensions for mini RG-59 should be followed to ensure full conductor engagement and signal integrity. De-energize all associated signal equipment before terminating or re-terminating connectors. Consult applicable low-voltage wiring codes and manufacturer cable preparation guidelines before installation.
