Belden 10GXW12 0091000 Cat6A UTP 4 Pair 23 AWG Solid (1000 ft Reel) Replacement 10GX12

Brand: BELDEN
SKU: 10GXW12 0091000
Availability: In Stock

Ships same day if ordered by 12 pm
$1,176.88
$1,176.88
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

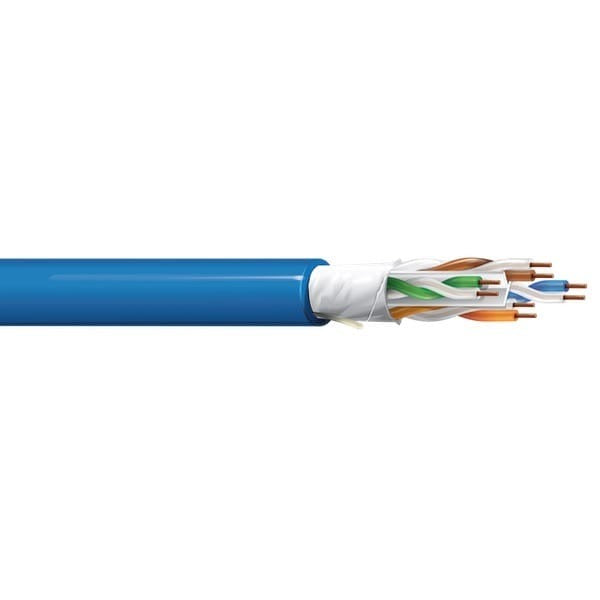

Belden 10GXW12 0091000 is a Category 6A unshielded twisted pair (UTP) data cable supplied on a 1,000 ft reel. It uses four pairs of 23 AWG solid bare copper conductors with a 0.25 in overall diameter and a riser-rated (CMR) PVC jacket. The cable is intended for premise horizontal data installations and supports 10GBASE-T, high-speed wireless (Wi-Fi 6/5), in-building wireless and PoE up to PoE++.

  • Category 6A U/UTP construction with four 23 AWG solid bare copper pairs and 0.25 in overall diameter
  • Riser-rated (CMR) PVC jacket supplied on a 1,000 ft reel with ripcord for jacket removal
  • Patented T-Spline center member with EquiBlock barrier, supports 10GBASE-T, Wi-Fi 6/5, in-building wireless and PoE up to PoE++

Product Highlights

Category 6A U/UTP data cable, 4 pair 23 AWG solid, riser (CMR) PVC jacket, 1,000 ft reel

Product Information

Standard Information

  • Brand: BELDEN
  • Manufacturer Part Number: 10GXW12 0091000
  • Country of Origin: Unknown
Technical Specifications
Brand
BELDEN
Manufacturer Part Number
10GXW12 0091000
Replacement For
10GX12
Category
Category 6A
Conductor Size
23 AWG
Conductor Type
Solid
Conductor Material
Bare Copper
Number of Pairs
4
Shielding
U/UTP (Unshielded Twisted Pair)
Pair Construction
Non-bonded pair
Insulation Material
Polyolefin
Separator / Center Member
Patented T-Spline center member with EquiBlock barrier
Jacket Material
PVC (Polyvinyl Chloride)
Jacket Rating
Riser (CMR)
Overall Diameter
0.25 in
Length
1,000 ft
Ripcord
Yes
Max Conductor DCR
82 Ohm/km (25 Ohm/1000 ft)
Max Capacitance Unbalance
45 pF/100 m
UL Voltage Rating
300 V (CMR)
UL Operating Temperature
90 C
Installation Temperature Range
0 C to +50 C
Storage Temperature Range
-20 C to +75 C
Bend Radius (Stationary Min.)
1 in (25 mm)
Max Pull Tension
25 lbs (11 kg)
Bulk Cable Weight
31 lbs / 1000 ft
Frequency
500 MHz
Applications
Premise horizontal cable, 10GBASE-T Ethernet, Wi-Fi 6/5, in-building wireless, small cells, mobile RAN, PoE up to PoE++
Standards / Compliance
ANSI/TIA-568.2-D Category 6A; ISO/IEC 11801-1; IEC 61156-5
IEEE Compliance
IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
CPR Euroclass
Eca
RoHS Compliance
RoHS compliant
UNSPSC Code
26121609
