Product Description

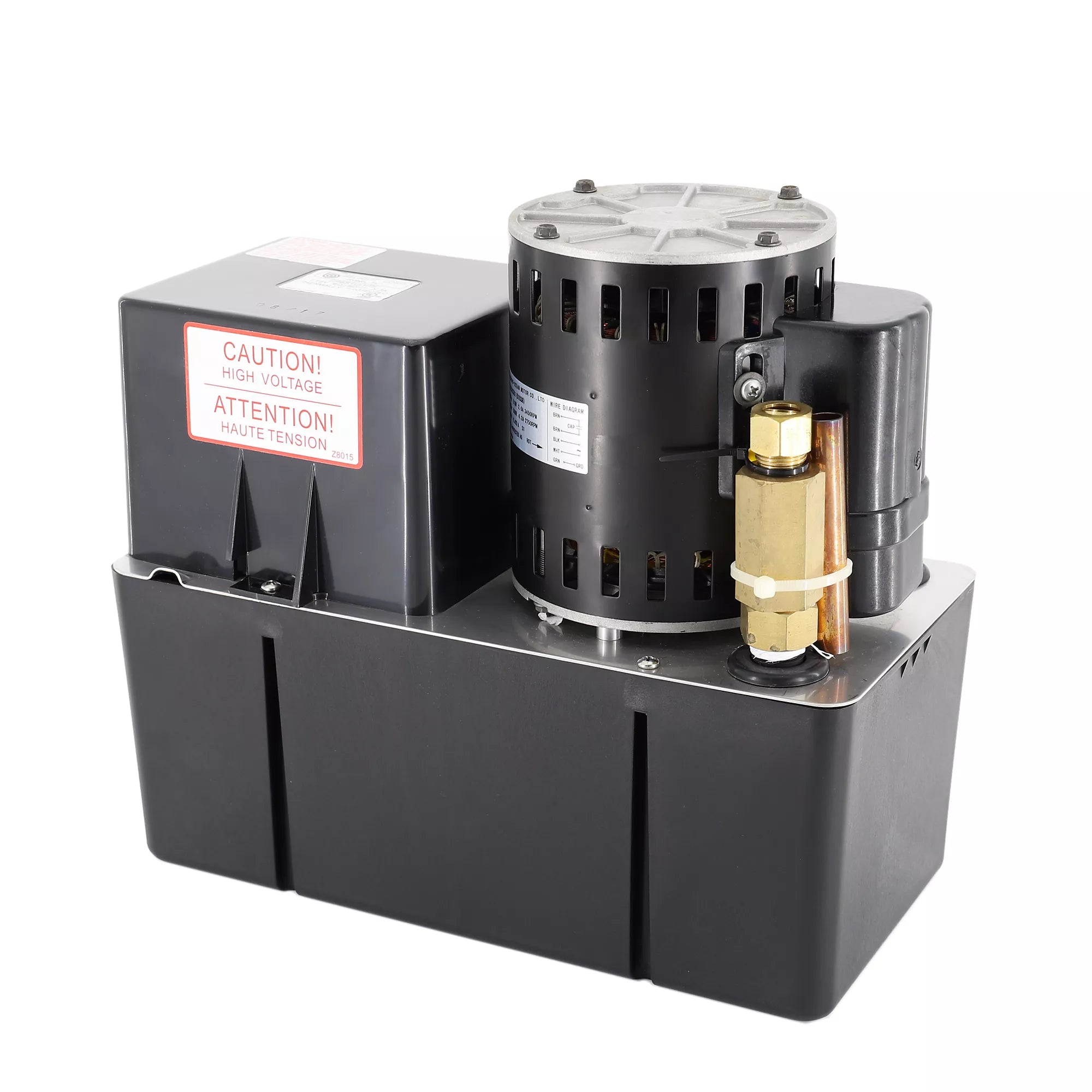

The BECKETT CB504ULHTS condensate pump is designed to meet demanding job requirements. Engineered for user-friendliness, this pump features a modern design adhering to high-quality standards. It is rated at 460 VAC, 60 Hz, and is UL/CUL listed. The pump includes a 6' cord set and a patented airflow design for quiet operation and heat reduction.
- Designed to meet or exceed tough job demands.
- Features a patented airflow design for quiet operation and heat reduction.

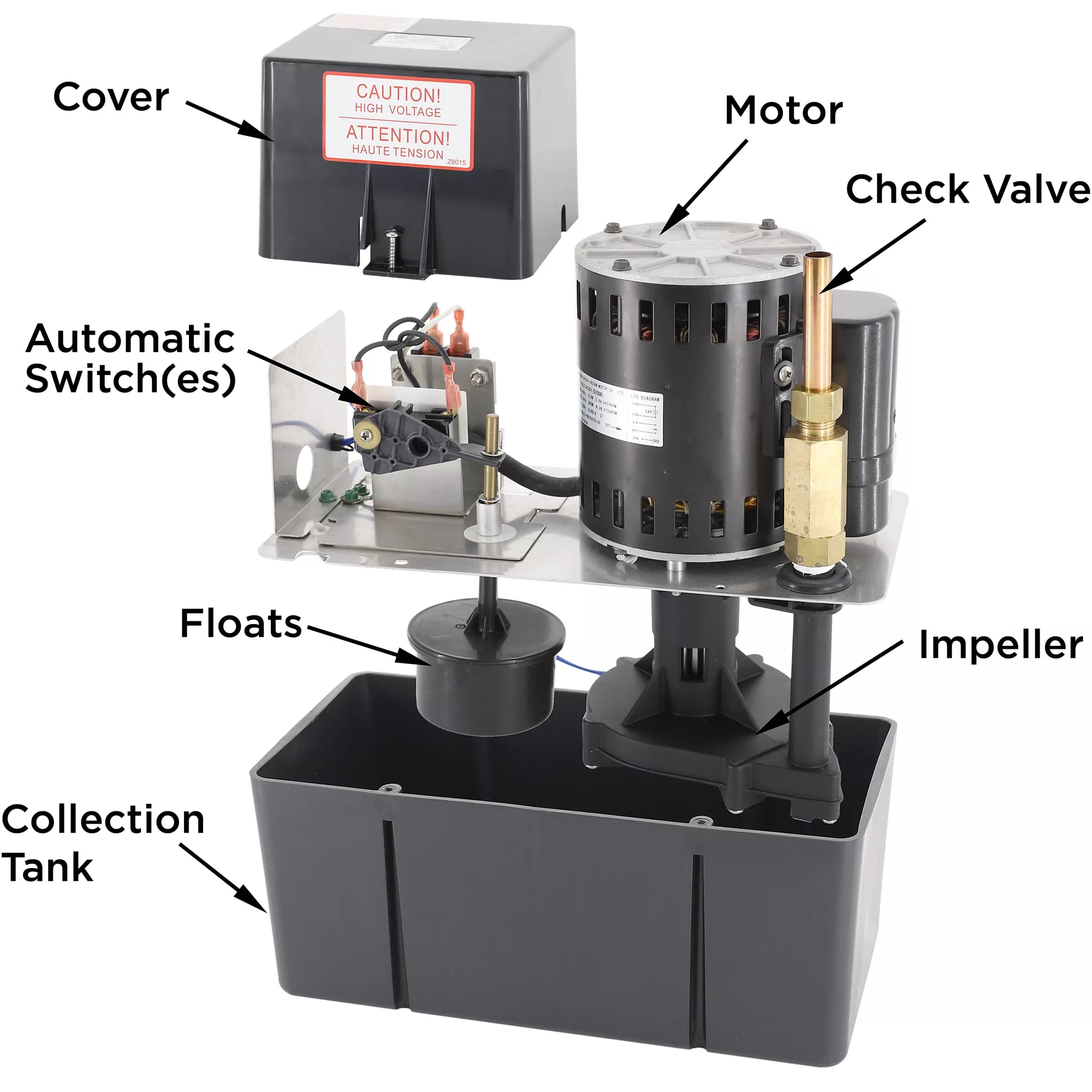

- Includes a dual-float design for increased safety.
Product Highlights
This condensate pump is designed for efficient and quiet operation, ensuring durability and reliability for demanding applications.
Product Information
Standard Information
-
Brand: BECKETT
-
Manufacturer Part Number: CB504ULHTS
-
Country of Origin: CHN
Technical Specifications
-
Amps: 0.8
-
Brand: Beckett
-
Check Valve: Yes
-
Connection Size: 1/2"
-
Cycle/Hertz: 60 Hz
-
Discharge: 1/2"
-
Float Material: Polypropylene
-
Gallons Per Hour Of Water: 420
-
Height: 10.2
-
Length: 12
-
Maximum Pressure (PSI): 21.6
-
Maximum Temperature: 212°F (100°C)
-
Motor HP: 1/5 HP
-
Prop 65: Yes
-
Safety Switch: Yes
-
Shut Off (Ft.): 50'
-
Tank Size: 1 Gallon
-
UL Listed: Yes
-
UL Recognized: Yes
-
Voltage: 460 VAC
-
Watts: 350
-
Width: 6
-
Country of Origin: CHN
-
Product Type: Large High Temperature
-
End Connection: 1/2IN Barb
-
Material: ABS Plastic
-
Reservoir Capacity: 1L
-
Discharge Head: 50FT
-
Application: Condensate (HVAC)
-
Condensate Type: High Temperature, Pump - Best Sellers
-
Pump Size: Large
-

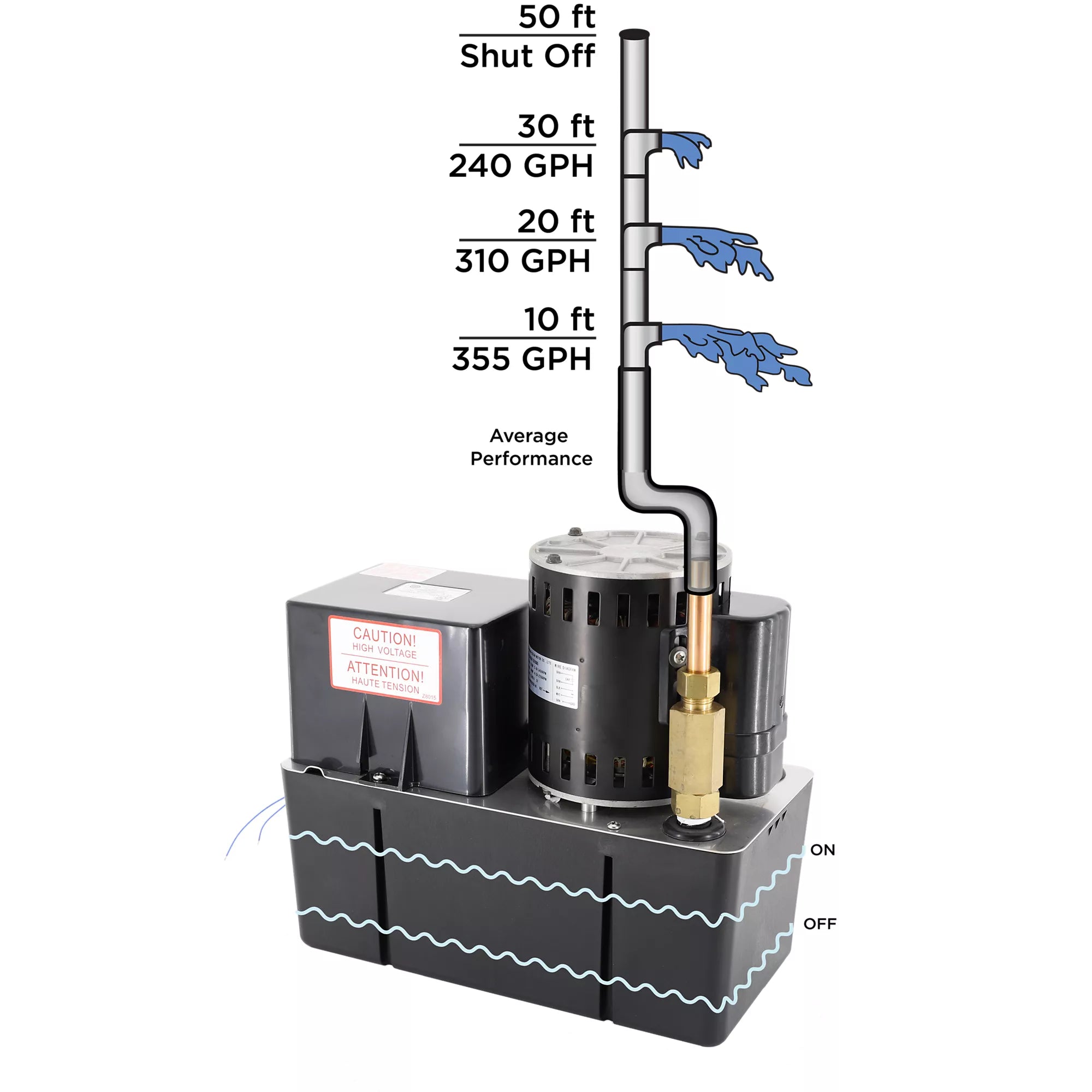

Shutoff/Max Lift (ft): 50 Ft
-
Flow GPH @ 1 ft: 420
-
Plenum Rated: No
-
Max Water Rating (°F): 212 F
-
Discharge Size: 1/2" Compression
-
Item Height (In): 10.1 In
-
Item Length (In): 12 In
-
Item Width (In): 6 In
-
Lift (Ft.): 50'
-
Line Voltage (60Hz): 480V
-
Tubing Connection Size: 3/8"
-
Amperage: 0.9
-
Wattage: 360
-
Flow at 1 FT Head: 486 GPH
-
Horse Power: 1/5
