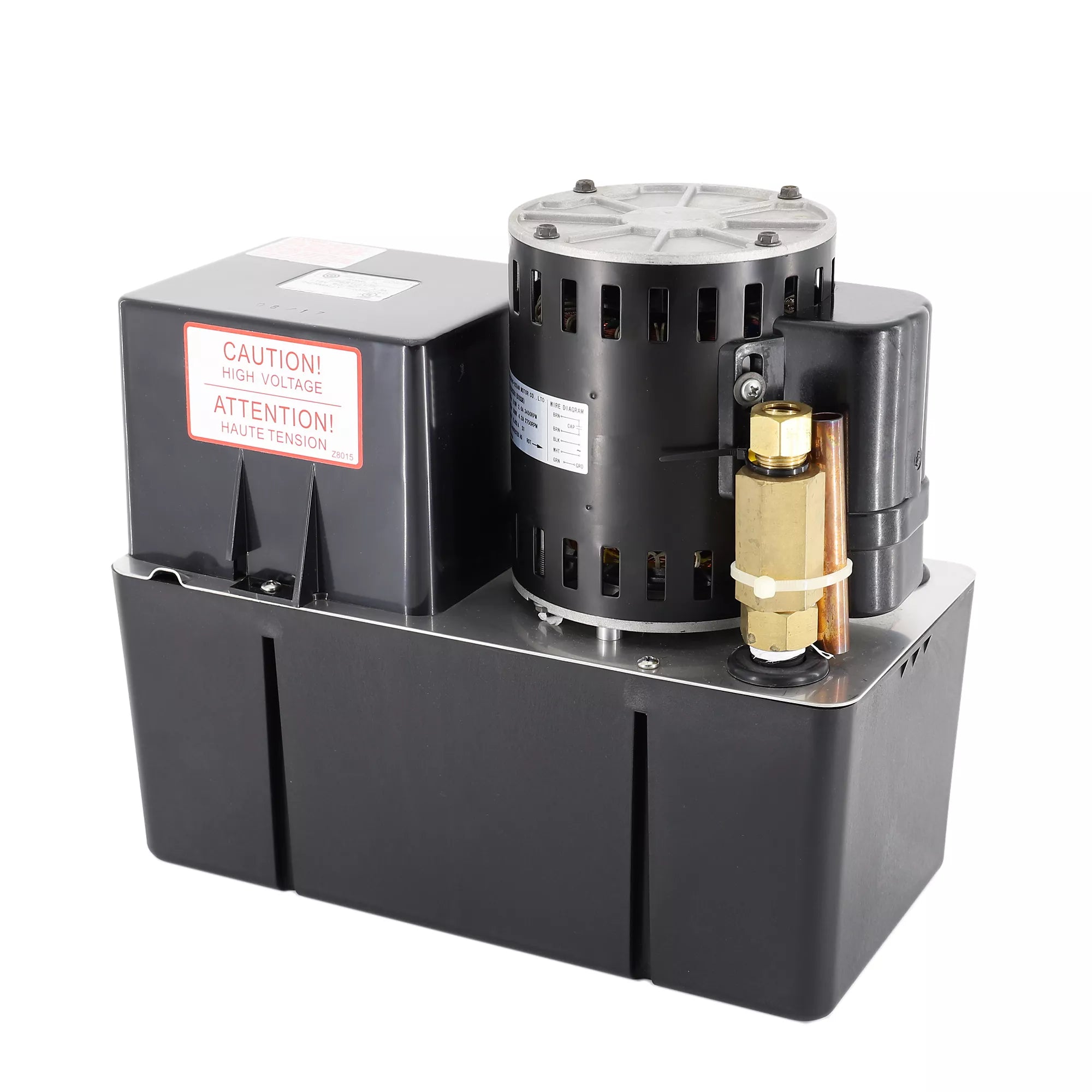

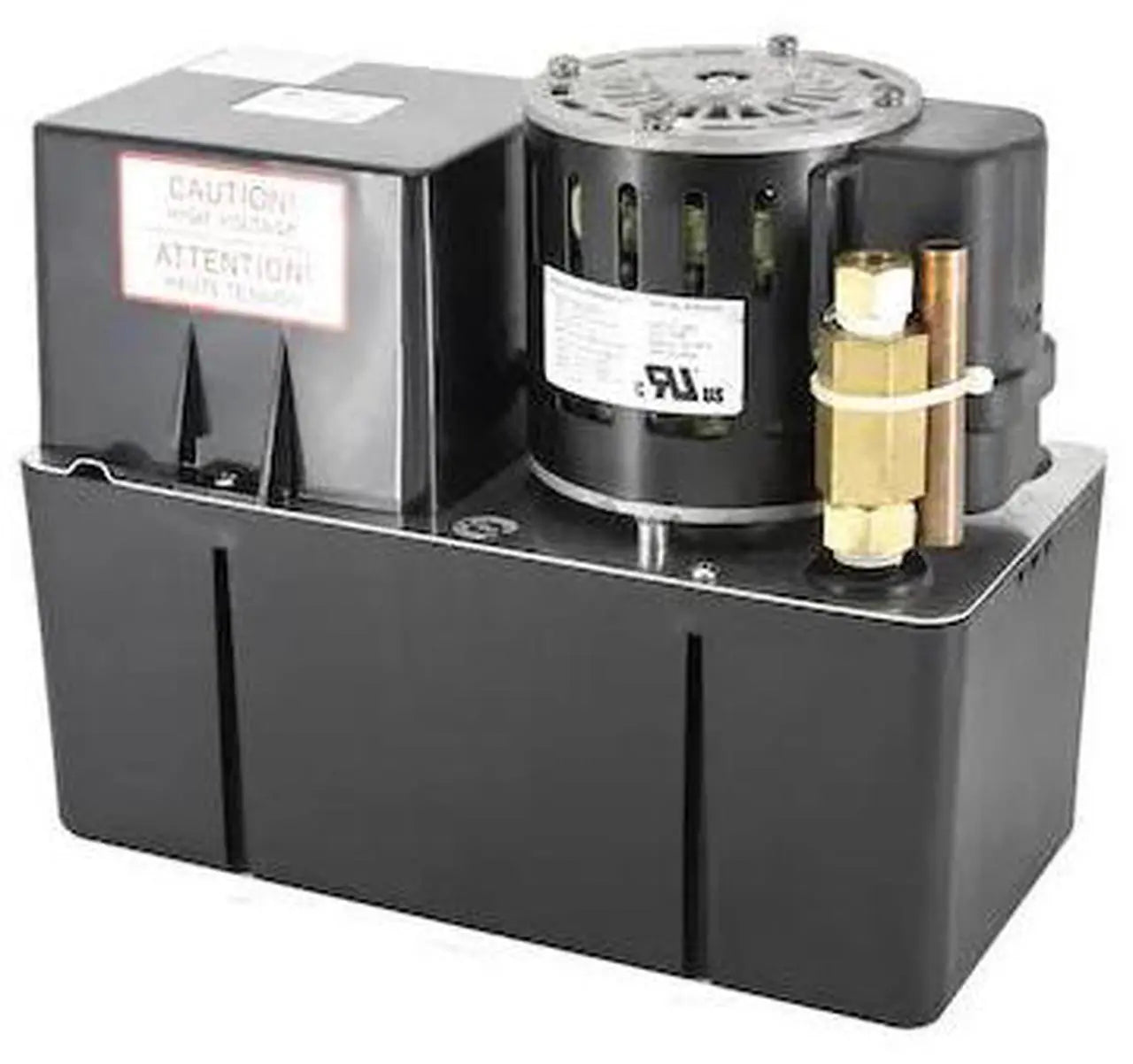

Beckett CB504UL Condensate Pump 460V

Product Description

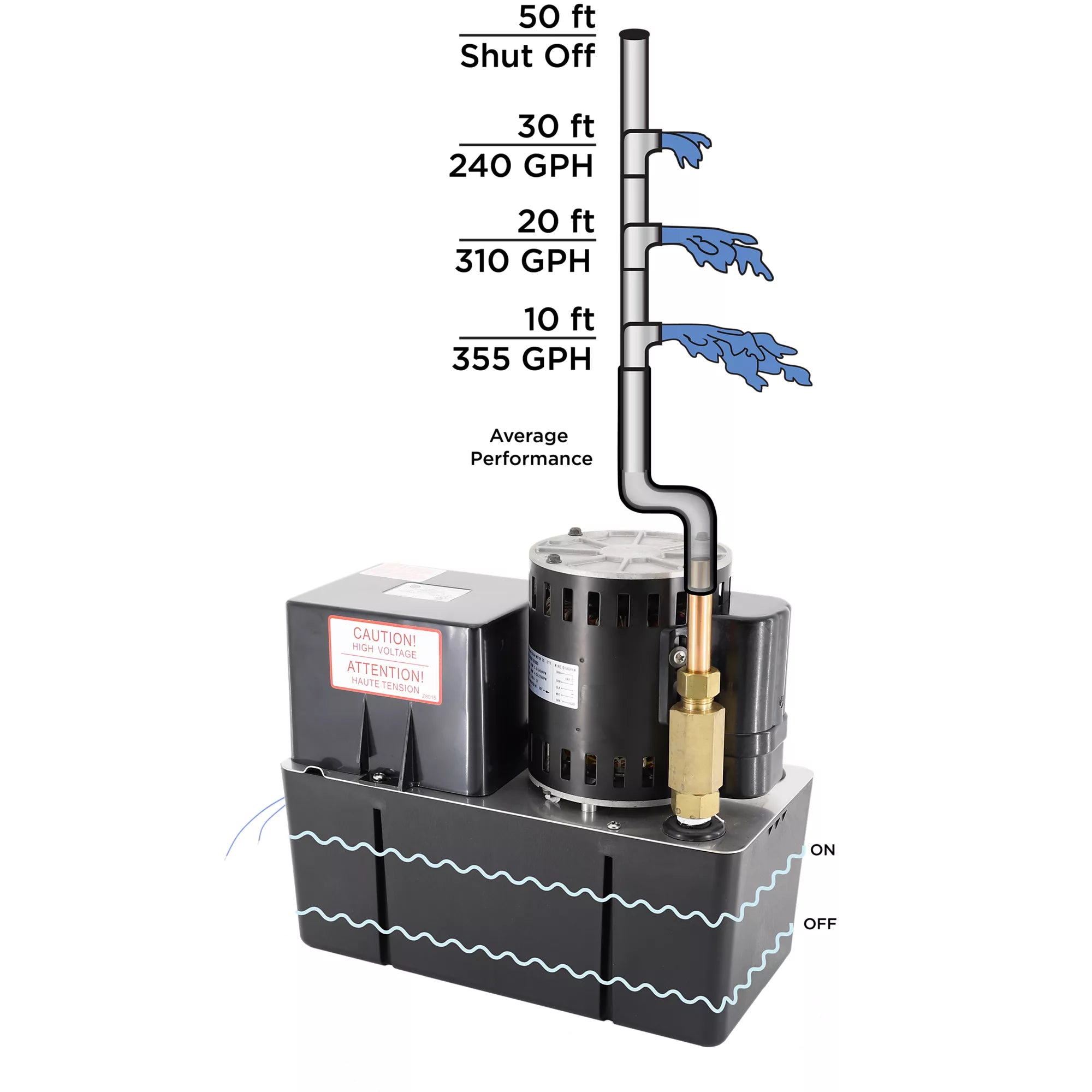

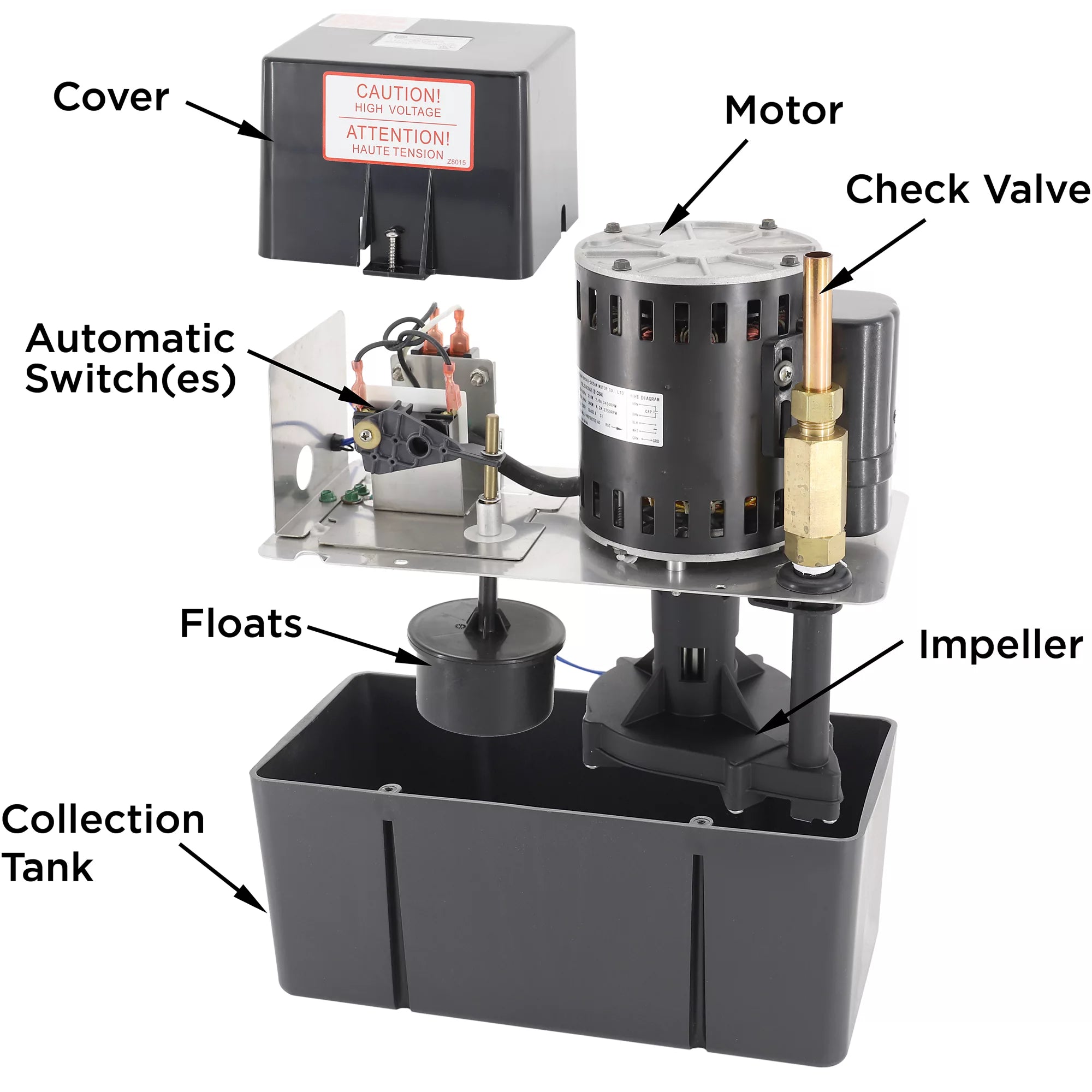

The BECKETT CB504UL condensate pump series is capable of handling heavy-duty industrial applications. The pump features a built-in safety switch, a one-gallon tank, a replaceable 3/8" O.D. check valve, and a pre-wired terminal block. Operates at 460V 60Hz and is UL/CUL listed. It has a max lift of 50' with a flow rate of 420 Gph @ 1'.

• Built in safety switch
• One gallon tank
• Pre-Wired Terminal Block

Product Highlights

This condensate pump is designed for efficient and quiet operation, ensuring overall product durability for demanding industrial environments.

Product Information

Standard Information

• Brand: BECKETT
• Manufacturer Part Number: CB504UL
• Country of Origin: CHN

Technical Specifications

• Brand: Beckett
• Check Valve: Yes
• Connection Size: 1/2"
• Cord Length: No Cord - Pre-Wired Terminal Block
• Cycle/Hertz: 60 Hz
• Discharge: 1/2"
• Float Material: Polypropylene
• Gallons Per Hour Of Water: 420
• Height: 10.125
• Length: 12
• Maximum Temperature: 140°F (60°C)
• Motor HP: 1/2 HP
• Safety Switch: Yes
• Shut Off (Ft.): 50'
• Tank Size: 1 Gallon
• UL Listed: Yes
• UL Recognized: Yes
• Voltage: 460 VAC
• Watts: 350
• Width: 6
• Shutoff Head (ft.): 50'
• Amps: 0.8
• Maximum Pressure (PSI): 21.6
