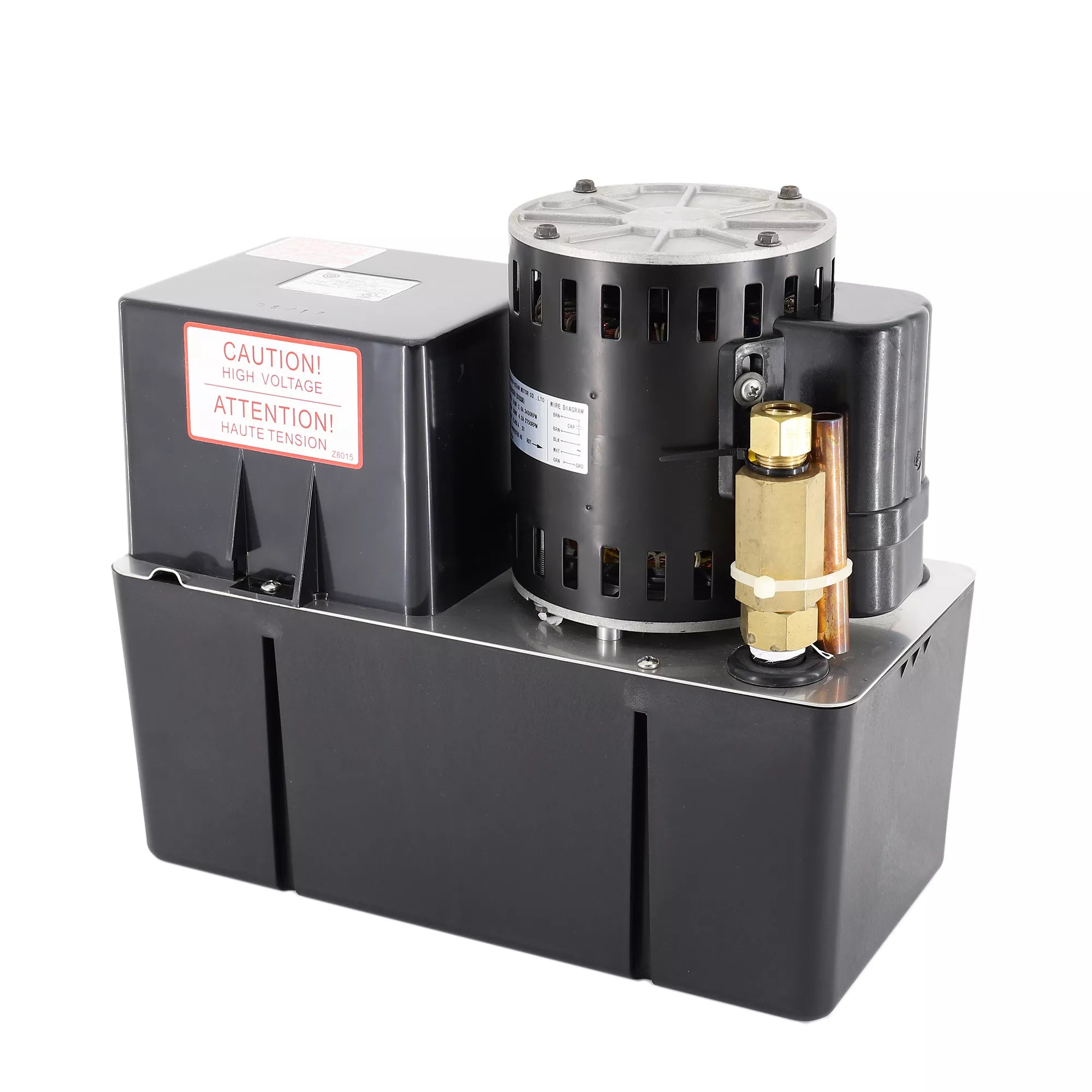

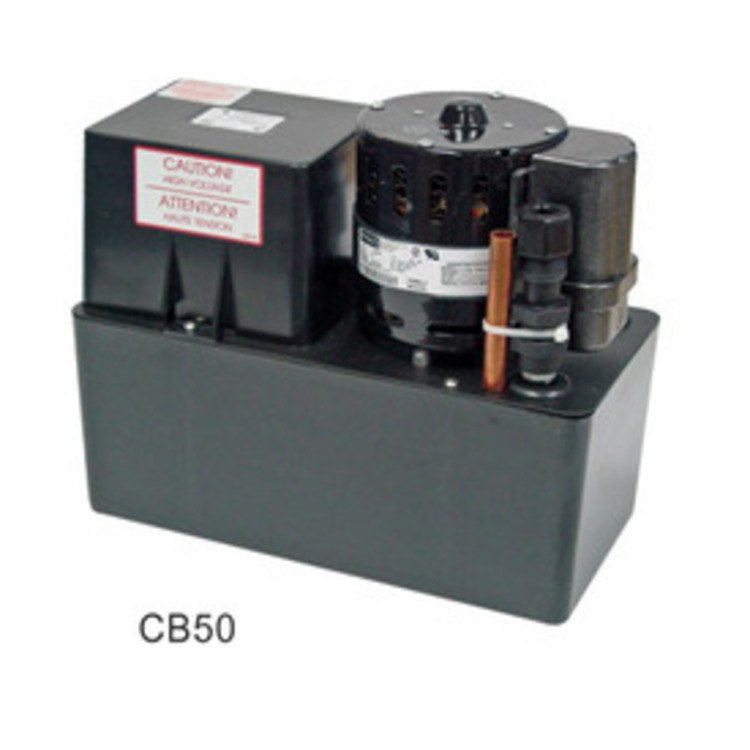

Beckett CB501ULHTS Condensate Pump, High Temp 115 VAC

Product Description

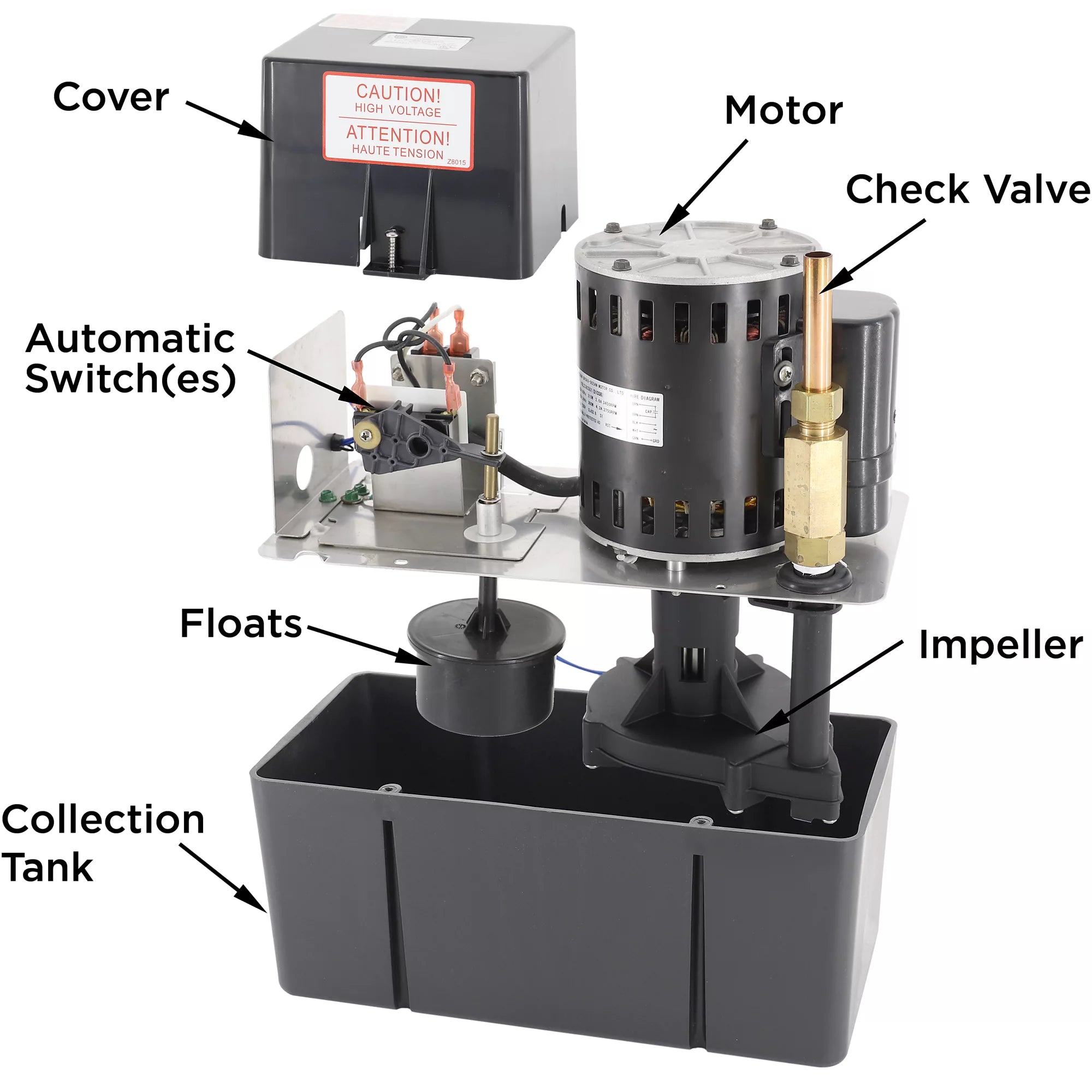

The BECKETT CB501ULHTS condensate pump is designed to meet tough job demands. This 115 VAC pump is engineered to be user-friendly with a modern design. It is UL/CUL listed and features a patented airflow design for quiet operation and reduced heat. The pump has a 1-gallon tank, a replaceable check valve, and a pre-wired terminal block.

• Rated 115V 60 Hz, UL/Cul Listed
• Max Lift is 17' with a flow rate of 120 Gph@ 1'
• Dual-Float Design Resulting In Increased Safety

Product Highlights

This condensate pump is ideal for high lift installations up to 50’ lift and can handle condensate up to 212 degrees F.

Product Information

Standard Information

• Brand: BECKETT
• Manufacturer Part Number: CB501ULHTS
• Country of Origin: CHN

Technical Specifications

• Brand: Beckett
• Check Valve: Yes
• Connection Size: 1/2"
• Cord Length: No Cord - Pre-Wired Terminal Block
• Cycle/Hertz: 60 Hz
• Discharge: 1/2"
• Float Material: Polypropylene
• Maximum Temperature: 212°F (100°C)
• Motor HP: 1/4 HP
• Prop 65: Yes
• Safety Switch: Yes
• Tank Size: 1 Gallon
• UL Listed: Yes
• UL Recognized: Yes
• Voltage: 115 VAC
• Watts: 300
• Country of Origin: CHN

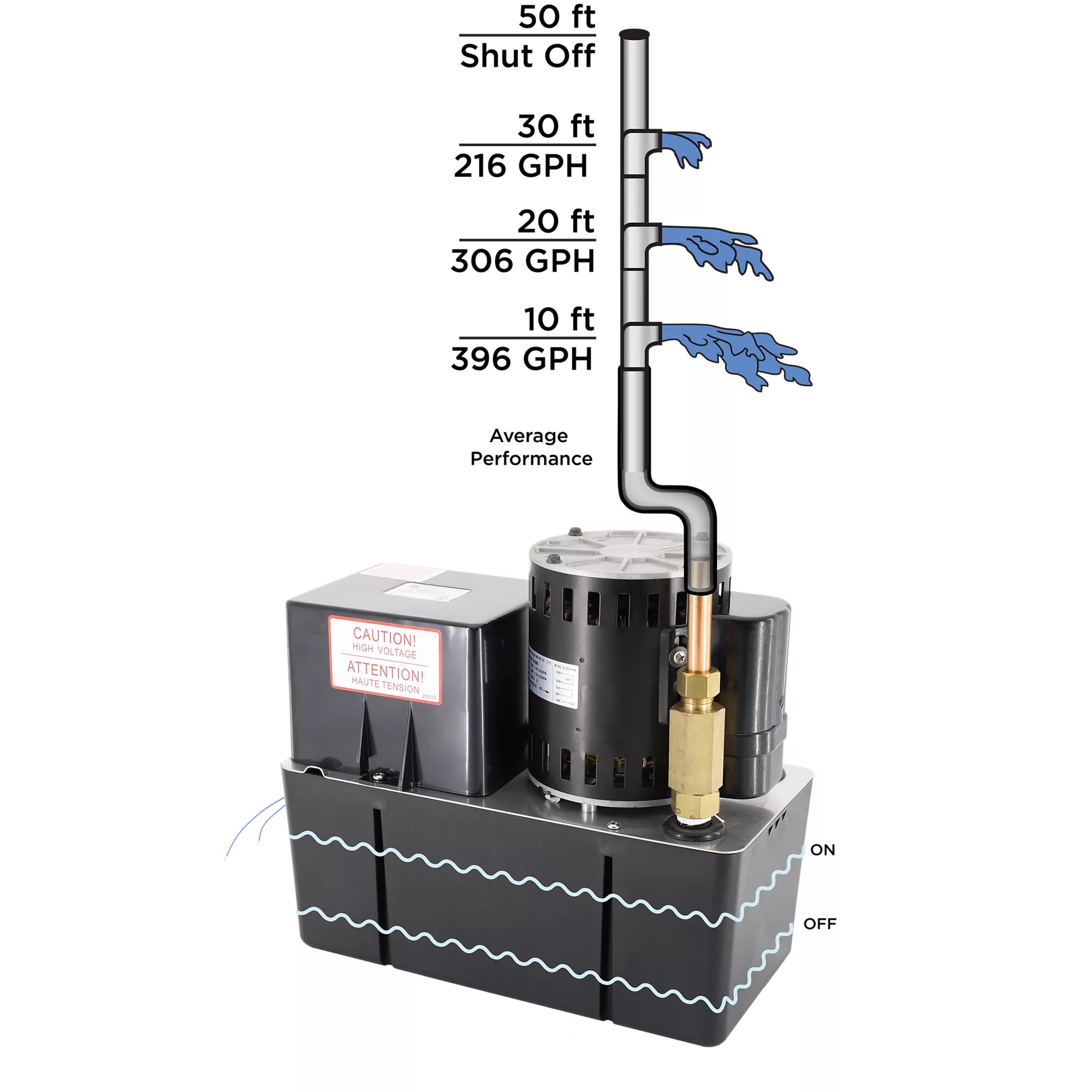

• Maximum Lift: 50'
• Application: Heavy Duty Industrial
• Tubing Connection Size: 1/2"
• Model: CB501ULHTS
• MPN: CB501ULHTS
• Discharge Head: 50FT
• Shutoff Head (ft.): 50'
• Flow at 1 FT Head: 476 GPH
• Amps: 4
• Wattage: 360
• Line Voltage (60Hz): 120V
