Baumer 10229710 IFFM 08N1701/O1L inductive proximity switch 2 mm

Product Description

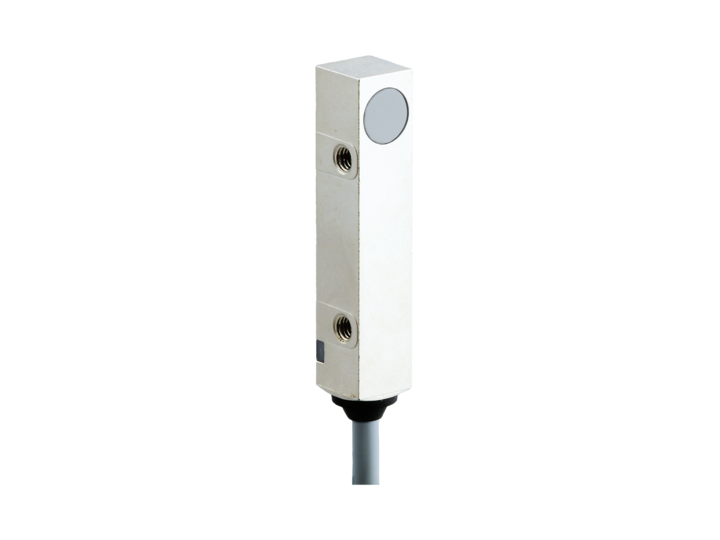

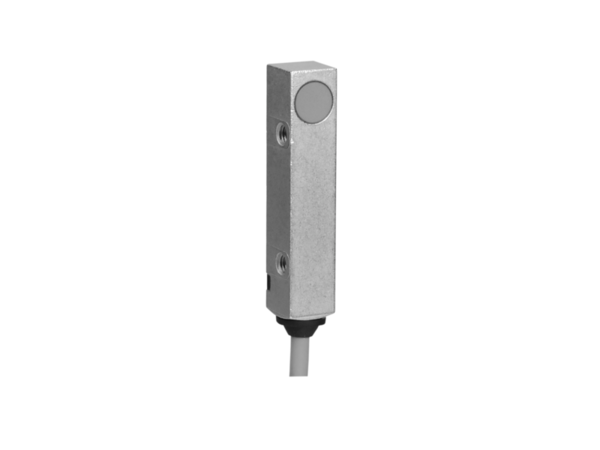

The BAUMER 10229710 IFFM 08N1701/O1L is a miniature inductive proximity switch with a 2 mm nominal sensing distance. This rectangular sensor features an NPN make function (NO) output and connects via a 2-meter cable. It is designed with short circuit and reverse polarity protection and is IP67 rated for protection against dust and immersion.

• Nominal sensing distance of 2 mm
• NPN make function (NO) output circuit
• IP 67 protection against dust and immersion

Product Highlights

Miniature inductive proximity switch with 2mm sensing distance, NPN output, and IP67 protection.

Product Information

Standard Information

• Brand: BAUMER
• Manufacturer Part Number: 10229710

Technical Specifications

• Mounting type: Flush
• Nominal sensing distance Sn: 2 mm
• Hysteresis: 3 to 20 % of Sr
• Output indicator: LED red
• Switching frequency: 5 kHz
• Voltage supply range +Vs: 6 to 36 VDC
• Current consumption max. (no load): 12 mA
• Output circuit: NPN make function (NO)
• Voltage drop Vd: <2 VDC
• Output current: 200 mA
• Short circuit protection: Yes
• Reverse polarity protection: Yes
• Design: Rectangular
• Material (sensing face): PBT
• Housing material: Die-cast zinc nickel plated
• Dimension: 8 mm
• Housing length: 38.5 mm
• Connection types: Cable, L=2 m
• Operating temperature: -25 to +75 00b0C
• Protection class: IP 67
• Primary brand: Baumer
• Main function: Sensor (Proximity; inductive)
• Product series / family name: Inductive proximity switches
• Sub-range name: IFFM series
• Functions: Miniature inductive proximity sensor / switch
• Supply voltage (DC): 10-30Vdc (12Vdc - 24Vdc nom.)
• Sampling rate: 5kHz / 5000 Hz
• Shape: Rectangular body
• Diameter: 8mm sensing area
• Connection type: Pre-wired with 2m cable terminated with bare end flying leads
• Protection functions: Short-circuit protection, reverse polarity protection
• Operating mode: NO (Normally Open; make function)
• Digital outputs: 1 x digital output (NPN; 200mA)
• Degree of protection: IP67
• Dimensions: L38.5mm
• Material: die-cast zinc nickel plated (housing), PBT (sensing face)
• Ambient air temperature for operation: -25...+75 00b0C
• Visual position indicator: red LED (output)
• Current consumption: 12mA / 0.012 A
• Order code / Manufacturer SKU: IFFM 08N1701/O1L
• Manufacturer product status: Commercialized
• Standards Met: CE Certified, cULus Listed
