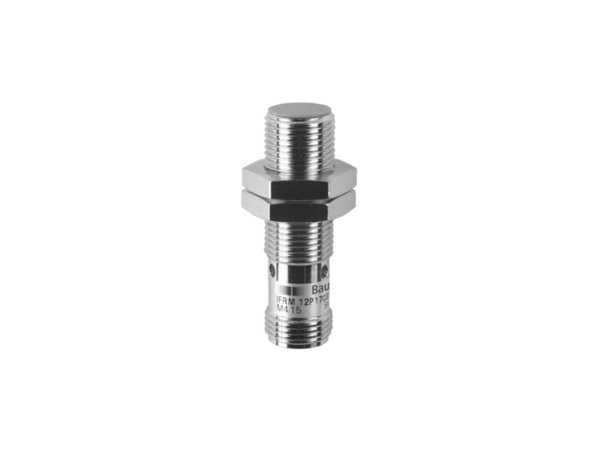

Baumer 10229703 Inductive Proximity Switch 4mm IFRM 12P3703/S14L

Brand: BAUMER
SKU: 10229703
Availability: In Stock

Ships same day if ordered by 12 pm
$165.47
$165.47
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The BAUMER 10229703 is an inductive proximity switch from the IFRM series, designed for flush mounting. This sensor has a nominal sensing distance of 4mm and is pre-equipped with an M12 connector. It operates on a supply voltage of 10-30VDC and features a digital PNP output with a normally closed (NC) break function.

  • Nominal sensing distance of 4mm
  • Digital PNP output (200mA) with NC function
  • Cylindrical threaded body (M12)

Product Highlights

The Baumer 10229703 inductive proximity switch is ideal for use in automation and industrial applications requiring precise and reliable detection.

Product Information

Standard Information

  • Brand: BAUMER
  • Manufacturer Part Number: 10229703
Technical Specifications
Primary brand
Baumer
Main function
Sensor (Proximity; inductive)
Product series / family name
Inductive proximity switches
Sub-range name
IFRM series
Functions
Inductive proximity switch
Supply voltage (DC)
10-30Vdc (12Vdc - 24Vdc nom.)
Sensing distance
4mm (nominal sensing distance; Sn)
Sampling rate
2kHz / 2000 Hz
Shape
Cylindrical threaded body
Thread size
M12
Connection type
Pre-equipped with M12 connector
Protection functions
Short-circuit protection, reverse polarity protection
Mounting mode
Flush
Operating mode
NC (Normally Closed; break function)
Digital outputs
1 x digital output (PNP; 200mA)
Degree of protection
IP67
Dimensions
L40.4mm
Material
Nickel Plated Brass
Ambient air temperature for operation
-25...+75
Hysteresis
3 - 20% of Sr
Output Indicator
3 port LED red
Switching Frequency
2 kHz
Voltage Supply Range +Vs
10 - 30 VDC
Current Consumption Max. (no load)
10 mA
Voltage Drop
< 2 VDC
Output Current
< 200 mA
Material (sensing face)
PBT
Housing Material
Nickel Plated Brass
Alternate Part Number
10229703
Connection
Quick Disconnect
Normally Open/Closed
Normally Closed (NC)
NPN or PNP
PNP (Source)
All - Specific Ratings
IP67
Series
IFRM Series
Shielded/Unshielded
Shielded - Flush
Size
12mm
Type of Sensor
Inductive
All - Voltage
10-30VDC
Warranty
3 Years
Nominal Sensing Distance Sn
4 mm
Mounting Type
Flush
Output indicator
3 port LED red
Switching frequency
< 2 kHz
Voltage supply range +Vs
10 - 30 VDC
Current consumption max. (no load)
10 mA
Voltage drop Vd
<2 VDC
Output current
< 200 mA
Housing material
Nickel Plated Brass
Order code / Manufacturer SKU
IFRM 12P3703/S14L
Manufacturer product status
Commercialized
