Baum America 130720 3 x 2 150 FS PTFE Lined Conc Reducer

Product Description

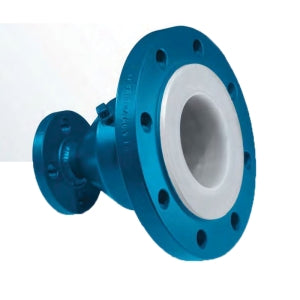

The BAUM AMERICA 130720 concentric flanged reducer provides a universal solution for changes in nominal pipe size. The reducers are lined with PTFE, PFA, or PP depending on the nominal width. It is made of forged steel with flanged connection type and conforms to industry standards ISO 9001:2008 and ASME B16.5.

• Earthing stud/lug
• Vent hole extension
• Lined with PTFE, PFA or PP

Product Highlights

The BAUM AMERICA 130720 reducer is suitable for various applications requiring changes in pipe size, offering reliable performance and adherence to industry standards.

Product Information

Standard Information

• Brand: BAUM AMERICA
• Manufacturer Part Number: 130720

Technical Specifications

• Item Name: Concentric Reducer
• Type: PTFE Lined
• Pressure Class: Class 150
• Nominal Size: 3 X 2 IN
• Connection Type: Flanged
• Material: Forged Steel
• Material Standard: ASTM A234 Grade WPB, ASTM D638, ASTM F1545-15a
• Length: 5.98 IN
• Maximum Pressure: 250 PSIG
• Temperature Rating: 100 DEG F
• Industry Standards: ISO 9001:2008 Certified, ASME B16.5
