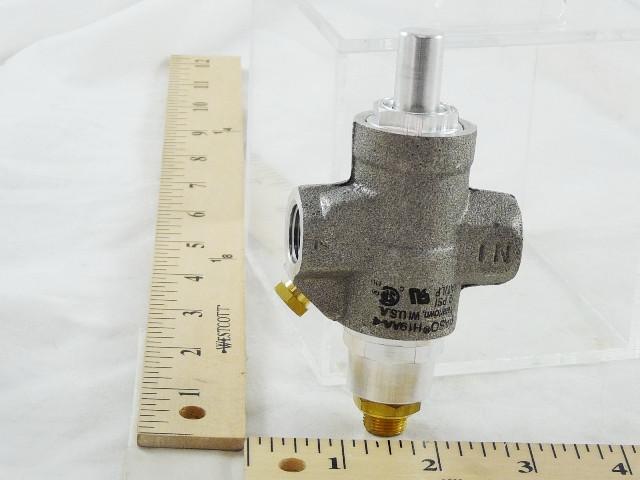

BASO H19AA-4 Pilot Gas Valve 3/8 Inch with Flow Interrupter

Product Description

The BASO Gas Products H19AA-4 is a 3/8-inch pilot gas valve equipped with a flow interrupter, ideal for a variety of industrial applications. Constructed from robust materials, this valve ensures reliable operation and durability.

• 3/8-inch NPT inlet and outlet for easy integration into existing systems.
• Incorporates a flow interrupter to enhance safety by preventing gas flow anomalies.
• Designed for applications such as gas welding and cutting.

Product Highlights

This gas valve is notably designed for both natural and LP gas configurations and can withstand pressures up to 0.5 psi. Its application is broad, ranging from commercial cooking appliances to industrial heating equipment.

Product Information

Standard Information

• Brand: BASO
• Model: H19AA-4

Technical Specifications

• Type: Automatic Pilot, Continuous
• Capacity (BTU): 140000
• Inlet/Outlet Size: 3/8 inch NPT
• Max. Inlet Pressure: 1/2 psi
• Ambient Temp. Range: 32 Degrees to 150 Degrees F
• Ignition Type: Continuous
• Standards: ANSI Z21.20, CAN1-6.4, ANSI Z21.21, CSA 6.5, ANSI Z21.78, CSA 6.20, UL Standard 372
