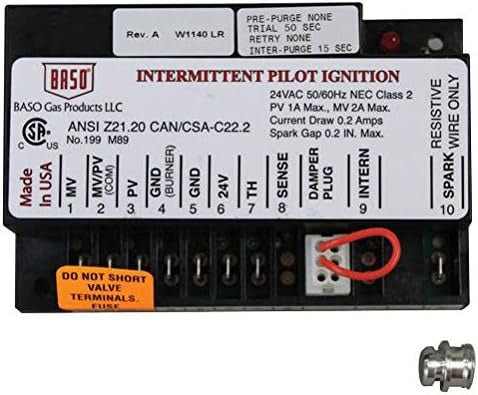

Baso C634AFA-1C Intermittent Pilot Ignition Control 24V (50 sec Trial)

Product Description

The Baso C634AFA-1C is a 24V microprocessor-based intermittent pilot ignition control that provides ignition sequencing, flame monitoring, and safety shutoff for gas-fired appliances. It features a 50 second trial for ignition, a 15 second inter-purge, and an integrated diagnostic LED. Rated pilot valve 1 A and main valve 2 A, it supports a maximum spark gap of 0.2 in and draws 0.2 A.

• Microprocessor-based ignition sequencing with diagnostic LED and safety shutoff
• Timing: 50 second trial for ignition, 15 second inter-purge; no retry or pre-purge
• Valve ratings: pilot valve 1 A max, main valve 2 A max; current draw 0.2 A; max spark gap 0.2 in

Product Highlights

24V intermittent pilot ignition control for gas-fired boilers, furnaces, and heating appliances with rollout switch and diagnostic LED

Product Information

Standard Information

• Brand: BASO
• Manufacturer Part Number: C634AFA-1C
